Description
Core Product Summary
The UNIOP ETT-VGA-0045 is an industrial human-machine interface (HMI) touch screen panel designed for operator control, data visualization, and plant-floor monitoring. Part of the UniOP ETT-VGA series, this operator terminal combines a clear visual display with robust interactive capabilities tailored for automation machinery and process control environments.
Built around a 10.4-inch TFT LCD active-matrix screen with VGA resolution, the unit supports structured text display layout and graphical elements. It features an analog-resistive single-touch interface, onboard processing architecture with user flash memory, and integrated serial alongside Ethernet communication ports. Engineered for flush panel integration, it provides an IP65 rated front face to withstand demanding industrial washdown and ambient conditions.
Key Technical Specifications
| Technical Parameter | Specification |
| Product Type / Series | Operator Panel / UniOP ETT-VGA Series |
| Display Type | 10.4-inch TFT LCD (CCFL backlight) |
| Resolution | 640 × 480 pixels (VGA) |
| Touch Screen | Analog-resistive, single-touch |
| Processor & Memory | 32-bit RISC CPU, 32 MB user Flash memory |
| Communication Interfaces | RS-232, RS-422, RS-485, Ethernet 10/100 Base-T |
| Power Supply Requirement | 18 – 30 VDC |
| Enclosure Protection | IP65 (front), IP20 (rear) |
| Operating Temperature Range | 0 °C to +50 °C |
| Dimensions (Front Panel) | 311 mm × 220 mm |
| Panel Cut-out | 292 mm × 202 mm |
| Weight | Approx. 2.7 kg |

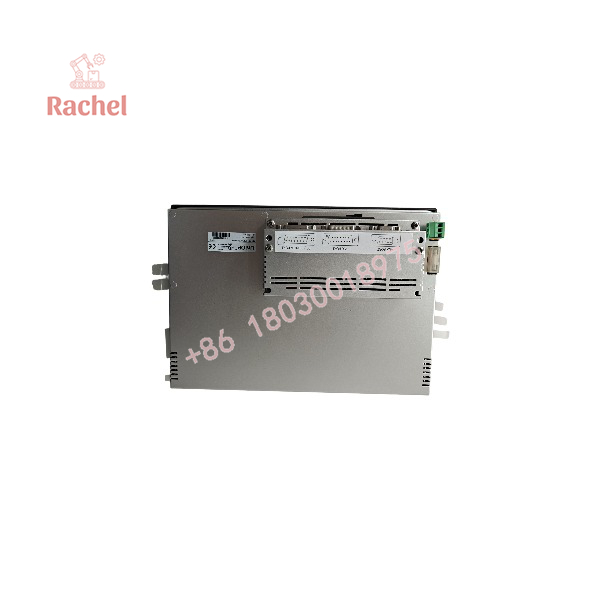

ETT-VGA-0045

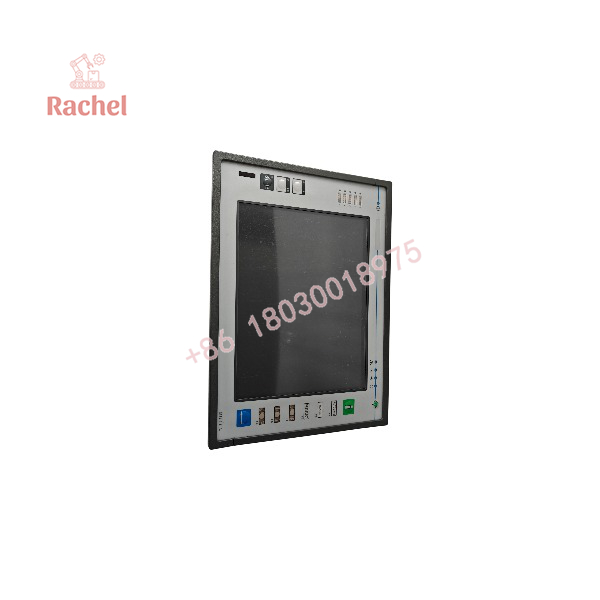

ETT-VGA-0045
Engineering Selection Highlights
- 10.4-Inch VGA Display: Provides a 640 × 480 pixel active-matrix TFT layout, enabling organized presentation of control graphics, alarm pages, and process parameters.
- Resistive Touch Interface: Features an analog-resistive touch surface suitable for operators wearing industrial gloves.
- Versatile Communication Ports: Includes multi-standard serial ports (RS-232, RS-422, RS-485) and an Ethernet 10/100 Base-T port for controller connectivity and remote supervision.
- Standardized Power Input: Operates on standard 18–30 VDC industrial control power supplies.
- IP65 Front Sealing: Protects internal components against dust and water jets from the front when properly flush-mounted into a cabinet door or console.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Configuration Software | UniOP Designer tool chain | Used for creating, editing, and downloading HMI project files. |
| Enclosure Mounting | Flush panel cut-out of 292 × 202 mm | Requires adequate clearance behind the panel for wiring and connectors. |
| Power Supply | 18 to 30 VDC source | Must match panel voltage requirements and isolation guidelines. |
| Network Integration | Ethernet 10/100 Base-T or serial links | Connects to PLCs, drives, and higher-level supervisory networks. |
Dimensions, Mounting & Connection Notes
- Physical Dimensions: Front frame measures 311 mm in width by 220 mm in height.
- Panel Cut-Out: Requires a precise opening of 292 mm × 202 mm with a maximum panel thickness of 5 mm.
- Mounting Protection: Front face achieves IP65 protection when secured tightly against a flat enclosure surface using the provided mounting brackets. Rear terminals maintain an IP20 rating.
- Weight: Approximately 2.7 kg, requiring sturdy panel construction to prevent door sagging.
Detailed Product Overview
The UNIOP ETT-VGA-0045 is engineered to serve as a dependable operator interface terminal for industrial equipment. Utilizing a bright 10.4-inch TFT color display with a 640 × 480 pixel resolution, the unit offers sharp graphical layouts that allow operators to monitor machine states, adjust setpoints, and interact with complex automation routines efficiently.
System communication is supported through a combination of serial configurations (RS-232, RS-422, RS-485) and an Ethernet interface, allowing flexible connectivity across legacy and modern controller architectures. The onboard 32-bit RISC processing unit and user flash memory manage screen transitions, recipe data storage, and localized alarm handling without requiring excessive external hardware. Designed for panel-mount integration with an IP65-sealed front bezel, the hardware matches standard industrial enclosure requirements where operator control panels are exposed to typical factory conditions.
Applications & System Role
The UNIOP ETT-VGA-0045 functions as a visualization and command node within industrial automation architectures. It interfaces directly with programmable logic controllers (PLCs), motion controllers, and automation systems via serial or Ethernet links to present real-time operational data, handle user inputs, and manage alarm logs. Typical deployment environments include discrete machine automation, packaging lines, material handling systems, and general factory floor control stations.
FAQ
- What is the UNIOP ETT-VGA-0045?
It is a 10.4-inch industrial touch screen human-machine interface (HMI) panel designed for plant-floor visualization and control.
- What display technology does it use?
It features a 10.4-inch active-matrix TFT LCD with a VGA resolution of 640 × 480 pixels and a CCFL backlight.
- What type of touch screen is integrated?
It uses an analog-resistive single-touch panel.
- What communication options are available?
The unit supports RS-232, RS-422, RS-485 serial communication, and an Ethernet 10/100 Base-T port.
- What is the power supply requirement?
It operates on a DC power supply ranging from 18 to 30 VDC.
- What are the panel cut-out dimensions?
The required mounting cut-out is 292 mm × 202 mm.
