Vibro-Meter 200-566-000-112 VM600 IOCN Communications Interface Card

Description

Product Introduction

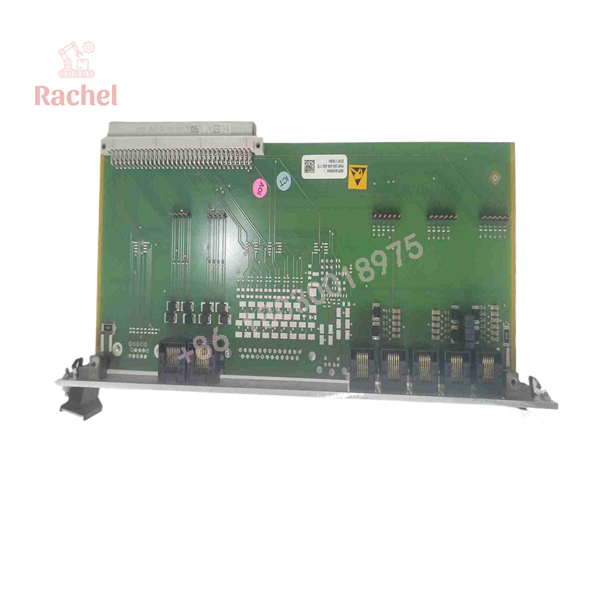

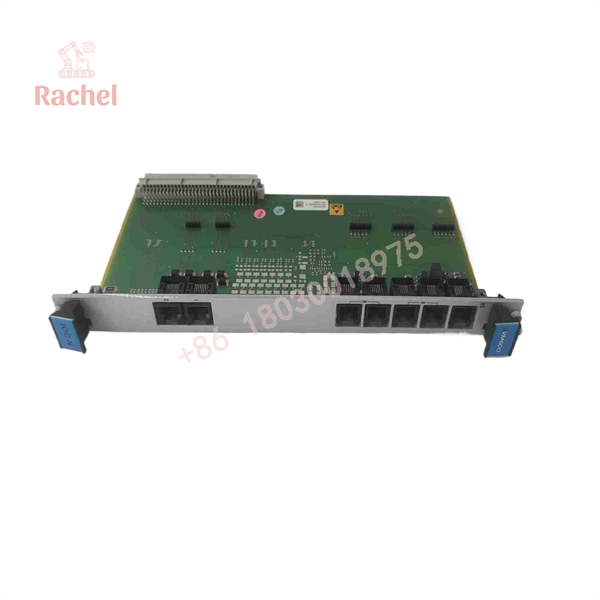

The Meggitt Vibro-Meter 200-566-000-112 is the rear Input/Output Conditioning (IOCN) card engineered specifically for the VM600 machinery protection rack system. Installed in the rear slot directly behind a front-mount CPUM communications card, this module physically terminates plant network cables and serial links, bridging the rack’s VMEbus data to your supervisory control network.

Unlike basic serial cards, the 200-566-000-112 features isolated industrial communication ports to prevent ground loop noise from corrupting high-speed vibration data. Replacing an aging or damaged 200-566-000-112 card stabilizes Modbus TCP/RTU communication to your plant DCS or SCADA, preventing blind spots in your machinery health monitoring.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 3 AM during a turbine startup sequence. Your DCS throws a “VM600 Rack Communications Lost” alarm, leaving operators completely blind to shaft displacement numbers. You trace the failure to a blown serial transceiver IC on the rear 200-566-000-112 IOCN card, caused by a ground potential shift on the Modbus line. The machinery protection logic is still running in the rack, but without networking, you cannot verify vibration baselines. Hot-swapping in a pre-tested 200-566-000-112 module restores full Ethernet telemetry to the control room in under 15 minutes.

Typical Applications:

• Power Generation Facilities – Passes real-time turbine vibration metrics over Modbus TCP from VM600 racks to the main plant DCS.
• Petrochemical Refineries – Integrates compressor dynamic data with condition monitoring software (VibroSight) across corporate LANs.
• Offshore Platforms – Connects isolated VM600 racks on FPSOs to central control systems via noise-immune RS-485 serial loops.

200-566-000-112

200-566-000-112

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Meggitt VM600 ABE040 test racks paired with live CPUM cards. Every surplus or reconditioned 200-566-000-112 card goes through our strict 5-stage SOP:

1. Inbound Visual & Connector Inspection: Microscopic check of backplane edge connectors, RJ45 physical ports, and terminal pins for bent connectors or corrosion.
2. Backplane Insertion & Power-On: Insertion into the rear slot of a VM600 test chassis to verify power rail handshake with the front CPUM module.
3. Ethernet Loop & Packet Stress Testing: Continuous 24-hour ping and data packet throughput sweep across both RJ45 ports to confirm zero dropped packets.
4. Serial Communication Verification: Testing RS-232 and RS-485 ports using Modbus polling commands to verify transceiver chip stability.
5. ESD-Safe Decontamination & Packaging: Cleaned, static-treated, wrapped in static-shielding bags, and secured in custom foam shipping containers.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Verify Match with Front-Slot CPUM Board: The 200-566-000-112 rear IOCN card must align perfectly with the front CPUM card in the exact same slot. Sliding an IOCN card into a slot occupied by an MPC4 protection card will bend backplane pins and trip a system hardware fault.

❗ Check DIP Switches and Termination Jumpers: Before screwing down the card handles, inspect the onboard termination jumpers for RS-485 communication. If this card is the last node on an RS-485 daisy-chain, ensure the 120-ohm termination resistor jumper is set to ‘ENABLED’. Missing termination causes signal reflections that ruin serial comms.

⚠️ Do NOT Strain RJ45 and Serial Cables: Heavy, un-supported serial cables connected to the rear IOCN card can pull on the PCB connectors, cracking surface-mount solder pads over time. Always tie off network cables to the rack cable management bar.

Frequently Asked Questions (FAQ)

Q: Is the Meggitt Vibro-Meter 200-566-000-112 hot-swappable? A: Yes, in a live VM600 rack, the IOCN rear card can be hot-swapped without interrupting the front protection modules (like the MPC4). However, network data streaming to your DCS will temporarily drop during the swap.

Q: Does the 200-566-000-112 require IP address configuration? A: The IOCN card itself acts as the physical interface. IP address settings, Modbus slave IDs, and subnet masks are stored in the memory of the paired front CPUM module via Vibro-Meter MPS software.

Q: What is the difference between an IOCN card and an IOC4T card? A: The IOCN (200-566-000-112) is designed specifically for networking and communication cards (CPUM). The IOC4T is an I/O card designed to handle sensor inputs and trip relays for MPC4 vibration protection cards.

Q: What warranty coverage comes with this module? A: We back every 200-566-000-112 card with a full 12-month operational warranty. If the unit fails bench testing or drops network communication within 365 days, we replace it or refund your purchase—no hassle.

Q: Why buy surplus replacement modules over ordering directly from the OEM? A: OEM factory lead times for specialized VM600 communication hardware can span 16 to 24 weeks. Sourcing pre-tested surplus original components gets your monitoring network back online in days at a fraction of the list price.
