Watlow Anafaze CLS208 Controller Multi-Loop Process Module

Description

Product Introduction & Engineering Value

When multi-zone heating processes begin to drift because older panel instruments lose their calibration memory, control loops quickly fall out of sync. The Watlow Anafaze CLS208 multi-loop controller eliminates this vulnerability by consolidating eight discrete temperature control channels into a single, reliable 1/8 DIN chassis.

Engineered with advanced auto-tune PID algorithms and flexible sensor input architecture, this unit maintains tight thermal boundaries across demanding industrial processes. Plant engineers rely on its stable multi-channel logic to prevent batch spoilage and maintain consistent thermal profiles without cluttering the control cabinet.

Technical Specifications

• Loop Capacity: Up to 8 independent PID control loops
• Sensor Input Support: Thermocouples (Types J, K, T, E, R, S, B), 100-ohm RTDs, and linear voltage/current inputs
• Control Modes: PID with auto-tune, manual control, ramp/soak profiling, and cascade capabilities
• Communication Interfaces: Dual RS-232 and RS-485 serial ports supporting Modbus RTU and ANSI protocols
• Digital I/O: Configurable alarm and event output relays for interlock switching
• Display Interface: High-contrast Vacuum Fluorescent Display (VFD) paired with an 8-key tactile membrane keypad
• Power Requirement: Low-voltage DC auxiliary power input or standard external power block
• Operating Temperature: 0°C to 55°C (32°F to 131°F) industrial ambient range

Field Application & The “Trench” Experience

During an intensive production run at a custom composite bonding facility, a multi-zone heated press went offline when its primary thermal controller suffered an internal power supply failure. Halting the cure cycle meant losing an entire batch of high-value aerospace panels. Maintenance bypassed a multi-week OEM backorder by pulling a verified surplus Watlow Anafaze CLS208 from emergency stock, uploading the recipe via the RS-485 interface, and bringing all eight zones back into strict temperature regulation before thermal relaxation could ruin the layup.

Specific Niche Application Scenarios:

• Multi-Zone Semiconductor Tube Furnaces: Controlling precise thermal gradients for wafer diffusion processes.
• Plastics Extrusion Barrel Heaters: Managing heating and cooling zones to stabilize polymer melt viscosity.
• Industrial Laminating Presses: Executing multi-stage ramp-and-soak thermal profiles for uniform adhesive curing.

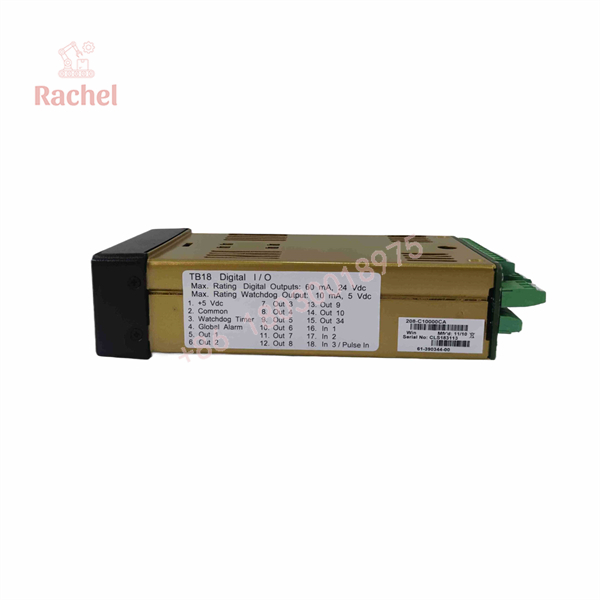

CLS208

CLS208

Transparency SOP: QA & Testing

1. VFD & Keypad Inspection: Verify display clarity, uniform illumination, and tactile feedback across all 8 front-panel tactile keys.
2. Terminal & Isolation Check: Measure resistance and common-mode isolation across signal input terminals and power rails using a calibrated multimeter.
3. Multi-Channel Thermal Calibration: Connect the unit to a precision calibrator, injecting exact millivolt and resistance signals across channels 1 through 8 to verify linearization accuracy.
4. Serial Communication Audit: Run continuous Modbus RTU polling loops over the RS-232 and RS-485 ports for 24 hours to confirm error-free packet transmission.
5. Thermal Soak Chamber Run: Operate the hardware inside an active 45°C environmental chamber to screen out infant mortality faults.

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: Always download and back up your active configuration file and ramp/soak profiles before swapping an older Anafaze unit. Firmware revisions between legacy revisions can occasionally shift register maps if parameters are imported blindly.

Warning: Never run low-level thermocouple or RTD sensor wires through the same conduit or wire tray as high-voltage AC power cables. Induced electromagnetic interference (EMI) will corrupt internal analog-to-digital conversion, causing erratic temperature spikes on the display.

Dynamic FAQ

1. Is this Watlow Anafaze CLS208 unit brand new or surplus? We supply certified New Surplus and fully bench-tested refurbished hardware, backed by complete historical traceability.
2. What warranty covers this controller? Every CLS208 unit is backed by our standard 12-month replacement warranty covering parts and functional performance.
3. Can this controller integrate with a supervisory SCADA system? Yes, the unit features built-in RS-232 and RS-485 communication ports supporting Modbus RTU and ANSI protocols for seamless PLC or DCS integration.
4. Does the controller require a battery to retain memory? No, user parameters, configuration settings, and profiles are stored in non-volatile memory that does not depend on internal backup batteries.
5. How do I configure the sensor inputs for my specific application? Sensor types are easily selected and configured through the front-panel menu system or configuration software, provided the hardware input board matches your wiring setup.
