WAUKESHA E740401 | Detonation Sensing Module for Gas Engines

Description

Core Product Summary (Brand / Model / Key Attributes)

The WAUKESHA E740401 is a Detonation Sensing Module (DSM) for Waukesha Custom Engine Control (CEC) systems on spark-ignited gas engines. It processes knock/detonation-related signals so the engine-control and ignition system can respond to abnormal combustion conditions.

The module is part of a CEC detonation-monitoring arrangement that interfaces with a compatible CEC ignition module through the ignition module’s 14-pin connector. The associated CEC system is designed to protect Waukesha spark-ignited gas engines from detonation-related damage. For replacement, the exact E740401 part number, installed CEC configuration, detonation-sensor wiring, and ignition-module interface should be matched before installation.

Key Technical Specifications

Detailed Product Overview

The WAUKESHA E740401 is the detonation sensing module in a Waukesha Custom Engine Control detonation-monitoring system. Its role is to evaluate signals associated with combustion knock and provide the engine-control/ignition arrangement with information needed to address abnormal combustion.

In the documented CEC architecture, the DSM connects to the CEC Ignition Module through the ignition module’s 14-pin connector. The two systems work together to provide detonation protection for Waukesha spark-ignited gas engines. This makes the E740401 a system-level control component rather than an isolated sensor: it depends on compatible CEC ignition equipment, detonation sensors, sensor wiring, and the engine’s configured control strategy.

The E740401 is listed in Waukesha parts documentation as “MODULE, DETONATION SENSNG.” Related documentation identifies a CEC DSM manual, Form 6278, and DSM 6.0C software/manual material, indicating that configuration and diagnostic procedures are tied to the CEC DSM system rather than to a generic knock-sensor installation.

For maintenance planning, replacement should be based on the exact part number and the installed CEC configuration. The module’s interface, sensor harness arrangement, power supply, grounding, and ignition-module compatibility should be checked against the engine documentation before substituting another Waukesha module.

Engineering Selection Highlights

• Exact E740401 identification → The full part number confirms a Waukesha CEC Detonation Sensing Module rather than a generic knock-control sensor.
• CEC system dependency → The module operates as part of the Waukesha CEC detonation-monitoring system and interfaces with a compatible CEC ignition module.
• 14-pin ignition-module interface → The documented CEC ignition-module connection is the 14-pin connector, so harness and connector compatibility must be preserved.
• Knock-protection role → The module supports the CEC system’s function of protecting spark-ignited gas engines from detonation-related damage.
• Documentation-linked configuration → The associated CEC DSM manual and DSM 6.0C software reference indicate that setup and diagnostics should follow Waukesha CEC DSM procedures.
• Exact-match replacement boundary → Physical similarity to other Waukesha modules does not establish interchangeability; the installed part number and system configuration must be verified.

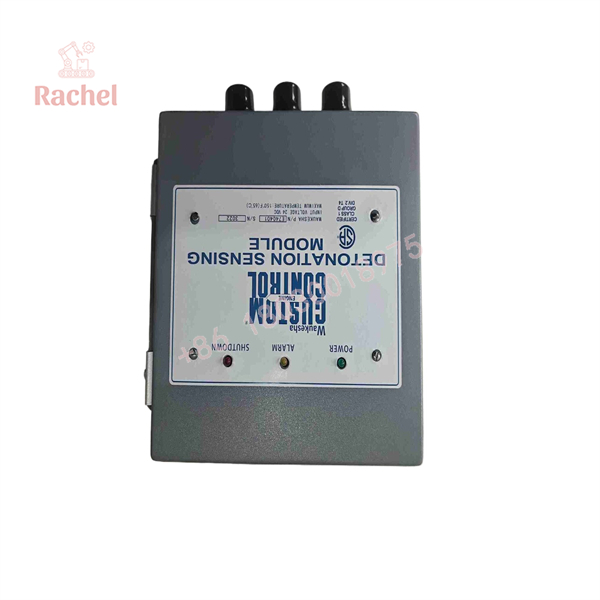

E740401

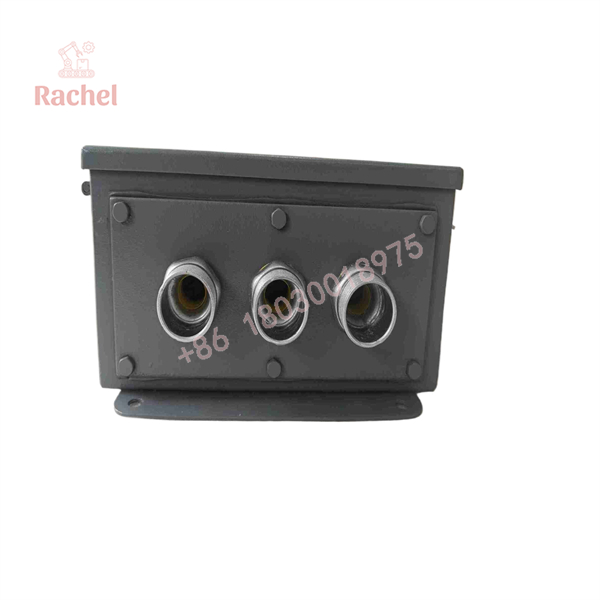

E740401

System Compatibility & Integration Requirements

Dimensions, Mounting & Connection Notes

• The E740401 is a Waukesha CEC Detonation Sensing Module intended for installation within the engine-control arrangement.
• It interfaces with the CEC Ignition Module through the ignition module’s 14-pin connector.
• Associated parts documentation identifies a DSM filter enclosure, vibration mount, DSM filter harness, and filter power harness as related installation components.
• Before removal or replacement, record connector positions, harness routing, grounding points, and any module configuration settings.
• De-energize and lock out the engine-control system before handling electrical connections.

FAQ

What is the WAUKESHA E740401?
It is a Waukesha Custom Engine Control Detonation Sensing Module used to monitor detonation, or knock, in spark-ignited gas engines.

What system does the E740401 belong to?
It belongs to the Waukesha CEC Detonation Sensing Module (DSM) system.

What does the E740401 do?
It processes detonation-related signals and works with the CEC ignition system to support protection of the engine from abnormal combustion.

Which connector does it use?
The CEC DSM interfaces with the CEC Ignition Module through the ignition module’s 14-pin connector.

Does it work alone?
No. It is part of a CEC detonation-monitoring arrangement that includes compatible ignition equipment, detonation sensors, wiring, and the engine-control configuration.

Which documentation applies to this module?
The associated Waukesha documentation includes the CEC DSM manual, Form 6278, and DSM 6.0C manual/software material.

Can another Waukesha module replace the E740401?
Replacement should be based on the exact E740401 part number and the installed CEC configuration, not on physical appearance alone.

Verification & Troubleshooting Notes

• Confirm that the module marking reads and that the installed CEC ignition module uses the documented 14-pin DSM interface.
• Inspect detonation-sensor wiring, sensor-to-junction-box harnesses, the DSM filter harness, power harness, grounding, and connector seating before condemning the module.
• If detonation or knock-related alarms occur, distinguish between a module issue and possible causes in the sensors, harness, ignition module, engine load condition, fuel system, or engine tuning.
• Use the applicable Waukesha CEC DSM documentation for configuration, diagnostics, and alarm interpretation; do not infer undocumented fault codes or LED meanings.
• Do not bypass detonation-protection functions or defeat engine safety interlocks during troubleshooting.
