Description
Product Introduction & Engineering Value
The Woodward 2301E, part number 8273-1011, is a microprocessor-based digital controller for regulating prime-mover speed and sharing generator load. It supports isochronous, droop, and base-load operating modes and was designed as a functional successor compatible with established 2301A and 2301D control applications.
For a maintenance team supporting a legacy diesel or gas-engine generator set, the important distinction is the ordinary-location rating. Do not automatically substitute the visually similar 8273-1012; Woodward specifies the 1012 version for hazardous locations.
Technical Specifications
| Parameter | 2301E / 8273-1011 |
|---|---|
| Controller Type | Microprocessor-based digital control |
| Supply Voltage | 18–36 VDC |
| Nominal Supply | 24 VDC |
| Nominal Power Consumption | ≤20 W |
| Weight | 1.75 kg / 3.86 lb |
| Magnetic Pickup Input | 100–25,000 Hz |
| Equivalent Speed Range | Approximately 300–3,600 rpm |
| Steady-State Speed Band | ±0.25% of rated speed |
| Discrete Inputs | 8 |
| Relay Driver Outputs | 4 |
| Configurable Analog Inputs | 2 |
| Configurable Analog Output | 1 |
| Serial Interfaces | RS-232 and RS-422 |
| Configuration | Control Assistant / 2301E Toolkit |
| Location Classification | Ordinary locations |
Woodward specifies a 7 A inrush current for 0.1 ms, while the nominal input-current figures are approximately 589 mA at 18 VDC, 431 mA at 24 VDC, and 319.6 mA at 32 VDC.
The controller also incorporates a load-sensor circuit, actuator driver, MPU speed-sensor input, configurable analog I/O, eight discrete inputs, four relay-driver outputs, and two serial ports.
Field Application & the “Trench” Experience
A common legacy-generator problem goes like this: the engine itself is mechanically healthy, but the generator begins showing unstable speed or poor load distribution after a controller failure. The original installation uses an older 2301A/2301D architecture, and the maintenance team wants to retain the existing generator-control philosophy.
The 2301E 8273-1011 is designed for exactly this class of application. It can operate in isochronous mode for constant-speed operation, droop mode for load-dependent speed control, or base-load mode for maintaining a defined generator load. It also supports soft load transfer when adding or removing a unit from a bus.
Typical applications include:
- Diesel generator paralleling where multiple generator sets share active load.
- Gas-engine generator speed regulation on an isolated bus or utility-connected system.
- Base-load generator control where the engine-generator set must maintain a defined power contribution.

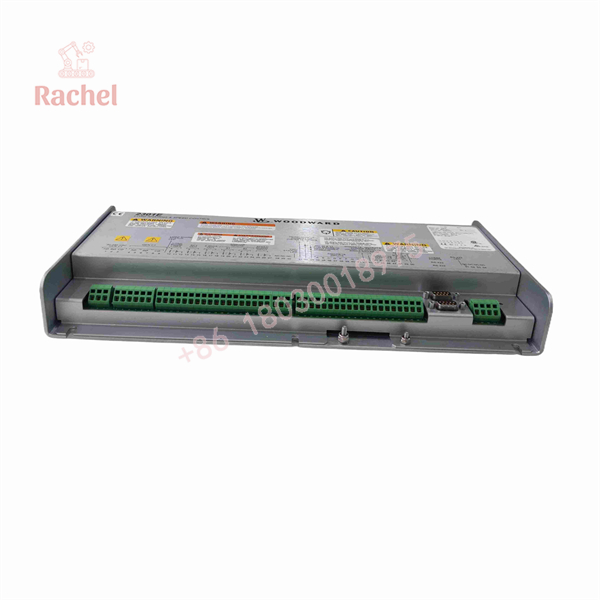

2301E 8273-1011

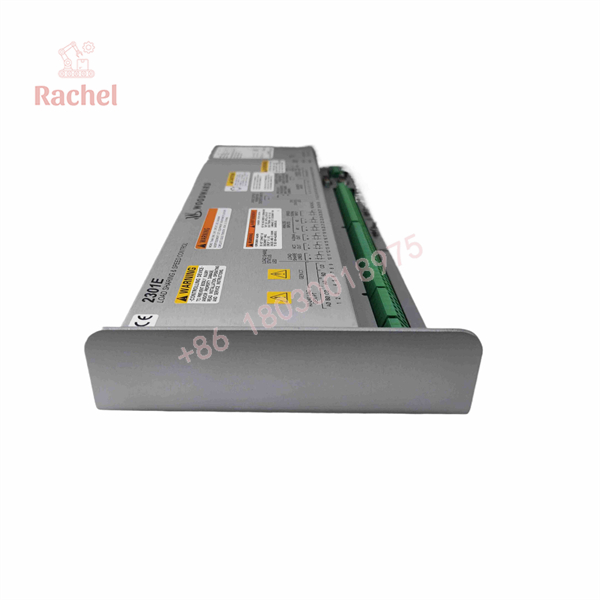

2301E 8273-1011
Transparency SOP: QA & Testing
For New Surplus or Refurbished 8273-1011 inventory, a meaningful inspection should include:
1. Identity check
Verify Woodward 2301E / 8273-1011 and confirm that the unit is the ordinary-location version.
2. Physical inspection
Check the metal chassis, terminal blocks, connectors, PCB condition, labels, and evidence of moisture or overheating.
3. DC power test
Apply a controlled supply within the specified 18–36 VDC range and monitor startup behavior and current draw.
4. Signal simulation
Where appropriate test equipment is available, simulate an MPU speed signal and verify the controller’s speed-input response.
5. I/O verification
Test the configurable analog inputs/output, discrete inputs, relay-driver outputs, and serial interfaces using a suitable test fixture.
6. Configuration verification
Use the appropriate Woodward service software to inspect configuration parameters before declaring the unit ready for installation. Woodward identifies Control Assistant and the 2301E Toolkit as configuration/service tools.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — 8273-1011 vs. 8273-1012
These are not interchangeable from an area-classification standpoint. 8273-1011 is for ordinary locations; 8273-1012 is the hazardous-location version. Verify the plant area classification before purchasing a replacement.
⚠️ Trap #2 — Assuming it is a simple drop-in replacement for every 2301A/2301D
The 2301E was designed to provide compatibility with earlier 2301A and 2301D applications, but it is a software-configured digital controller. Existing control parameters, actuator characteristics, speed-sensor configuration, load-sharing settings, and I/O assignments still need to be checked.
PRO TIP: Before removing a failed controller, capture the existing configuration whenever possible. A replacement with correct wiring but incorrect governor dynamics can produce speed instability even though the hardware itself is healthy.
⚠️ Trap #3 — Ignoring the MPU signal
The magnetic-pickup input is fundamental to speed control. Woodward specifies an MPU frequency range of 100–25,000 Hz, corresponding to approximately 300–3,600 rpm under the stated configuration. Check pickup wiring, shielding, air gap, and signal quality before condemning the controller.
Dynamic FAQ
Q: What is Woodward 2301E 8273-1011?
It is a 24 VDC digital load-sharing and speed-control unit for diesel and gaseous-engine generator applications. The 8273-1011 version is designated for ordinary locations.
Q: What is the difference between 8273-1011 and 8273-1012?
The 8273-1011 is specified for ordinary locations, while 8273-1012 is the hazardous-location version.
Q: What supply voltage does 8273-1011 require?
The specified supply range is 18–36 VDC, with 24 VDC nominal.
Q: Can the 2301E replace an older 2301A or 2301D?
The 2301E was specifically designed to include functions and compatibility associated with 2301A and 2301D systems. However, the actual retrofit still requires verification of wiring, configuration, actuator characteristics, sensing, and application parameters.
Q: How is the 2301E configured?
Woodward specifies computer-based configuration through the controller’s RS-232 interface, using Control Assistant or the 2301E Toolkit service tool.
Q: What should I verify when buying New Surplus 8273-1011?
Confirm the exact 8273-1011 part number, ordinary-location rating, physical condition, configuration compatibility, test status, and warranty. Do not accept a seller’s generic “2301E” description as sufficient identification; the 8273-1011 and 8273-1012 are distinct Woodward part numbers.
