Product Introduction & Engineering Value
I have commissioned dozens of governor retrofits over the years, and the Woodward 8200-1312 remains my absolute go-to platform for mid-sized industrial steam turbines. Instead of overcomplicating the installation with custom PLC coding and discrete touchscreens, this unit integrates the entire core governor logic, dedicated PID structures, and operator interface into a single, hardened enclosure. It eliminates the latency and programming errors that typically creep into complex split-system architectures.
The true engineering value lies in its localized ratio-limiter functionality. By directly calculating the non-linear coupling ratios between speed demands and extraction header pressures using standard steam map points, the controller unifies complex decoupling math without requiring specialized application programmers. It provides a reliable, self-contained turbine governor system that stays stable during intense plant load rejections.
Technical Specifications
| Parameter | Operational Specification |
| Input Supply Voltage | 18–36 Vdc (Isolated Low-Voltage Execution) |
| Power Consumption | Nominal 4.3 Amps maximum current draw |
| Operator Display | 8.4-inch graphical color LCD panel |
| Speed Inputs | 2 Redundant Channels (Supports Passive MPU or Active Proximity Probes) |
| Analog Input Channels | 8 Channels (Configurable 4–20 mA with loop power) |
| Analog Output Channels | 2 Channels (Isolated 4–20 mA actuator/valve loops) |
| Discrete Inputs | 20 Contact Inputs (Dedicated & customizable system interlocks) |
| Relay Outputs | 8 Form-C contact configurations |
| Communication Array | Redundant Modbus ports via RS-485 / Ethernet |
| Operating Temperature | -30°C to +70°C ambient envelope |
Field Application & The “Trench” Experience
The Mid-Shift Steam Map Collapse
We were called into a chemical processing plant where a legacy mechanical-hydraulic governor on a 15 MW extraction turbine was causing massive process pressure spikes every time a boiler cycled. The mechanical linkages had worn past the point of field adjustment, leading to severe hunting. We mounted an 8200-1312 unit directly into the local control panel, landed the MPU speed lines, and entered three reference points from the original factory steam map. The integrated ratio-limiter immediately stabilized the extraction header, preventing process downtime and keeping the generator synchronized during upstream pressure fluctuations.
Targeted Engineering Scenarios
- Single Extraction Industrial Turbine Regulation: Decoupling process steam header demands from mechanical shaft speed parameters in paper mills or chemical refineries.
- Turboexpander Speed & Pressure Profiling: Managing high-speed expansion processes while monitoring critical speed avoidance bands to prevent rotor instability.
- Peaking Generator Mechanical Governing: Providing precise utility grid load matching with automated dual-dynamics for standalone vs. parallel operation.
- 8200-1312
- 8200-1312
Transparency SOP: QA & Testing
Our quality control group subjects each 8200-1312 turbine controller to a comprehensive test protocol prior to shipment:

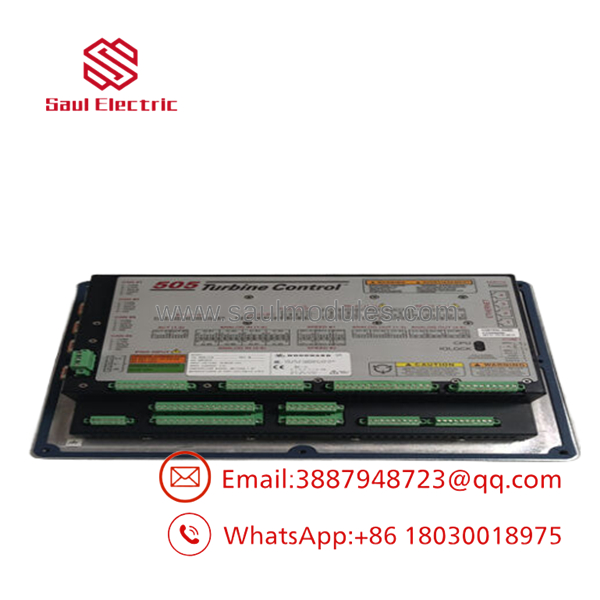

- Visual Component Scan: We check the structural integrity of the front bezel membrane, screen clarity, and clean wire-clamping blocks on the rear panel.
- Dual Frequency Signal Calibration: We inject synchronized signal waves into both speed ports to verify dual-dynamics tracking and instantaneous loss-of-signal protection.
- Full-Loop Analog Testing: Every 4–20 mA input and output channel is put through multi-point trim routines using Toolkit software to verify zero zero-point drift.
- Modbus Communication Verification: We poll the physical RS-485 and Ethernet interfaces under heavy data loop loads to confirm error-free command processing.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ THE LOW-VOLTAGE REVERSAL RISK: The 8200-1312 is strictly an LVDC unit (18–36 Vdc). Do not confuse it with sister part numbers (like the 8200-1330) which accept high-voltage AC inputs. Applying 115 Vac or 230 Vdc directly to the 8200-1312 terminal blocks will completely destroy the internal power supply sub-assembly instantly. Always trace your power feed rails before switching on the breaker.
PRO TIP: When inputting your field steam parameters into the internal software configuration engine, remember that the automated PID-to-valve ratio calculations assume a completely linear relationship across your valve strokes. If your physical valve features non-linear cam characteristics, you must enable and program the custom non-linear linearization curves before activating your extraction cascade control loop.
Dynamic FAQ
Q: Does this unit include a built-in user interface, or do I need to buy an external display?

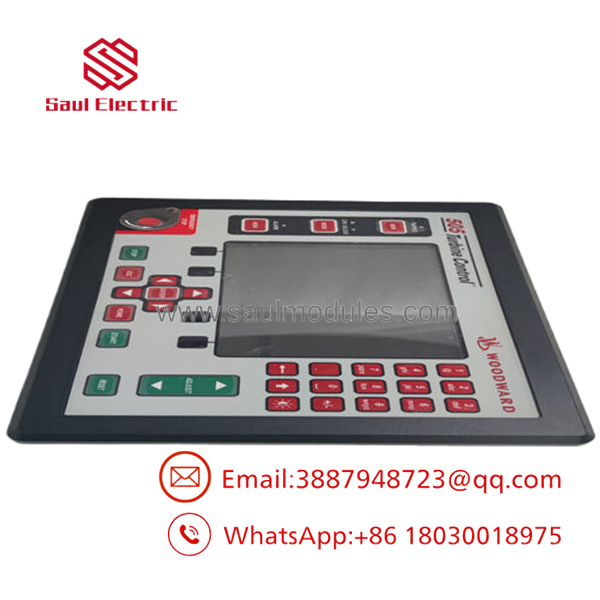

A: The 8200-1312 is completely self-contained and includes an integrated 8.4-inch graphical color display and physical keypad right on the front face of the enclosure. It serves as both the programmer and operator interface panel.
Q: Can I backup and duplicate my customized turbine configurations across multiple units?
A: Yes. By utilizing Woodward’s Control Assistant or Toolkit software connected via the service ports, you can pull the complete configuration file (.cfg), clone it, and push it directly onto an identical backup module.
Q: How does this model handle critical speed zones to prevent physical rotor damage?
A: The 505 controller allows you to program up to three distinct critical speed avoidance bands. During start-up or shutdown ramping sequences, the module overrides standard rate limits to accelerate through these dangerous resonance zones as quickly as safely possible.
Q: What is the warranty standard on your new surplus 8200-1312 governor blocks?
A: Every single 8200-1312 unit we distribute—whether new surplus or fully re-certified refurb—carries a full 1-year replacement warranty. We test every onboard register and physical channel to guarantee it meets factory field specifications.
