WOODWARD 2301E 8273-1011 Digital Load Sharing Control

Description

Product Introduction

The Woodward 8273-1011 (2301E) is a microprocessor-based digital governor designed for diesel and gaseous engine generator applications. It combines engine speed regulation, load sharing, base-load control, and generator management into a single controller, making it a common upgrade for legacy 2301A and 2301D installations.

Compared with earlier 2301-series controllers, the 2301E offers software-based configuration, adaptive control functions, event logging, serial communications, and multiple operating modes without requiring numerous external modules. To be honest, that’s why many power plants continue installing 2301E controls during retrofit projects instead of redesigning the complete governor system.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Everything looks healthy.

Engine RPM is steady.

Voltage is correct.

But one generator keeps carrying 70% of the load while the second generator barely contributes.

I’ve watched maintenance crews replace governors, CTs, and even AVRs before finding the real problem—a damaged configuration file inside the governor after an unsuccessful commissioning attempt.

The hardware wasn’t defective.

The configuration was.

Typical Applications

Utility Power Plants — Multiple diesel generators operating in parallel — Provides accurate load sharing and stable frequency regulation.

Data Centers — Emergency standby generation — Performs soft load transfer and generator synchronization support during utility failures.

Oil & Gas Facilities — Gas engine generator packages — Maintains engine speed while balancing electrical load between multiple units.

Industrial Manufacturing — Captive power systems — Controls engine speed, droop characteristics, and base-load operation.

Marine Power Systems — Auxiliary generators — Supports stable frequency and generator load distribution during parallel operation.

Field Replacement Example

A paper mill experienced repeated overload alarms whenever a third standby generator entered service. Electrical measurements confirmed that every CT and PT was correctly wired. Engineers compared the archived 2301E configuration against the replacement controller and discovered the base-load mode had been enabled instead of isochronous load sharing. After restoring the correct configuration and verifying synchronizer bias inputs, all three generators shared load within specification during full-load testing.

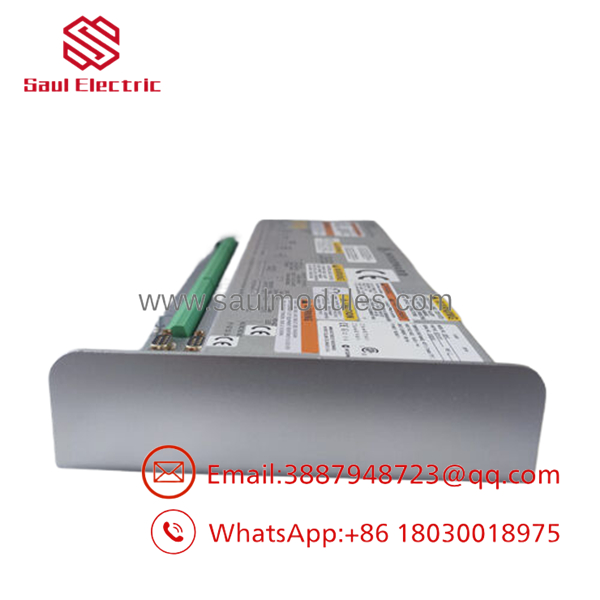

2301E 8273-1011

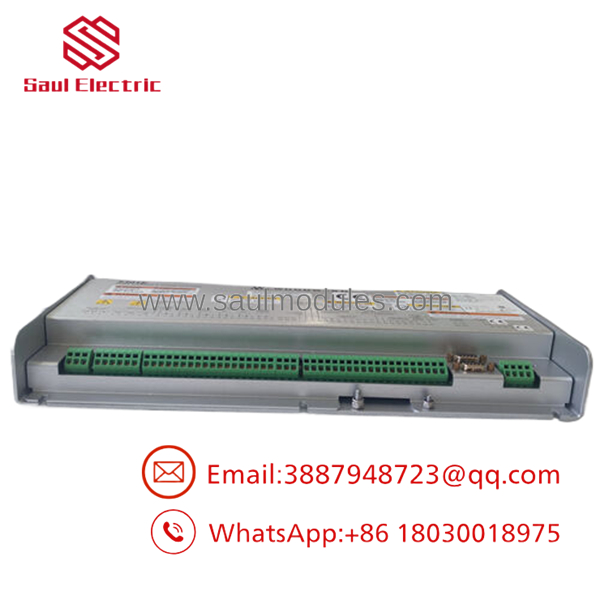

2301E 8273-1011

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Woodward governor platforms whenever practical.

• Inbound Inspection
  • Verify Woodward serial number and part number.
  • Inspect enclosure, connectors, and terminal blocks.
  • Check for corrosion, overheating, or unauthorized repairs.
• Live Rig Testing
  • Verify power-up diagnostics.
  • Simulate magnetic pickup input.
  • Test actuator output.
  • Verify CT/PT measurement inputs.
  • Confirm serial communication.
• Electrical Parameter Checks
  • Verify 18–36 VDC operation.
  • Measure analog outputs.
  • Test digital inputs and relay outputs.
  • Confirm stable controller operation.
• Firmware Verification
  • Record firmware revision.
  • Verify hardware identification.
  • Confirm successful parameter upload/download using Control Assistant.
• Final QC & Anti-static Packaging
  • Functional inspection.
  • ESD-safe packaging.
  • Shock-resistant shipping.
  • Complete serial number traceability.

The Veteran’s Tech Trap Guide

⚠️ Archive the configuration before replacing anything.
The 2301E stores application-specific settings. Losing those parameters can easily turn a one-hour replacement into a full day of recommissioning.

⚠️ Verify CT polarity before changing controller settings.
Incorrect CT polarity often appears as unstable load sharing or generators fighting each other.

❗ Don’t assume every 2301 controller is interchangeable.
Although the 2301E succeeds the 2301A and 2301D, wiring, software configuration, actuator setup, and available functions are different. Verify the migration procedure before installation.

⚠️ Check the magnetic pickup gap first.
Weak MPU signals can produce hunting, speed instability, or nuisance shutdowns. Many governor replacements have been unnecessary because the real problem was the speed sensor.

Frequently Asked Questions (FAQ)

Q1. What is the Woodward 8273-1011?

The 8273-1011 is the Woodward 2301E Digital Load Sharing and Speed Control for ordinary industrial locations. It combines engine governor functions, load sharing, and generator control in one programmable controller.

Q2. What operating modes are supported?

The controller supports Isochronous, Droop, and Base Load operating modes, along with soft load transfer and synchronization bias functions.

Q3. Can it replace a 2301A or 2301D?

Yes, in many applications. The 2301E was designed as the successor to earlier 2301-series controls. However, wiring, software configuration, actuator settings, and I/O assignments must be reviewed during migration. Simply swapping hardware is not sufficient.

Q4. Does it support communications?

Yes. The controller supports RS-232 for configuration and optional Modbus communications for integration with PLC, DCS, and SCADA systems.

Q5. Can the controller be hot-swapped?

No. Removing a live 2301E interrupts governor control and may trip the generator or cause unstable engine operation. Always isolate the equipment before replacement.

Q6. Why are surplus 2301E controllers still widely used?

Many industrial power plants, marine vessels, and standby generator systems continue operating with proven 2301E-based control architectures. Replacing a failed controller is usually far less expensive than redesigning an entire engine control and power management system.
