Woodward 8440-1936 easYgen-3500-5/P2 Generator Controller

Description

Product Introduction

The Woodward 8440-1936 is an easYgen-3500-5/P2 generator controller designed for diesel and gas engine generator sets. It combines engine monitoring, automatic synchronizing, breaker control, load sharing, and generator protection in a single controller for standby, prime power, and utility-parallel applications.

Unlike a simple engine controller, the 8440-1936 supervises the complete generating system. It coordinates engine start/stop logic, synchronizes the generator with a live bus, regulates real and reactive power sharing, and communicates with engine ECUs through industrial communication networks. Before replacing an existing unit, verify both the firmware revision and configuration file compatibility.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Everything appears normal.

Generator voltage is correct.

Frequency is stable.

The breaker still refuses to close.

Someone immediately blames the AVR.

Someone else blames the engine ECU.

To be honest, many synchronization problems originate inside the controller configuration. Incorrect CT ratios, PT scaling, synchronizing limits, or breaker timing parameters can prevent a perfectly healthy generator from connecting to the bus.

Typical Applications

Data Centers — Emergency standby generation — Controls automatic synchronization and closed-transition transfer during utility failures.

Hospitals — Critical backup power — Coordinates multiple generators operating in parallel while maintaining load balance.

Manufacturing Plants — Prime power generation — Performs automatic load sharing and breaker sequencing across multiple generating units.

Oil & Gas Facilities — Remote power stations — Controls diesel and natural gas generator packages with utility-parallel capability.

Marine & Offshore Platforms — Shipboard power systems — Synchronizes multiple generators while maintaining frequency and voltage stability.

Field Replacement Example

A food processing facility experienced repeated synchronizing failures after replacing an aging generator controller. Electrical measurements confirmed that the alternator, governor, and breaker were operating correctly. Engineers compared the original parameter file with the replacement 8440-1936 and discovered an incorrect CT ratio had been entered during commissioning. After correcting the configuration and validating synchronizing tolerances, the generator synchronized successfully without changing any field wiring.

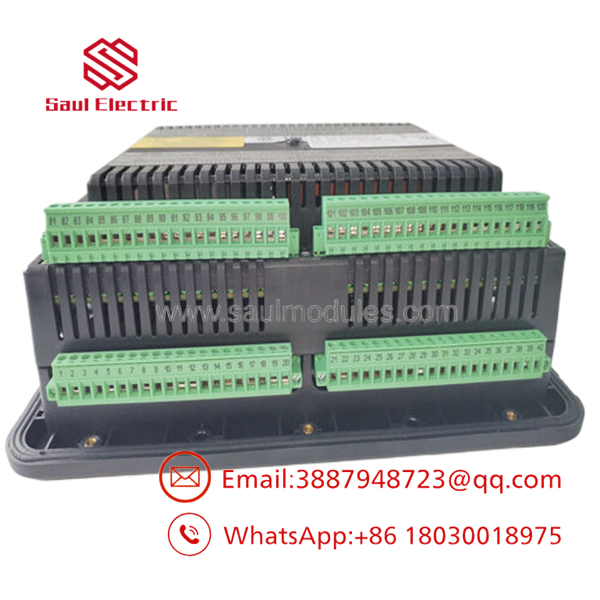

8440-1936

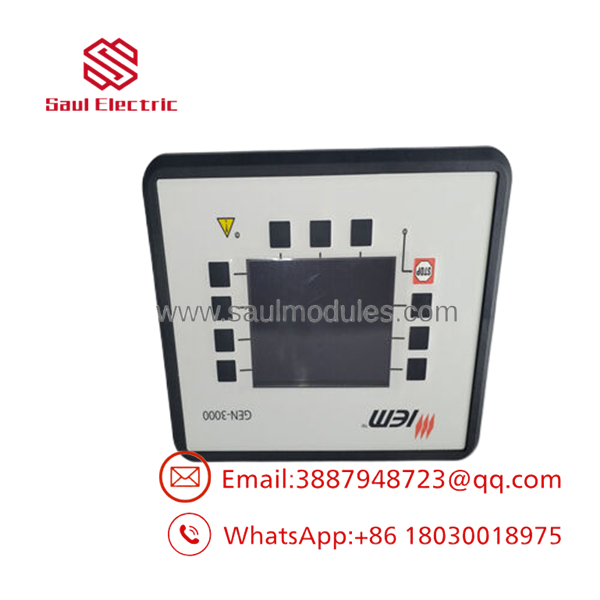

8440-1936

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test every Woodward generator controller on compatible power-management hardware whenever practical.

• Inbound Inspection
  • Verify Woodward part number and serial number.
  • Inspect display, keypad, housing, and terminals.
  • Check for impact damage, corrosion, or unauthorized repairs.
• Live Rig Testing
  • Verify controller startup.
  • Simulate generator voltage and frequency.
  • Test synchronizing logic.
  • Verify digital inputs and relay outputs.
  • Confirm CANbus and Modbus communication.
• Electrical Parameter Checks
  • Verify CT and VT measurement accuracy.
  • Test analog inputs and outputs.
  • Check relay operating times.
  • Perform extended operational testing.
• Firmware Verification
  • Record firmware revision.
  • Verify hardware identification.
  • Confirm successful parameter upload.
• Final QC & Packaging
  • Complete functional inspection.
  • ESD-safe packaging.
  • Shock-resistant shipping.
  • Full product traceability.

The Veteran’s Tech Trap Guide

⚠️ Always verify the CT rating.
The 8440-1936 is the 5 A CT version. Installing it where a 1 A CT controller is required will produce incorrect power measurements and unstable load sharing.

⚠️ Back up the configuration before replacing the controller.
Generator protection settings, synchronizing limits, breaker timing, and load-sharing parameters are usually customized during commissioning.

❗ Check PT polarity and phase rotation.
Many “failed synchronizer” service calls end with a wiring correction instead of a controller replacement.

⚠️ Review firmware revisions before restoring old files.
Woodward has issued service information covering easYgen-3000 hardware revisions and display-related updates. Configuration compatibility should always be confirmed before commissioning.

Frequently Asked Questions (FAQ)

Q1. What is the Woodward 8440-1936?

The 8440-1936 is the easYgen-3500-5/P2 generator controller used for automatic synchronizing, generator protection, breaker control, engine monitoring, and load sharing in diesel and gas generator systems.

Q2. What does the “5/P2” designation mean?

The “5” identifies the controller as the 5 A current transformer version, while “P2” denotes the specific easYgen-3500 package configuration defined by Woodward.

Q3. Which communication protocols are supported?

The controller supports SAE J1939, CANopen, and Modbus RTU, allowing communication with engine ECUs, PLCs, DCS platforms, and remote monitoring systems.

Q4. Can I load an existing configuration into a replacement controller?

Yes, in most cases. However, verify the firmware revision before restoring configuration files. Woodward has published service guidance regarding hardware revisions and software compatibility within the easYgen-3000 family.

Q5. Does this controller support utility-parallel operation?

Yes. The easYgen-3500 platform supports standby, prime power, peak shaving, and utility-parallel applications when configured correctly.

Q6. Why are New Surplus units still widely used?

Many commercial buildings, hospitals, manufacturing facilities, and utility power plants continue operating easYgen-3500 systems. Keeping qualified spare controllers on site minimizes downtime and avoids the expense of redesigning an established generator control panel.

Q7. What should be verified before installation?

Verify the 8440-1936 part number, 5 A CT compatibility, firmware revision, PT and CT ratios, breaker wiring, engine communication settings (J1939 if used), Modbus addressing, synchronizing parameters, and protection thresholds. Before placing the generator back into service, perform functional tests for synchronization, breaker operation, load sharing, engine protection, and alarm handling.
