Woodward 5441-693 MicroNet HD Discrete I/O FTM Module

Description

Product Introduction

The Woodward 5441-693 is a High-Density Discrete I/O Field Termination Module (FTM) designed for the MicroNet and MicroNet Plus control platforms. It provides a structured interface between field wiring and discrete I/O modules, supporting 24 optically isolated discrete inputs and 12 relay outputs for industrial turbine and compressor control applications.

Unlike processor or I/O modules that execute logic, the 5441-693 serves as the field wiring interface. According to Woodward documentation, the assembly is based on a Phoenix Contact termination design, simplifying cabinet wiring while maintaining reliable signal distribution between field devices and the controller.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A gas turbine refuses to start after scheduled maintenance.

Every limit switch checks out.

The PLC program hasn’t changed.

The CPU diagnostics are clean.

After several hours, maintenance discovers two field wires landed on the wrong terminals of the 5441-693 during cabinet work.

Nothing was wrong with the controller. The field termination module simply wasn’t wired back exactly as before.

That’s a common lesson in turbine controls: passive hardware can create active problems.

Typical Applications

Gas Turbines — Turbine sequencing — Interfaces field switches, permissives, and relay outputs with the MicroNet controller.

Steam Turbines — Trip and protection circuits — Connects discrete shutdown inputs and output relays used in turbine protection.

Compressor Stations — Process permissives — Terminates field signals for compressor control and auxiliary equipment.

Power Generation — Generator auxiliary systems — Interfaces breaker status, alarms, and relay control outputs.

Oil & Gas — Rotating equipment control — Provides organized termination for discrete field devices used in compressor and pump packages.

Field Replacement Example

During a planned overhaul of a gas compressor package, operators reported multiple false permissive alarms after cabinet rewiring. Diagnostics showed every I/O module functioning normally. The issue was traced to incorrect field terminations on a replacement 5441-693 FTM. After comparing the wiring against the original terminal schedule and correcting two misplaced conductors, all startup permissives cleared immediately without changing controller logic.

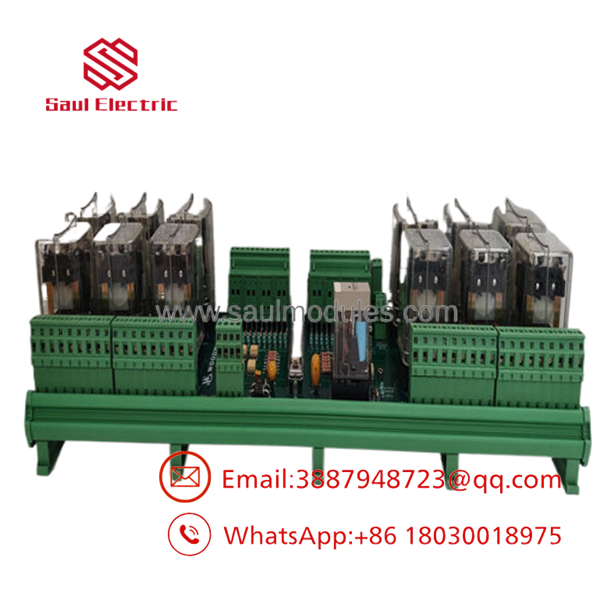

5441-693

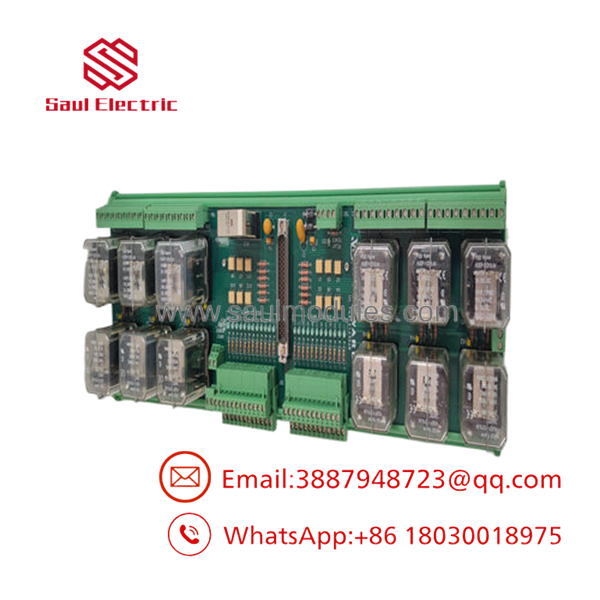

5441-693

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on compatible Woodward MicroNet hardware whenever practical.

• Inbound Inspection
  • Verify Woodward part number and revision.
  • Inspect Phoenix Contact terminal assemblies.
  • Check connectors for damage or corrosion.
  • Screen for unauthorized modifications.
• Functional Verification
  • Verify terminal continuity.
  • Confirm relay operation where applicable.
  • Test discrete input circuits using simulated field signals.
• Electrical Checks
  • Inspect isolation integrity.
  • Verify relay contact operation.
  • Confirm connector pin continuity.
• Compatibility Verification
  • Record hardware revision.
  • Verify compatibility with the intended MicroNet platform.
• Final QC & Packaging
  • ESD-safe handling.
  • Protective packaging.
  • Terminal protection during shipment.
  • Full traceability documentation.

The Veteran’s Tech Trap Guide

⚠️ This is an FTM—not the I/O processing module.
The 5441-693 provides field termination only. If the actual discrete I/O electronics have failed, replacing only the FTM will not restore operation.

⚠️ Photograph every terminal before disconnecting wiring.
Twenty-four inputs and twelve outputs can look nearly identical during a shutdown. One misplaced wire may prevent a turbine from starting.

❗ Inspect relay contacts during troubleshooting.
In long-service installations, field wiring is often blamed first. In reality, worn relay contacts, loose terminals, or cabinet vibration may be the source of intermittent faults.

⚠️ Verify compatibility with your MicroNet revision.
Woodward has released multiple generations of MicroNet hardware. Confirm the complete bill of materials and cabinet drawings before ordering replacement parts.

Frequently Asked Questions (FAQ)

Q1. What is the Woodward 5441-693?

It is a High-Density Discrete I/O Field Termination Module (FTM) used in Woodward MicroNet and MicroNet Plus control systems. It provides termination for 24 discrete inputs and 12 relay outputs.

Q2. Is the 5441-693 an I/O processor?

No. It is a field termination module. Signal processing is performed by the associated MicroNet discrete I/O module, while the FTM provides the wiring interface.

Q3. Which control systems use this module?

The 5441-693 is used in Woodward MicroNet and MicroNet Plus turbine and compressor control systems, including certain 505DE configurations.

Q4. Can it be replaced while the controller is energized?

No. Although the FTM itself is passive, replacing it with power applied can interrupt discrete signals, create false trips, or damage associated I/O hardware. Follow plant lockout/tagout procedures and Woodward maintenance instructions before replacement.

Q5. Is the 5441-693 still manufactured?

It is considered a legacy MicroNet component. Most available units come from surplus inventory or are professionally tested refurbished assemblies.

Q6. Why is this module still widely purchased?

Many gas turbines, steam turbines, compressors, and generator control systems continue operating on MicroNet platforms. Maintaining qualified spare FTMs is considerably less expensive than redesigning an entire control cabinet.

Q7. What should be verified before installation?

Verify the 5441-693 part number, cabinet wiring drawings, terminal assignments, associated MicroNet I/O module, controller revision, relay output requirements, and field voltage levels. Before energizing the system, perform continuity checks, verify every field conductor against the terminal schedule, and confirm all permissive and trip circuits operate as intended.
