Description
Product Introduction
The Woodward 5464-658 is a high-density digital I/O expansion board engineered for Woodward MicroNet and MicroNet TMR (Triple Modular Redundant) control platforms. Built specifically for critical turbomachinery applications—including steam turbines, industrial gas turbines, and large compressor trains—it provides the fast, noise-immune discrete signal processing required for emergency shutdowns, trip logic, and valve position feedback.
Unlike standard PLC digital input cards designed for slow factory automation, the 5464-658 delivers sub-millisecond signal filtering and high galvanic isolation directly across the MicroNet high-speed VME-based backplane. This prevents field-side electrical surges from migrating into the main CPU control core and ensures rock-solid execution of safety-critical interlocks.
Key Technical Specifications
| Parameter | Specification |
| Compatible Platform | MicroNet Flat-Array & MicroNet TMR Chassis |
| Channel Density | 32 Discrete / Digital Channels |
| Input Nominal Voltage | 24 VDC (18 VDC to 32 VDC operational range) |
| Isolation Rating | 500 VAC channel-to-backplane optical isolation |
| Response / Filter Time | < 1 ms software-configurable hardware filter |
| Backplane Power Draw | 5 VDC @ 1.2A (sourced via chassis backplane) |
| Operating Temperature | -40°C to +70°C ambient |
| Mounting | Dedicated MicroNet chassis slot (Card Guide / Front Latch) |
Application Scenarios & The “Trench” Experience
When an offshore gas compressor trips at midnight because a degraded digital input card dropped a fuel valve limit switch signal, every minute of downtime bleeds money. In one field incident on a Gulf platform, an aging digital input board started dropping random channel status bits under vibration, causing intermittent trip warnings on the main turbine driver. Swapping out the faulty card with a tested 5464-658 cleared the bus faults and stabilized the safety loop immediately.
- Heavy-Duty Industrial Gas Turbines – Ingesting discrete trip signals, flame detector contacts, and lube-oil pressure switches into the primary MicroNet logic controller.
- Combined-Cycle Power Generation – Interfacing steam turbine valve limit switches and boiler trip permissives where high ambient temperatures demand ruggedized circuitry.
- Refinery Hydrocracker Compressor Controls – Monitoring critical field interlocks in high-vibration, electrically noisy petrochemical environments.

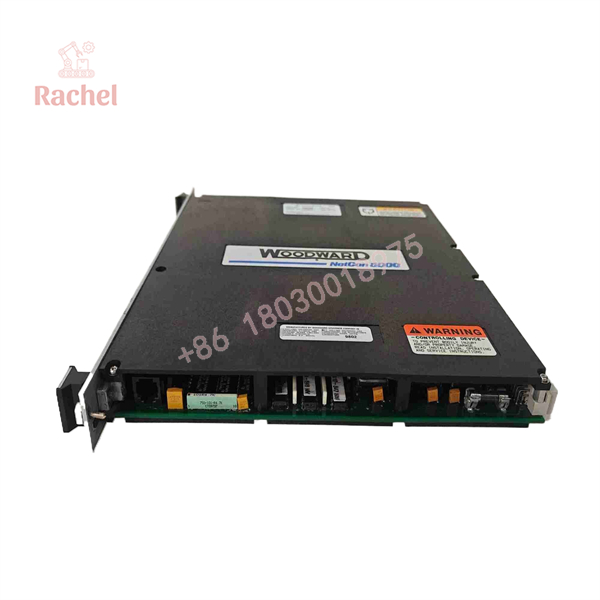

5464-658

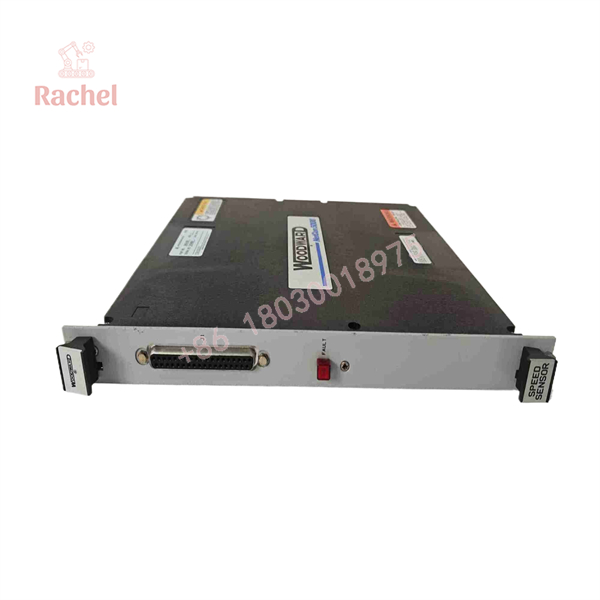

5464-658
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Woodward MicroNet chassis racks. Every 5464-658 undergoes a rigorous 5-step bench verification protocol before heading to your site:
- Inbound & Backplane Pin Audit: Thorough visual inspection of the multi-pin DIN backplane connector to ensure zero bent, recessed, or oxidized gold pins.
- Chassis Power-On & Slot Recognition: The board is locked into a live MicroNet rack to verify system bus enumeration, backplane power rail draw, and status LED diagnostics.
- 32-Channel Signal Sweep: A automated testing rig drives 24VDC across all 32 discrete input channels simultaneously, testing contact closure thresholds and status LED illumination.
- Thermal & Noise Stressing: We monitor signal stability across the card’s optical isolators to catch intermittent thermal drift or leaky optocouplers.
- ESD-Safe Preparation: Board parameters are reset, card edges are cleaned with contact cleaner, and the unit is sealed inside static-shielding metallic bags.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Watch the Backplane Pins: The multi-pin connector on the rear of the 5464-658 is delicate. Align the card carefully with the chassis guides before applying force to lock the ejector handles. Forcing a misaligned card will bend backplane pins and short out the 5VDC rail!
- ❗ Verify FT-Header Wiring & Termination: Terminal blocks on MicroNet systems often use field termination (FT) modules. Double-check that your field 24VDC power supply polarity matches the wiring layout on your specific FT block before racking the card. Reverse polarity won’t blow the card thanks to protection diodes, but none of your inputs will pull high.
- ⚠️ Simplex vs. TMR Slot Configuration: If installing this card into a MicroNet TMR rack, ensure the card slot assignment matches your GAP (Graphical Application Program) software architecture. Placing a simplex I/O card into a redundant slot pair will trigger a backplane mismatch fault on the CPU.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I hot-swap the 5464-658 card while the MicroNet system is running?
A: No. While MicroNet chassis are rugged, pulling or inserting I/O cards under live power without proper rack isolation procedures can induce backplane voltage spikes and cause adjacent channel trips. Always follow Woodward’s official rack power-down or slot-deactivation procedure.
Q: Is the 5464-658 compatible with both MicroNet Simplex and MicroNet TMR systems?
A: Yes, the card can operate in standard MicroNet Simplex chassis as well as MicroNet TMR architectures, provided the system software application (GAP) is configured for the module’s channel mapping.
Q: Do I need to load firmware onto the 5464-658 before installation?
A: No separate firmware flashing is required on the board itself. The main MicroNet CPU manages the hardware interface parameters during system boot based on your application program.
Q: What condition are these surplus 5464-658 modules in?
A: We carry both factory-sealed New Surplus stock and fully reconditioned, bench-tested surplus modules. Every unit—regardless of cosmetic grade—is 100% functional and tested on real Woodward hardware.
Q: What is the warranty period for this module?
A: Every Woodward 5464-658 module sold comes backed by a comprehensive 12-month operational warranty from the invoice date. If the unit fails in the field during normal operation, we replace it right away.
