Description
Product Introduction & Engineering Value
Finding a single unit that balances complex utility parallel operations with granular alternator engine management is a tall order. The Woodward 8440-2052 (specifically the Revision F build) stands as the definitive response to this challenge, operating as both a high-fidelity protection relay and an advanced load-sharing brain packaged inside a flush-mount fascia.
This module simplifies intricate multi-unit power schemes by embedding standard PLC logic operations directly into the generator control environment. Plant engineers lean on Revision F because its refined internal power conditioning components eliminate the spurious phase-angle drift alarms that frequently plagued earlier hardware iterations during high-ambient running conditions.
Technical Specifications
| Core Parameter | Hardware Value / Operating Boundary |
| Power Supply input | 12/24 VDC nominal range (continuous operation from 6.5 to 32.0 VDC) |
| Measuring Frequency Range | 40 to 85 Hz true RMS evaluation |
| AC Voltage Sensing | Rated up to 480 VAC line-to-line phase configurations |
| CT Secondary Inputs | Dual-rated fields accommodating either 1.0 A or 5.0 A transformer taps |
| Analog Inputs | 4 multi-mode channels configurable for 0-20mA, 4-20mA, or resistive sensors |
| Analog Outputs | 2 isolated channels for ±10 VDC or 0-20 mA speed/voltage bias controls |
| Discrete Inputs / Outputs | 10 configurable discrete inputs / 11 heavy-duty relay outputs |
| Data Communication | Dual CAN bus links, RS-485 serial port, and dedicated RJ45 Ethernet link |

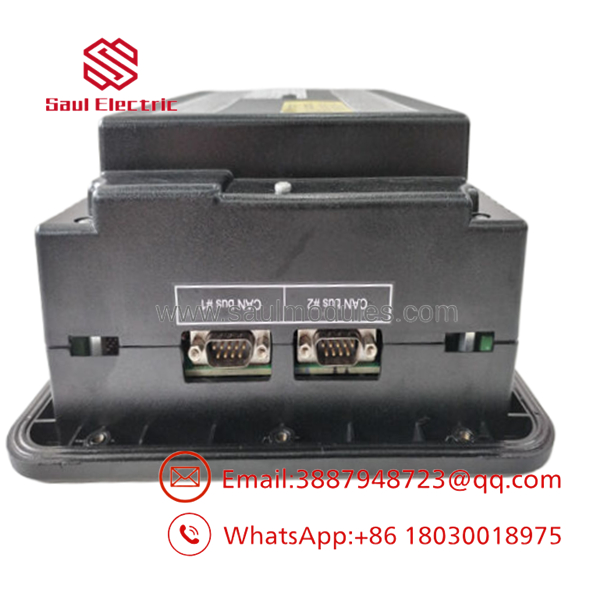

- 8440-2052 F

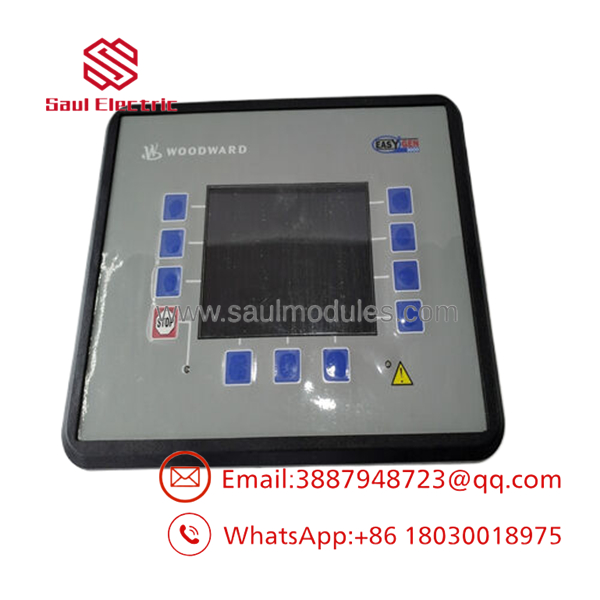

- 8440-2052 F
Field Application & The “Trench” Experience
A critical data center backup power plant experienced repeated utility trip sequences during local grid instability. The legacy controller could not execute a break-before-make transition fast enough to protect downstream UPS systems from voltage sags. We dropped the 8440-2052 into the master panel slot, using its integrated phase-lock loop (PLL) tracking engine to continuously align the standby gen-sets with the incoming utility grid. When the next voltage sag hit, the controller commanded a seamless, bumpless export transition, transferring 2.4 megawatts of load away from the grid without a single microsecond of data center interruption.
- Data Center Prime Power Interlocking: Governing dead-bus isolation controls across four parallel 2,500 kVA emergency diesel modules.
- Co-Generation / Peak Shaving Applications: Driving automatic base-load imports over varying seasonal utility pricing schedules.
- Islanded Microgrid Fleet Operations: Maintaining tight frequency stabilization loops across mixed gas and diesel engine blocks.
Transparency SOP: QA & Testing
Our rigorous functional testing protocol for the 8440-2052 Revision F ensures field-ready dependability right out of the box:
- Every module undergoes an operational verification inside an environmental chamber cycled up to 60°C to simulate tight switchgear panels.
- Automated testing fixtures inject high-precision 3-phase AC voltage and current waveforms to check calibration on all phase angles and power factors.
- Speed and voltage bias analog outputs are mapped against simulated actuator loads to ensure flat line response profiles.
- Network validation includes mapping active Modbus TCP registers through the Ethernet interface to confirm clean data transmission without buffer overruns.
The Veteran’s Tech Trap Guide
⚠️ THE ANALOG ISOLATION TRAP: Never ground the shields of your speed bias and automatic voltage regulator (AVR) control wires at both ends. Grounding at both the 8440-2052 chassis and the governor terminal creates a ground loop that introduces high-frequency noise, causing erratic engine hunting or phantom overcurrent trips during load ramping.
PRO TIP: Revision F utilizes updated firmware boot blocks compared to early legacy series units. When replacing a broken older unit with a 8440-2052 F, do not simply copy and paste the raw
.cfgparameters blindly via Toolkit. Open both files side-by-side to ensure the newly introduced phase matching and breaker timing settings are verified before attempting your first live bus closure.
Dynamic FAQ
- Q: Can I load an old program file from a damaged Revision A or B controller directly into this Revision F module?
- A: Yes, you can migrate the file structure using Woodward Toolkit software, but you must perform a firmware block reconciliation afterward to account for the updated register assignments unique to the Revision F hardware.
- Q: Does this controller support direct connection to electronic engine control units (ECUs)?
- A: Absolutely. It features native J1939 CAN bus protocols designed to interface with major industrial engine networks like Cummins, Caterpillar, and MTU.
- Q: How does the 8440-2052 handle internal data storage during a sudden DC supply power failure?
- A: The system relies on flash-backed internal memory arrays that lock down all active historical fault logs and system run timers prior to complete rail collapse.
- Q: Are these units supplied with the software utility for configuration?
- A: The hardware comes pre-configured with the baseline bootloader. The operating software utility, Woodward Toolkit, is readily downloadable, and our engineering desk provides tested custom logic templates with every certified New Surplus or Refurbished unit sold.
