Woodward 5466-1035 MicroNet CPU Module

Description

Product Introduction

The Woodward 5466-1035 is an advanced CPU processing board designed for the Woodward MicroNet and MicroNet TMR control platforms. Purpose-built for critical turbomachinery applications—such as utility-scale steam turbines, industrial gas turbines, and large multi-stage compressor trains—it delivers the processing power required for complex control algorithms, surge protection, and high-speed system diagnostics.

Unlike standard industrial PCs or off-the-shelf PLCs, the 5466-1035 executes deterministic control loops down to sub-millisecond task cycles across the MicroNet VME-based backplane. This guarantees that critical fuel valve commands, trip logic execution, and load sharing routines occur with zero jitter, keeping your heavy rotating equipment safe and stable.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When an offshore gas production platform suffers an unannounced processor fault on its main compressor driver, production halts instantly at $50,000 an hour. In one field emergency at a refinery, an aging CPU card began dropping communication packets under heavy network loads, triggering false trip alarms on a critical steam turbine. Swapping in a pre-tested 5466-1035 restored clean communication handshakes, eliminated the phantom trips, and stabilized the process header before the plant was forced to flare product.

• Heavy-Duty Gas Turbine Speed Control – Running precise fuel governor algorithms and active overspeed protection in harsh industrial environments.
• Steam Turbine Generator Paralleling – Executing complex multi-variable extraction control and grid synchronization matrices via Woodward GAP software.
• Petrochemical Anti-Surge Systems – Processing ultra-fast anti-surge loop calculations on large centrifugal compressors where processing lag leads to catastrophic impeller damage.

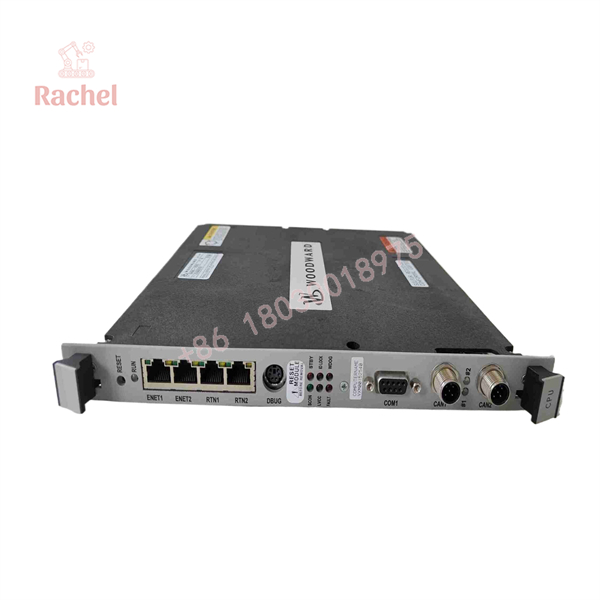

5466-1035

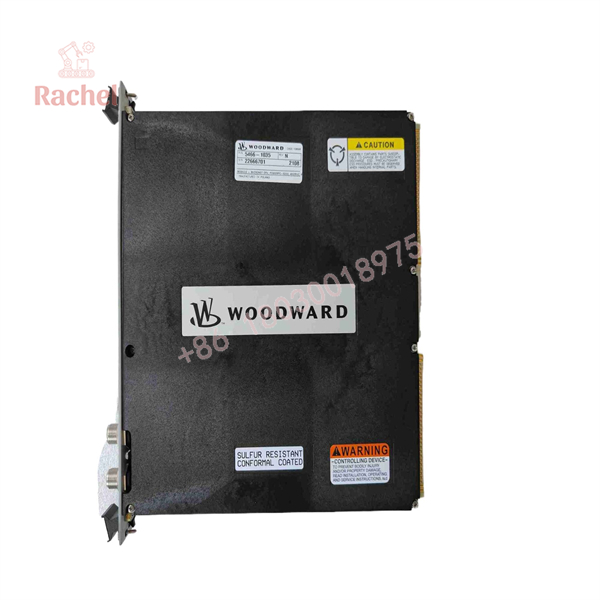

5466-1035

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Woodward MicroNet chassis racks. Every 5466-1035 CPU module goes through our rigorous 5-step bench verification protocol before dispatch:

1. Inbound & Backplane Pin Audit: Thorough visual and mechanical inspection of the multi-pin VME backplane connectors to verify zero bent, recessed, or oxidized contacts.
2. Chassis Power-On & Boot Audit: The CPU is inserted into a live MicroNet rack to verify bootloader sequences, memory self-tests, and status LED diagnostics.
3. Communication Port Sweep: Ethernet and serial ports are continuously exercised with data handshakes to verify throughput, transceiver health, and connection stability.
4. GAP Application Load Test: We flash a heavy test application using Woodward GAP software to evaluate deterministic cycle execution, RAM utilization, and thermal stability under full processing load.
5. ESD-Safe Preparation: Application memory is wiped clean to factory defaults, connector gold fingers are cleaned, and the module is sealed inside a static-shielding metallic bag.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match Firmware & Boot Kernel Revisions: Before installing a replacement 5466-1035 into an active rack, verify the exact boot kernel and operating system firmware using Woodward ToolKit or Coder. A version mismatch between CPU firmware and your GAP application software will cause boot loops or prevent CPU hand-off in TMR configurations.
• ❗ Never Force the Card into the Backplane: The high-density multi-pin VME connectors on the rear of the card require precise alignment. Gently slide the card along the rack card guides until the pins make contact, then apply firm, simultaneous pressure on top and bottom ejector handles. Forcing a misaligned module will crush backplane pins and short out the system power rail!
• ⚠️ Backup App Code & Network Configs: The replacement CPU will arrive with empty memory or factory default firmware. Always backup your running GAP application file (.bin/.img), network IP configurations, and field-tuned values from the old CPU before pulling it out of the rack.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Woodward 5466-1035 CPU module hot-swappable?

A: In a Simplex system, no—removing the CPU immediately shuts down system logic. In a MicroNet TMR (Triple Modular Redundant) system, an individual CPU channel can be serviced while running, provided you strictly follow Woodward’s official TMR CPU replacement protocol to avoid dropping the active control vote.

Q: How do I load my application code onto the 5466-1035?

A: Program loading and parameter tuning are performed over the front Ethernet or serial service port using Woodward’s GAP (Graphical Application Program) development tool and ToolKit service software.

Q: Can I use the 5466-1035 as a direct replacement for older 5466-series CPU boards?

A: In many cases yes, but compatibility depends on your MicroNet chassis backplane revision, power supply capabilities, and software build. Verify software and kernel compatibility with your original system documentation prior to drop-in installation.

Q: What condition are these 5466-1035 modules in?

A: We stock both factory-sealed New Surplus units and fully reconditioned, bench-tested surplus modules. Every card—regardless of cosmetic grade—is 100% functional and live-tested on real Woodward chassis hardware.

Q: What warranty comes with this CPU board?

A: All 5466-1035 modules sold include a comprehensive 12-month operational warranty from the invoice date. If the module experiences an operational failure under normal field conditions, we replace it right away.
