Woodward 8511-144 Simple Governor

Description

Product Introduction & Engineering Value

The Woodward 8511-144 is an SG Simple Governor designed for mechanical-hydraulic engine speed regulation. It uses a mechanical sensing and hydraulic control arrangement to respond to changes in engine speed and control the prime mover’s fuel or speed-control mechanism.

The exact configuration matters when replacing this governor. Woodward specifies a horizontal servo-down mounting arrangement, standard splined drive shaft, solid two-weight ballhead, one-round porting, reversible rotation, and defined speed-stop characteristics. This makes the 8511-144 a configuration-specific spare rather than a generic SG-family replacement.

Technical Specifications

The configuration above is taken from Woodward’s retrofit table for 8511-144. The listed 4,200 rpm and 2,600 rpm values describe the governor configuration and should not be interpreted as permissible operating speeds for a particular engine. Engine OEM limits and the complete governor setup remain controlling.

Field Application & Trench Experience

A typical 8511-144 replacement occurs on an older engine or generator where the governor has been in service for many years and the mechanical installation is still based on the original SG configuration. In this situation, the critical work is not simply removing the old governor and installing another unit. The technician needs to preserve the original linkage geometry, verify shaft rotation, confirm the governor’s mounting orientation, and establish the correct speed-control travel before commissioning.

A common field problem is treating every SG governor as mechanically interchangeable. The 8511-144 has a specific combination of shaft arrangement, porting, ballhead configuration, mounting position, and speed stops. Woodward’s retrofit table demonstrates why the complete part number must be matched before selecting a replacement.

Typical Application Scenarios

• Diesel generator sets: Mechanical engine-speed regulation where an SG governor remains part of the original genset control architecture.
• Industrial engines: Speed control on legacy prime movers where the existing hydraulic governor is still supported through repair or retrofit.
• Turbine and engine auxiliary systems: Older installations where governor replacement must preserve existing mechanical interfaces and control travel.

A PETRONAS equipment database also records 8511-144 as a Woodward SG governor, providing an independent identification of the exact part number.

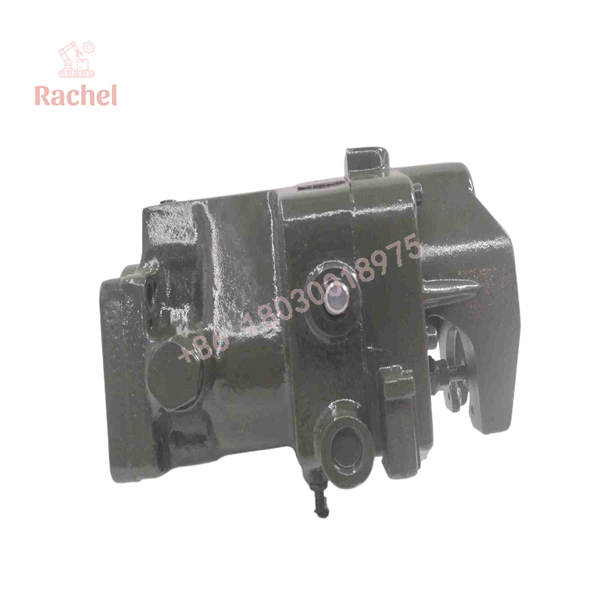

8511-144

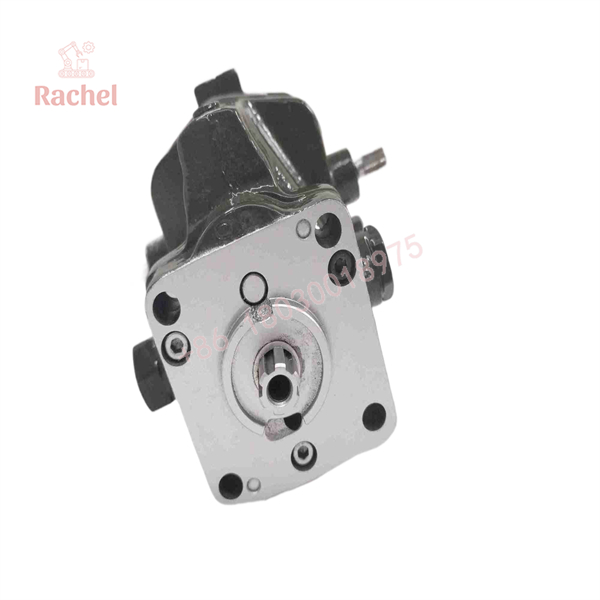

8511-144

QA & Testing SOP

For a New Surplus 8511-144, inspection should focus on both authenticity and mechanical condition.

Recommended Incoming Inspection

1. Verify the Woodward nameplate and complete part number.
2. Record serial number and any visible revision or configuration markings.
3. Compare the physical unit against the documented SG configuration.
4. Inspect the drive shaft and splines for wear, impact damage, or corrosion.
5. Check the terminal and speed-adjusting shafts for mechanical damage.
6. Inspect governor housing, mounting surfaces, and hydraulic/oil ports.
7. Check for evidence of leakage, contamination, or previous disassembly.
8. Confirm that the governor configuration corresponds to the required application.
9. Where testing facilities are available, perform a controlled governor test and record speed response and adjustment results.
10. Package the governor with appropriate protection against contamination and mechanical shock.

Important: “New Surplus” should describe the inventory condition only. It should not automatically be represented as newly manufactured by Woodward or as factory-tested unless supporting documentation confirms that status.

Veteran’s Tech Trap Guide

Trap 1 — Buying by “SG” only

The SG family contains multiple mechanical configurations. Shaft arrangement, mounting orientation, porting, rotation, and speed-stop configuration can differ.

Pro tip: Match the complete 8511-144 configuration against the installed governor before purchasing.

Trap 2 — Assuming 8563-391 is a direct drop-in

Woodward documents 8563-391 as the PSG retrofit for 8511-144. That is an established replacement path, but a retrofit should still be treated as an engineering replacement rather than automatically assumed to be a bolt-for-bolt installation.

Verify the mounting arrangement, drive interface, linkage geometry, hydraulic connections, and speed-setting requirements before conversion.

Trap 3 — Ignoring linkage geometry

A governor can be mechanically correct yet produce incorrect engine behavior if the control linkage has incorrect travel, direction, or neutral position.

Before removing the original unit, document linkage position and travel. After installation, verify the complete control path before returning the engine to normal operation.

FAQ

What is Woodward 8511-144?

Woodward 8511-144 is an SG Simple Governor, a mechanical-hydraulic speed governor used for engine speed regulation. An independent PETRONAS equipment listing also identifies the exact part number as a Woodward SG governor.

Is 8511-144 an electronic speed controller?

No. The documented product is an SG mechanical-hydraulic governor. Descriptions on secondary-market websites may call it an actuator or speed-control module, but Woodward’s own retrofit documentation classifies the 8511-144 within the SG governor configuration.

What replaces Woodward 8511-144?

Woodward Application Note 51650 maps 8511-144 to PSG retrofit 8563-391. The application note also provides the mechanical configuration used for the retrofit selection.

What are the speed-stop specifications?

The documented 8511-144 configuration has a 4,200 rpm high-speed stop and a low-speed stop adjustable to 2,600 rpm. These are governor configuration values, not recommended engine operating speeds.

What should be checked before ordering 8511-144?

Confirm the complete part number and compare the governor’s mounting orientation, drive shaft, ballhead, porting, rotation, shaft arrangement, and speed-stop configuration with the existing installation.

Is 8511-144 obsolete?

Secondary obsolescence records identify 8511-144 as an obsolete SG governor and list a last-time-buy date of April 1, 2023. The documented Woodward retrofit path is 8563-391.

Can New Surplus 8511-144 be supplied?

A New Surplus unit can be evaluated based on its physical condition, nameplate, serial/configuration information, storage history, and available test documentation. Authenticity and factory-new status should be verified from the specific unit rather than inferred from the listing condition alone.
