Woodward 9907-1290 Digital Speed Controller 24 VDC

Description

Product Introduction

The Woodward 9907-1290 is a ProAct Model II digital speed controller with a high-output sensor circuit. It is used in engine and generator-set speed governing systems, processing speed feedback and controlling a compatible ProAct actuator to regulate fuel or prime-mover output.

This is a governor component, not a generic PLC analog-output card. The 9907-1290 belongs to the ProAct Model II family and was introduced as the replacement for Woodward 9905-463. That distinction matters when maintaining an older engine control cabinet.

Key Technical Specifications

*Several distributor databases reproduce these specifications, but the publicly indexed Woodward material I found does not expose the complete 9907-1290 datasheet. Treat the starred values as secondary-source data and verify them against the unit nameplate and applicable Woodward Manual 04121 before engineering approval. The part identity and 9905-463 → 9907-1290 replacement relationship are directly supported by Woodward documentation.

One important point: 9907-1290 is not the same part as 9907-1289. Woodward lists 9907-1289 as the ProAct Model I replacement for 9905-462, while 9907-1290 replaces the ProAct Model II 9905-463.

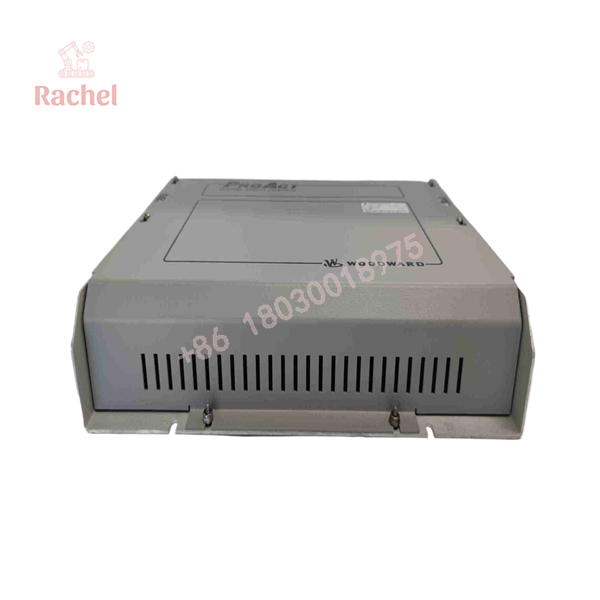

9907-1290

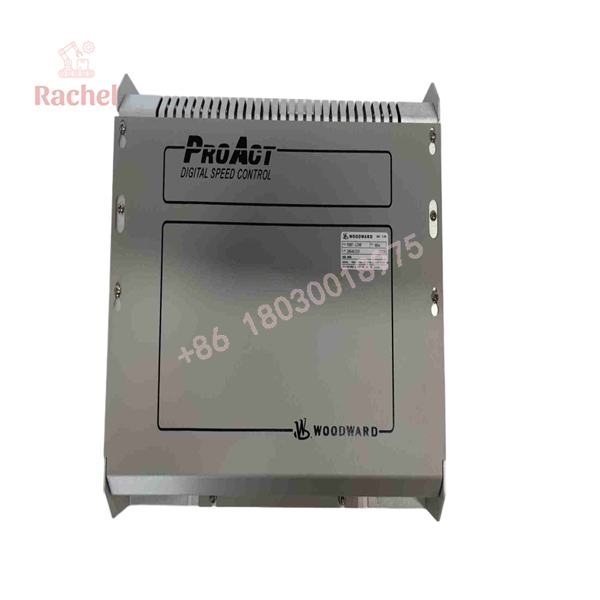

9907-1290

Application Scenarios & The “Trench” Experience

The classic failure is ugly. An emergency generator cranks, the engine starts, and then speed control refuses to stabilize. The mechanical system is fine. The actuator is fine. The problem turns out to be the old electronic speed controller that has been sitting in the cabinet for years.

The 9907-1290 is used in applications such as:

• Diesel Generator Sets — Engine Speed Governing — Processes magnetic pickup speed feedback and commands the compatible ProAct actuator for fuel control.
• Gas Engine Generator Sets — Prime-Mover Speed Control — Maintains commanded engine speed under changing electrical load.
• Mechanical Drives — Engine Speed Regulation — Controls engine speed where a ProAct actuator is used as the final fuel-control element.
• Emergency Power Systems — Standby Engine Control — Provides the electronic governor function required for stable engine operation during generator operation.
• Legacy ProAct Systems — 9905-463 Replacement — Provides the documented replacement path from the older ProAct Model II speed-control part number.

Field case — a plausible replacement scenario:
A maintenance crew is working on an emergency diesel generator during a scheduled outage. The engine starts, but the governor output hunts instead of settling at rated speed. The existing controller is an old 9905-463. The replacement list points to 9907-1290.

The mistake would be ordering the controller and assuming the job is finished.

The technician needs to document the old configuration first: magnetic-pickup wiring, actuator connections, speed setpoint circuitry, DIP-switch positions, and programmed parameters. A replacement controller that is electrically correct but configured incorrectly can turn a ten-minute hardware swap into several hours of commissioning work.

Transparency SOP: Quality Assurance & Testing

For New Surplus or previously stocked 9907-1290 units, the inspection process should include:

1. Inbound Inspection
   • Confirm the complete 9907-1290 part number.
   • Inspect the Woodward nameplate, serial/traceability information, connectors, enclosure, and mounting hardware.
   • Check original packaging and manufacturer labels where available.
   • Compare the hardware against known ProAct Model II construction.
2. Electrical Inspection
   • Verify the 24 VDC supply requirement before energization.
   • Inspect terminal blocks and connector pins for oxidation or mechanical damage.
   • Check for evidence of previous field modification or unauthorized wiring changes.
3. Live Rig Testing
   • Apply controlled DC power using an appropriate laboratory supply.
   • Verify startup behavior and diagnostic indications.
   • Simulate the appropriate speed-sensor input where the test fixture supports it.
   • Verify controller output behavior against the applicable Woodward test procedure.
4. Configuration Verification
   • Record available configuration parameters before shipment.
   • Record firmware/software information where the service interface exposes it.
   • Compare the configuration with the customer’s existing 9905-463 or 9907-1290 application.
5. Final QC & Packaging
   • Inspect all connector interfaces again.
   • Protect electronics against ESD.
   • Use anti-static packaging and mechanical cushioning.
   • Include the test record and serial-number traceability with the shipment.

Woodward’s documentation specifically establishes the 9907-1290 as the ProAct Model II replacement for 9905-463, so replacement testing should be based on the actual ProAct application, not a generic PLC power-up test.

The Veteran’s Tech Trap Guide

⚠️ Do not confuse 9907-1290 with 9907-1289.
This one catches people. 9907-1289 replaces 9905-462 / ProAct Model I; 9907-1290 replaces 9905-463 / ProAct Model II. Verify the old controller’s part number before ordering.

❗ Take a photo of every switch before pulling the old controller.
Seriously. DIP-switch settings and application configuration can be more important than the physical replacement itself. Document them before power is removed.

⚠️ Do not assume the actuator is interchangeable.
The speed controller and actuator form a control chain. Woodward’s documentation distinguishes ProAct speed controls from ProAct drivers and actuators. Verify the exact actuator model and electrical interface instead of matching components by appearance.

❗ Verify the magnetic-pickup circuit.
A speed controller can look completely healthy while receiving an unusable speed signal. Check sensor wiring, polarity, air gap, signal amplitude, and frequency at the controller terminals before condemning the controller.

⚠️ Do not assume every 9907-1290 has the same configuration.
A replacement unit may need application-specific setup. Record the original parameters and verify the replacement using the appropriate Woodward service documentation.

Frequently Asked Questions (FAQ for Conversion)

Q1: What exactly is Woodward 9907-1290?
It is a ProAct Model II digital speed controller with a high-output sensor circuit. It is used in engine speed-governing applications and works with compatible ProAct actuators.

Q2: Is 9907-1290 a replacement for 9905-463?
Yes. Woodward Application Note 51499 explicitly lists 9905-463 → 9907-1290 under the ProAct Model II speed-control replacement selection, with Manual 04121 applying to the series.

Q3: Can I replace a 9905-462 with 9907-1290?
No—not based on part number alone. Woodward identifies 9905-462 → 9907-1289 and 9905-463 → 9907-1290. These are different ProAct generations/configurations.

Q4: Is 9907-1290 hot-swappable?
Do not treat it like a hot-swappable PLC I/O module. It is part of an engine governor circuit with power, speed-sensor, actuator, and control connections. Follow the engine manufacturer’s shutdown/isolation procedure and Woodward installation instructions before removing it.

Q5: Is 9907-1290 discontinued?
Current secondary-market databases identify the part as discontinued by the manufacturer. That means procurement should be handled as a legacy/obsolescence item, with particular attention to condition, traceability, and replacement compatibility.

Q6: Is a surplus 9907-1290 necessarily refurbished?
No. Surplus describes the inventory channel, not the physical condition. A seller may have unused original packaging, never-used surplus, or refurbished stock. Ask for the actual condition, nameplate photograph, serial information, test report, and warranty terms. Do not equate “surplus” with “refurbished,” or “new” with “factory warranty.”

Q7: Why can a surplus unit cost less than direct OEM supply?
Legacy industrial controls often circulate through excess inventory, plant closures, discontinued-system stock, and independent automation distributors. A lower price does not establish equivalence to current OEM supply. For a governor controller, compare part number, hardware revision, condition, configuration, testing, documentation, and warranty before comparing price.
