Description
Product Introduction
The Woodward 5466-1158 is a MicroNet Simplex HDDIO-2 Smart-Plus module designed for Woodward MicroNet and MicroNet Plus turbine control systems. It combines 48 optically isolated discrete inputs with 24 discrete outputs, providing deterministic digital signal processing for gas turbines, steam turbines, compressors, and generator control applications.
Unlike earlier HDD modules, the 5466-1158 belongs to the Smart-Plus generation. It supports enhanced diagnostics while maintaining compatibility with Coder 4.06 systems that require an approved replacement for the discontinued 5466-258. For newer Coder 5.04 or later systems, Woodward recommends the 5466-1050 instead. Verify the installed Coder software before ordering.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Model | 5466-1158 |
| Product Family | MicroNet Plus Smart-Plus |
| Product Type | Simplex HDDIO-2 Module |
| Discrete Inputs | 48 Optically Isolated Channels |
| Discrete Outputs | 24 Channels |
| Input Update Time | 5 ms |
| Output Update Time | 5 ms |
| Time Stamp Resolution | 500 μs |
| Input Isolation | Galvanically Isolated |
| External Input Voltage | 18–32 VDC |
| Isolation Rating | 500 VDC to Earth, 1000 VDC to Control Common |
| Contact Wetting Supply | Isolated 24 VDC, 400 mA Maximum |
| Installation | MicroNet Plus Rack |
| Required Software | Coder 5.03 or later (Smart-Plus operation); approved Coder 4.06-compatible replacement for legacy HDD modules. |
Application Scenarios & The “Trench” Experience
A compressor refuses to enter automatic mode after a planned shutdown.
Every field switch operates correctly.
The emergency shutdown circuit tests normally.
Operators suspect the PLC program.
To be honest, that’s rarely where the problem starts.
After tracing the diagnostics, engineers discover that one discrete input bank on the existing HDD module has stopped updating. Installing a verified 5466-1158 restores all 48 inputs immediately because the problem was inside the aging I/O electronics—not the field devices.
Typical Applications
Gas Turbines — Startup sequencing — Processes permissive switches, shutdown contacts, and auxiliary equipment status.
Steam Turbines — Turbine protection — Monitors trip circuits while driving relay outputs.
Gas Compression — Compressor control panels — Interfaces limit switches, valve feedback, and safety interlocks.
Power Generation — Generator auxiliary systems — Controls breaker status, alarms, and digital interlocks.
Oil & Gas — Rotating equipment automation — Collects discrete field signals with deterministic response times.
Field Replacement Example
A combined-cycle power station experienced intermittent startup failures on one gas turbine. Diagnostic logs showed inconsistent updates from several discrete input channels while the CPU remained healthy. Engineers replaced the obsolete HDD module with a 5466-1158, verified the existing field termination modules, downloaded the controller configuration, and completed commissioning without modifying application logic. The unit returned to service during the same maintenance window.

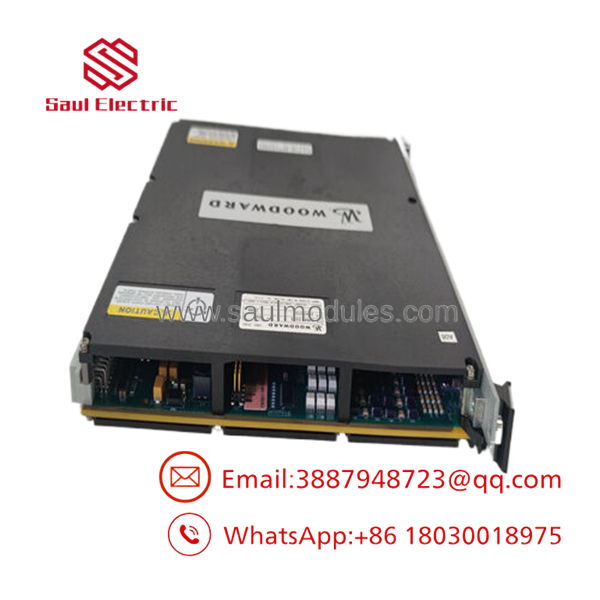

- 5466-1158

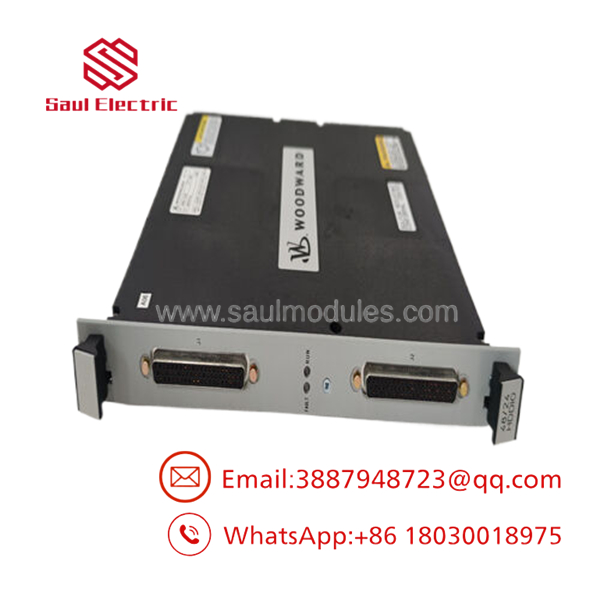

- 5466-1158
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on compatible Woodward MicroNet hardware.
- Inbound Inspection
- Verify Woodward serial number and hardware revision.
- Inspect PCB assemblies and edge connectors.
- Check for repaired traces, corrosion, or component replacement.
- Live Rig Testing
- Install the module in a compatible MicroNet chassis.
- Confirm successful initialization.
- Verify CPU communication.
- Simulate all 48 discrete inputs.
- Verify operation of all 24 outputs.
- Electrical Parameter Checks
- Verify input isolation.
- Test output circuitry.
- Perform extended burn-in testing.
- Monitor onboard diagnostics.
- Firmware & Compatibility Verification
- Record hardware revision.
- Verify compatibility with the customer’s CPU model.
- Confirm Coder software requirements.
- Final QC & Packaging
- Functional inspection.
- Anti-static packaging.
- Shock-resistant shipping.
- Complete serial number traceability.
The Veteran’s Tech Trap Guide
⚠️ Don’t assume every MicroNet system uses the same replacement module.
The 5466-1158 is intended primarily for Coder 4.06 systems replacing the obsolete 5466-258. Systems running Coder 5.04 or later normally use 5466-1050 instead. Verify the software version before purchasing.
⚠️ Check the CPU generation first.
MicroNet installations span multiple processor generations. Always confirm the installed CPU model and Coder revision before inserting a Smart-Plus module.
❗ Inspect the FTM and cables before replacing the I/O module.
In our field experience, damaged High-Density Analog/Discrete cables or loose Field Termination Modules create symptoms that look identical to a failed HDDIO module.
⚠️ Label every field connection.
Forty-eight digital inputs can disappear into a cabinet quickly. Photograph the wiring before disconnecting anything. It saves hours during startup.
Frequently Asked Questions (FAQ)
Q1. What is the Woodward 5466-1158?
The 5466-1158 is a MicroNet Simplex HDDIO-2 Smart-Plus module providing 48 optically isolated discrete inputs and 24 discrete outputs for Woodward MicroNet control systems.
Q2. Is the 5466-1158 a replacement for the 5466-258?
Yes. Woodward designates the 5466-1158 as the approved replacement for the obsolete 5466-258 in systems running Coder 4.06. For Coder 5.04 and newer, Woodward recommends 5466-1050.
Q3. Does this module require calibration?
No. The HDDIO Smart-Plus module contains no adjustable potentiometers. A replacement module with the same part number can be installed without calibration, provided system compatibility is confirmed.
Q4. Can it be replaced while the turbine is operating?
No. Removing the module with the control system energized can interrupt permissive logic and shutdown circuits. Follow the plant’s lockout/tagout procedures and Woodward maintenance instructions before replacement.
Q5. What Field Termination Modules are supported?
The module supports two common configurations: a 48/24 Discrete FTM or two 24/12 Discrete FTMs, connected through High-Density Analog/Discrete cables.
Q6. What warranty is typically available?
Most industrial automation suppliers provide a 12-month functional warranty on professionally tested New Surplus or refurbished modules. Warranty terms vary by supplier.
Q7. What should be verified before installation?
Verify the 5466-1158 part number, CPU model, Coder software revision, MicroNet rack slot, Field Termination Module configuration, High-Density cable condition, and I/O mapping. Before returning the turbine or compressor to service, perform a complete functional test of all 48 discrete inputs, 24 outputs, startup permissives, emergency shutdown circuits, and relay logic.
