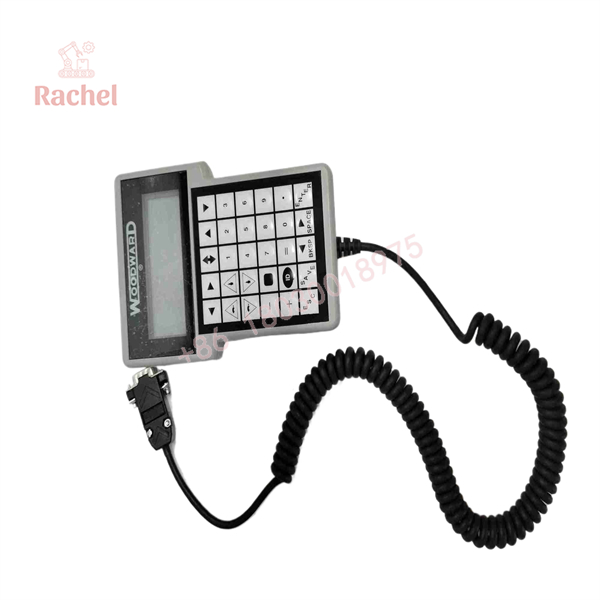

Woodward 9907-205 Digital Control Handheld Programmer

Product Introduction & Engineering Value

The 9907-205 exists to give technicians direct access to configuration and operating parameters on compatible Woodward controls. On a 723 system, it connects temporarily to the controller’s J1 serial port rather than acting as the governor itself. This makes it a service and commissioning tool for parameter adjustment, monitoring, and troubleshooting.

The distinction matters when sourcing legacy Woodward hardware. A 9907-205 cannot replace a 723 controller, DSLC, or MSLC control module. It is the operator/programming interface used to communicate with those controls.

Technical Specifications

Woodward’s 723 manual describes the programmer as the tool used for adjusting and monitoring the 723 control, while the 723 DCS manual says it is used to adjust the control’s setpoints and parameters.

The 7–28 VDC figure is reported by secondary-market documentation; it is not the primary specification I would use to determine compatibility without checking the actual control/application manual.

What the 9907-205 Actually Does

Think of the 9907-205 as a service terminal for older Woodward control systems.

A typical workflow is:

9907-205 → serial connection → Woodward control → parameter access → adjustment / monitoring

Depending on the connected controller, the technician can use the programmer to work with items such as:

• Speed-control parameters
• Operating setpoints
• Control configuration
• Monitoring values
• Commissioning adjustments
• Diagnostic information

For the 723, Woodward specifically states that the programmer plugs into serial port J1.

Important distinction

This distinction eliminates one of the most common cataloging errors surrounding this part number.

9907-205

9907-205

Field Application & Practical Scenario

Example: Commissioning a legacy 723 speed-control system

A maintenance engineer replaces a failed or damaged 723 control in an engine-generator system. The new control powers up, but its application parameters still need to be checked against the plant’s original configuration.

The 9907-205 can be connected to the control’s service interface to:

1. Access the controller.
2. Review programmed parameters.
3. Verify speed-related settings.
4. Adjust applicable setpoints.
5. Monitor operating values.
6. Confirm the control response during commissioning.

Woodward’s 723 documentation specifically describes the hand-held programmer as the interface for adjusting and monitoring the control.

Other documented service contexts

DSLC systems

• Configuration
• Parameter adjustment
• Commissioning
• Troubleshooting

Woodward states that DSLC and MSLC systems were configured using the 9907-205 Handheld Programmer.

ProAct I/II systems

Woodward’s ProAct documentation also identifies 9907-205 and provides the programmer’s physical/cable configuration.

QA & Testing SOP for New Surplus / Refurbished Stock

Because the 9907-205 is an interface device, display and keypad operation alone do not prove compatibility.

1 — Identity verification

Check:

• Woodward nameplate
• Part number 9907-205
• Serial number, if present
• Physical label condition
• Cable and connector configuration

2 — Physical inspection

Inspect:

• LCD/display area
• Keypad membrane
• Housing
• Connector
• Cable insulation
• Cable-to-connector termination
• Signs of liquid contamination or impact

Woodward documentation shows a dedicated connecting cable and D-type connector arrangement for the programmer.

3 — Power-up test

Verify:

• Display initialization
• Keypad response
• Navigation keys
• Numeric keys
• ENTER / ESC / SAVE functions
• No obvious display defects

4 — Communication test

A proper test should connect the 9907-205 to a compatible Woodward control and verify:

• Controller recognition
• Parameter readout
• Parameter navigation
• Data entry
• Save/write operation
• Monitoring functions

5 — Documentation

For New Surplus or refurbished inventory, record:

• Part number
• Serial number
• Cable condition
• Display condition
• Keypad test
• Connected control used for testing
• Communication test result
• Warranty

Veteran’s Tech Trap Guide

⚠️ Trap 1 — Calling 9907-205 a governor

This is the biggest cataloging error.

Woodward identifies 9907-205 as a hand-held programmer, not the governor itself.

PRO TIP: If a supplier’s specification sheet describes 9907-205 as a “speed controller,” “steam turbine governor,” or “PLC,” ask for the actual nameplate photograph and original documentation.

⚠️ Trap 2 — Assuming every Woodward control supports it

The 9907-205 is associated with several legacy Woodward platforms, but compatibility is controller-specific.

Woodward explicitly documents it for the 723 and states that DSLC/MSLC systems were configured with the programmer.

PRO TIP: Identify the controller model first, then verify that the controller’s manual specifies 9907-205.

⚠️ Trap 3 — Buying a programmer without the correct cable

The programmer is intended to connect to the target controller through its appropriate serial connection. Woodward’s ProAct documentation shows the programmer with a 54-inch cable and D connector.

PRO TIP: When buying surplus inventory, confirm whether the 9907-205 includes its original connecting cable.

⚠️ Trap 4 — Ignoring lifecycle status

Woodward’s support knowledge base states that the 9907-205 programmer was made obsolete in September 2022 and discusses aftermarket replacement options for first-generation DSLC applications. Woodward also states that it has not tested the aftermarket solution and excludes technical liability for it.

That makes genuine existing-stock 9907-205 units particularly relevant for maintaining legacy systems.

Dynamic FAQ

What is Woodward 9907-205?

It is a hand-held programmer used to configure, adjust, and monitor compatible Woodward controls, including the 723 Digital Speed Control.

Is 9907-205 a Woodward governor?

No. It is a programming and monitoring terminal/accessory. The actual governor or digital control is a separate device.

What control does 9907-205 connect to?

Woodward documentation specifically identifies the 723 Digital Speed Control, with connection through its J1 serial port. Woodward also documents the programmer for DSLC/MSLC systems.

Does 9907-205 include a cable?

Woodward documentation for the programmer identifies a 54-inch connecting cable with a D connector. When purchasing surplus stock, confirm whether the particular unit being offered includes the cable.

Is 9907-205 still manufactured?

Woodward’s support knowledge base states that the 9907-205 was made obsolete in September 2022.

Can I use a modern programmer instead?

Not automatically. Woodward discusses an aftermarket replacement for first-generation DSLC applications but explicitly states that Woodward has not tested that aftermarket solution and excludes technical liability for it.

What does New Surplus mean for 9907-205?

New Surplus generally means unused existing inventory rather than current factory production. For this obsolete accessory, procurement should include the actual Woodward label, serial number, cable condition, communication test results, and written warranty.

Engineering Takeaway

The Woodward 9907-205 is a legacy hand-held programmer, primarily documented for the 723 Digital Speed Control and also used with Woodward DSLC/MSLC systems. It connects to the target control through a serial interface and provides the technician with access to configuration, adjustment, and monitoring functions.

For replacement sourcing, verify 9907-205 itself, the target Woodward controller, the correct connecting cable, and actual communication functionality. Since Woodward declared the programmer obsolete in September 2022, a tested original unit can be materially more useful for maintaining an installed legacy system than an incorrectly described substitute.
