Product Introduction & Engineering Value
Few failure modes are as jarring to an islanded electrical system as circulating currents destabilizing a parallel generator array. The Woodward 8440-1706 neutralizes this risk entirely by combining phase matching, frequency equalization, and active voltage trimming onto a single microprocessing core. Operating inside the well-regarded SPM-D11 family, this controller ensures your generator breaker closes only when phase angles and bus metrics align precisely.
Engineers specify the /LSXR variant because it bridges localized speed management with plant-wide power management parameters. Instead of relying on separate, sluggish auxiliary bias loops to match generator parameters to a hot busbar, this module monitors true RMS inputs directly to issue immediate corrections. It provides a reliable hardware foundation for operators migrating away from manual, panel-metered synchronizing routines.
Technical Specifications
- Measuring Input Voltage: 100 Vac nominal baseline threshold
- Current Input Rating: Configured for ../5 A current transformer (CT) drops
- Control Power Supply: 12/24 Vdc operational input window
- Synchronization Outputs: Selectable discrete or analog bias commands for speed and voltage adjusters
- Measurement Execution: True RMS tracking across 1-phase or 2-phase configurations
- Operator Display: Two-line integrated LCD screen with a front-face electronic synchronoscope matrix
- Protection Functions: Phase angle error tracking, frequency dead-band limits, and breaker closure delay confirmation
- Housing Profile: Standard DIN flush-mount enclosure (Type APRANORM DIN 43 700)
Field Application & The “Trench” Experience
The Out-of-Phase Breaker Bang
During a storm-induced main grid drop at an isolated mine site, the standby diesel generator came up to speed but refused to parallel with the spinning turbine bus. The site team was forced to manually close the breaker, resulting in a violent, high-torque clunk that severely stressed the generator mounts. Diagnostic analysis revealed that their old analog synchronizer had suffered component aging, throwing its phase-angle calculation off by almost 12 degrees. We replaced the faulty asset with an 8440-1706 unit, configured the nominal 100 Vac scaling parameters, and let the auto-synchronization routine take control. On the very next cycle, the electronic synchronoscope locked dead-center and dropped the breaker silently, without a single amp of back-feeding.
Targeted Engineering Scenarios
- Parallel Generator Isochronous Load Distribution: Equalizing active kilowatt loads proportionally across multiple dissimilar generator sets running in an islanded microgrid.
- Automatic Utility Grid Synchronization: Matching large standby marine generator parameters cleanly to plant busbars during peak-shaving routines.
- Single-Breaker Closure Protection Arrays: Serving as a protective interlock layer to block breaker execution if a phase mismatch occurs across isolated substations.
Transparency SOP: QA & Testing
Every 8440-1706 platform that leaves our engineering facility undergoes a structured, multi-tier validation process:
- Internal Storage Check: We test the baseline microcode retention registers to confirm the internal parameters remain stable without external voltage dependencies.
- Three-Phase Alternator Simulation: The unit is mounted to an automated test panel that feeds dynamic, out-of-phase 100 Vac inputs across the measuring channels.
- Breaker Window Trigger Verification: We verify that the internal synchronization relays close precisely at the zero-degree crossing point under various slip frequencies.
- Current Transformer (CT) Burden Verification: The current inputs are exposed to full 5-amp parameters to confirm precision load monitoring remains accurate.

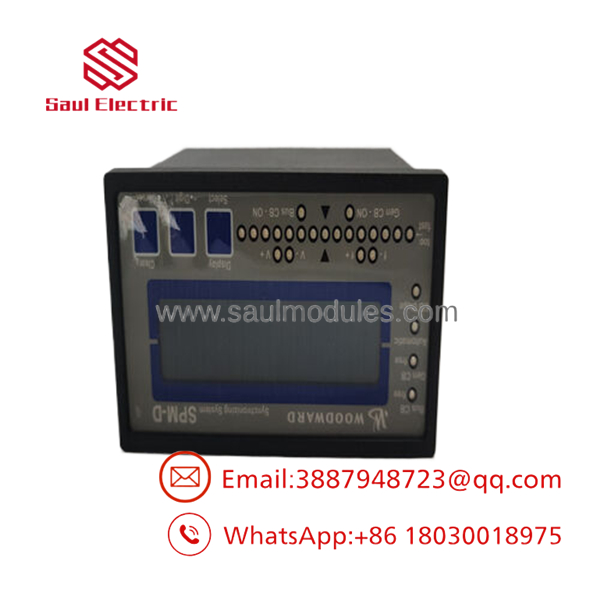

- 8440-1706

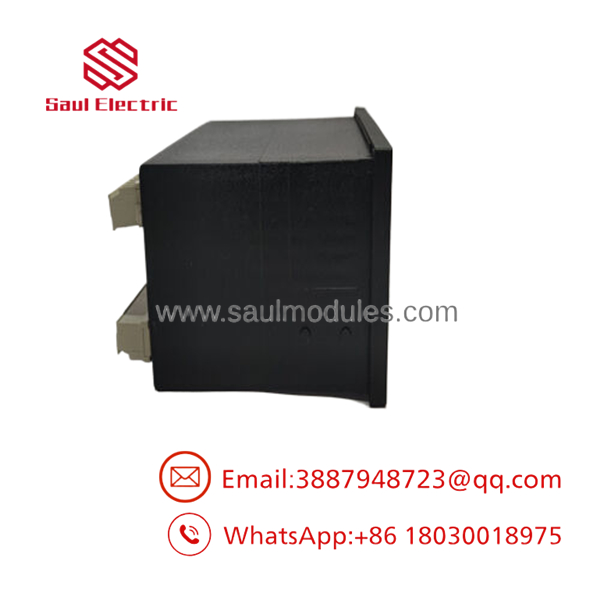

- 8440-1706
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ THE CURRENT TRANSFORMER OPEN-CIRCUIT THREAT: Never disconnect the terminal blocks on the rear of the 8440-1706 while the primary generator is running under load. The current inputs operate on a ../5 A CT drop. Opening that secondary loop while current is flowing will create thousands of volts of destructive inductive kickback, frying the module’s internal scaling boards instantly and creating a severe arc-flash hazard in the panel.
PRO TIP: When migrating an installation from a standard SPM-D unit to the newer SPM-D2 replacement lines (like the 8440-2165), be aware that the hardware interface profiles are different. While the core parameters migrate cleanly over a service serial interface, the physical mounting dimensions and connection footprints will require back-plate retrofitting.
Dynamic FAQ
Q: Does the 8440-1706 require an external automated voltage regulator (AVR) to manage voltage matching?
A: Yes. The 8440-1706 acts as the supervisor; it calculates the tracking deviance and sends analog bias or discrete pulsing commands to your generator’s existing AVR and electronic speed governor to trim them into alignment.
Q: Can I configure this controller directly through the front panel faceplate?
A: Yes, the two-line LCD screen and tactile pushbuttons allow full adjustment of parameters, phase windows, and time delays directly at the panel without needing a PC tool.
Q: How does the /LSXR suffix differentiate this model from other standard SPM-D11 models?
A: The /LSXR designation denotes specialized internal software programming designed specifically for active Load Sharing and Crossline Synchronization across parallel assets, as opposed to basic passive monitoring units.
Q: What is the estimated lifecycle of the data-retention memory on a surplus 8440-1706?
A: These legacy models utilize dedicated internal capacitors and localized backup memory blocks to keep user configurations safe during storage. Our testing team confirms communication integrity and parameters are fully backed up on every unit we stock.
