Product Introduction & Engineering Value
When multi-axis servo coordination on an active processing line loses its master clock, entire production lines grind to a halt. The Yaskawa CP-9200SH/CPU module acts as the core command brain for the ultra-high-speed CP-9200SH machine controller series, distributing synchronized target vectors across SVA analog motion and PO-01 pulse generator modules.
Designed specifically for complex industrial machinery requiring tight velocity and torque coupling, this CPU module handles low-latency scan cycles without processing bottlenecks. Field engineers rely on its modular rack insertion design to execute drop-in replacements, maintaining machine timing precision without forcing costly complete panel retrofits.
Technical Specifications
- Control Platform: Yaskawa CP-9200SH Machine Controller System
- Processor Function: Central sequence and motion task calculation unit
- Programming Interface: CP-717 Control Pack Engineering Tool
- System Expansion: Supports up to 4 interconnected mounting bases (short/long base options)
- Motion Module Integration: Controls up to 11 SVA modules (44 analog servo axes) or 16 PO-01 pulse modules (64 axes)
- Diagnostic Panel: Front-mounted status LEDs (RUN, ERR, ALM, MEMORY)
- Operating Ambient: 0°C to +55°C (32°F to 131°F)
- Humidity Tolerance: 5% to 95% RH (non-condensing)
Field Application & The “Trench” Experience
A high-speed gantry loader on an automotive stamping line experienced intermittent axis-desynchronization faults caused by memory trace degradation on a 20-year-old CPU card. The plant was facing severe contractual penalties for late deliveries, and rebuilding the cabinet with modern MP-series controllers would require weeks of rewiring. The maintenance team sourced a verified surplus CP-9200SH/CPU card, set the rotary hardware selection switches, and loaded the original project memory file via CP-717. The controller synchronized all axis loops on the first power cycle, returning the stamping cell to full output within 45 minutes.
Targeted Application Scenarios:
- Multi-Axis Flying Shear Systems: Synchronizing high-speed cutoff knife rotary positions against continuous web feed encoders.
- Automated Glass Handling Gantry Units: Coordinating multi-axis servo interpolated trajectories across expansion base racks.

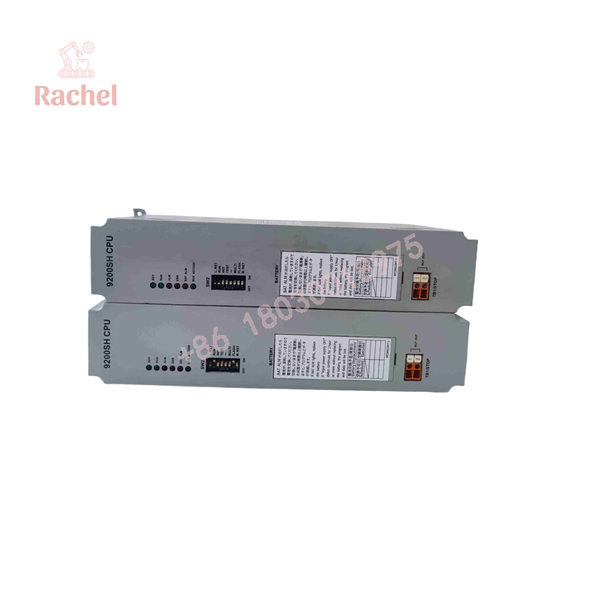

CP-9200SH/CPU

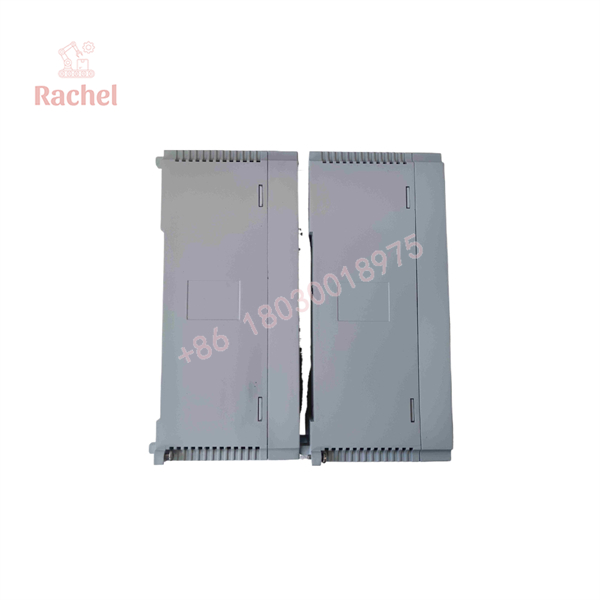

CP-9200SH/CPU
Transparency SOP: QA & Testing
1.Physical Connector & PCB Audit:10 min.
Perform optical magnification checks on multi-pin backplane connectors, edge tracks, and surface-mount components for component swelling, pin deflection, or thermal oxidation.
2.Backplane Power Rail Stress Test:30 min.
Seat the CPU module into a CP-9200SH base rack powered via a standard PS-series module to verify internal voltage rail regulation under cold-boot and warm-restart conditions.
3.CP-717 Communications & Memory Verification:1 hr.
Hook up the programming port to a test PC running CP-717; verify flash memory upload/download cycles, register clear routines, and scan-timer performance.
4.Multi-Axis Servo Loop Burn-In:24 hrs.
Run a multi-axis test rig loop connecting SVA modules to verify real-time motion command transmission and clock synchronization over extended thermal testing cycles.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
Power Sequence Hazard
ALWAYS power ON all connected SERVOPACK servo drives at the same time as, or BEFORE, turning ON the CP-9200SH rack. If the CP-9200SH CPU initializes first while SERVOPACK power is delayed, incomplete I/O handshake signals can cause unpredicted machine jump motions or fault conditions.
PRO TIP: When replacing a CP-9200SH/CPU module, check whether your unit uses an external battery backup for volatile RAM retention. Never pull the old CPU from the rack while the cabinet is unpowered without first confirming that the program logic is backed up to flash memory or downloaded via the CP-717 software.
Dynamic FAQ
- Q: Is the CP-9200SH/CPU module cross-compatible with standard Yaskawa MP-series machine controllers?
- A: No, the CP-9200SH architecture uses a dedicated backplane, power supply, and software toolset (CP-717) distinct from the MP2000/MP3000 series platforms.
- Q: How many total motion axes can a single CP-9200SH CPU manage?
- A: Depending on the expansion modules used across the backplane slots, a single CPU can manage up to 44 analog servo axes (via SVA modules) or up to 64 pulse axes (via PO-01 modules).
- Q: Are these legacy Yaskawa modules brand new or refurbished stock?
- A: Because the CP-9200SH series was discontinued by the OEM, our stock consists of fully bench-tested, verified New Surplus and high-grade refurbished units.
- Q: What warranty comes with this CPU board?
- A: Every CP-9200SH/CPU module ships fully tested and backed by our standard 12-month full functional replacement warranty.
