Description
Product Introduction
The Yaskawa JGSM-06 is a compact single-axis position controller designed to provide dedicated motion profiling, pulse/direction generation, and positioning sequences for legacy Yaskawa AC servo systems. Functioning as the localized motion interface between a high-level PLC or machine control system and a servo amplifier, the JGSM-06 offloads precise pulse-train math, homing routines, and target position logic from the main controller.
Its industrial housing mounts directly inside control enclosures, using screw terminal blocks to interface power, limit switches, end-of-travel interlocks, and pulse outputs. When a legacy packaging skid or indexing conveyor stalls due to a failed position controller, swapping in a pre-tested JGSM-06 module restores target positioning without expensive PLC re-engineering.
Key Technical Specifications
| Parameter | Value / Specification |
| Model Number | JGSM-06 |
| Manufacturer | Yaskawa Electric |
| Product Category | Motion & Position Control Module |
| Number of Controlled Axes | 1 (Single-Axis Control) |
| Output Type | Pulse Train / Direction Signals |
| Wiring Connection | Integrated Screw Terminal Blocks |
| Status Indicators | Front Panel Diagnostics / Power / Run LEDs |
| Mounting Format | Cabinet Panel Mount / DIN Rail |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
Application Scenarios & The “Trench” Experience
A food packaging plant hit a line stoppage when an automated index conveyor failed to advance trays to the heat-sealing station. The servo pack sat idle because the upstream position controller stopped emitting pulse commands, locking the machine in a perpetual position-wait state. Troubleshooting confirmed that ambient electrical noise and a 24V supply transient had destroyed the output driver circuit on the original JGSM-06 card. Sourcing an upgraded modern controller platform would have required 3 days of cabinet rewiring and PLC ladder logic modification. Replacing the faulty module with a bench-verified JGSM-06 unit brought the indexing line back into full production in under 40 minutes.
- Rotary Indexing Tables: Executing precise fixed-angle indexing for assembly and inspection stations.
- Packaging & Filling Machines: Controlling feed-screw positioning and intermittent film pushers.
- Material Conveying: Managing single-axis stop-and-go transfer shuttles and cut-to-length feeds.
- Light Automation Skids: Providing standalone position control for dedicated pick-and-place mechanisms.
Transparency SOP: Quality Assurance & Testing
We never ship raw, unverified surplus electronics. Every Yaskawa JGSM-06 controller undergoes a 5-step bench test before entering static-shielded storage:
- Inbound Physical Check: Inspect terminal screws, housing clips, and front panel indicators for cracks, corrosion, or physical wear.
- Cold Component Audit: Check internal power rails and optocouplers for electrical shorts before applying line power.
- Power-On Diagnostic: Apply logic power to verify normal boot sequences, LED status indicators, and power regulation stability.
- Pulse Output & Loop Verification: Connect the unit to an oscilloscope and an active Yaskawa servo amplifier, verifying clean pulse generation, direction switching, and smooth acceleration/deceleration ramps.
- Clean & ESD Packaging: Clean the enclosure, log hardware revisions, and enclose the unit in metallic ESD anti-static packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Terminal Torque & Wiring Integrity: Over-tightening terminal screws on legacy modules like the JGSM-06 can fracture internal solder pads on the PCB. Hand-tighten connections firmly, but do not apply excessive force.
❗ Verify Pulse Signal Compatibility: Ensure the pulse input configuration of your downstream servo drive (e.g., differential line receiver vs. open-collector) matches the output interface of the JGSM-06 to avoid missed pulses or positioning drift.
⚠️ Noise Isolation on I/O Lines: Route pulse-train and limit-switch cables away from high-voltage AC motor leads. Unshielded control cables running parallel to servo power lines can induce electrical noise, causing false homing trips or positioning errors.

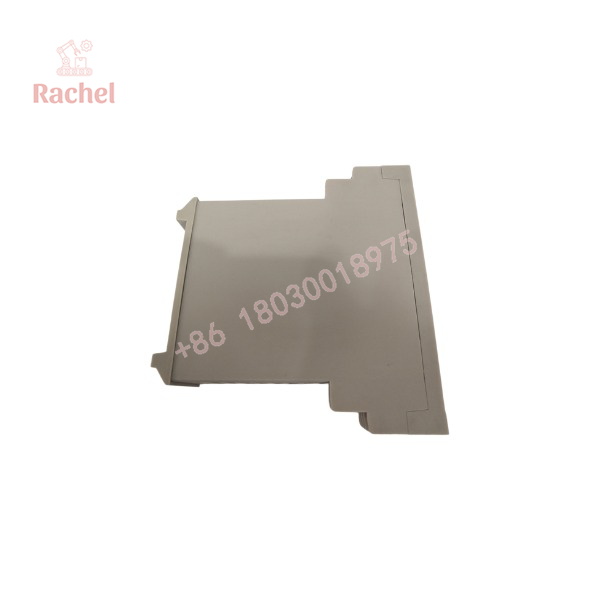

JGSM-06

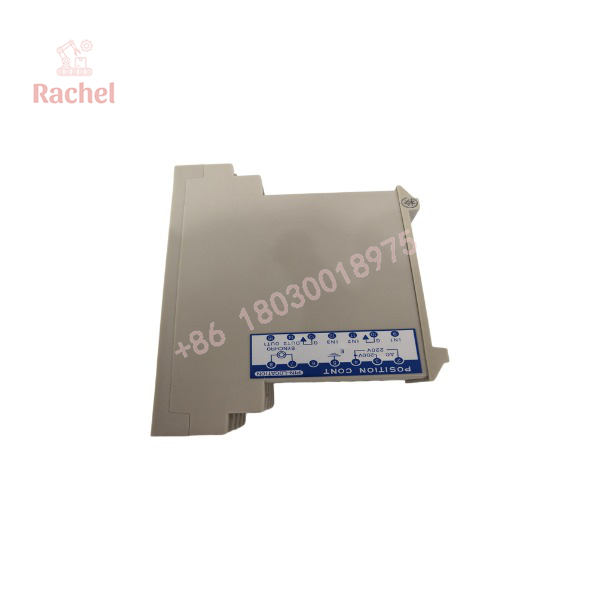

JGSM-06
Frequently Asked Questions (FAQ)
Q: Do I need special software to program the JGSM-06?
A: Depending on the specific configuration revision, many parameters on these standalone modules are set via onboard potentiometers, DIP switches, or basic serial handshakes.
Q: Can the JGSM-06 control non-Yaskawa servo drives?
A: If the third-party drive accepts standard pulse/direction inputs compatible with the JGSM-06’s output levels, it can command other servo systems. However, native pairing with Yaskawa drives is standard.
Q: What causes the output pulse signal to drop out?
A: Common causes include blown optocouplers from external 24V surges, loose terminal connections, or tripped hardware limit switch inputs.
Q: What warranty coverage is provided with this unit?
A: Every Yaskawa JGSM-06 module includes a full 12-month operational replacement warranty from our component testing facility.
