Yokogawa AAI141-H50 S2 CENTUM VP Analog Input Module

Description

Product Introduction

The Yokogawa AAI141-H50 S2 is a high-density, 16-channel analog input card designed for Yokogawa CENTUM VP and CS 3000 Distributed Control Systems (DCS). Operating as a primary interface for process instrumentation, the module receives 4-20mA DC current signals from pressure, temperature, level, and flow transmitters across process plants.

The -H50 suffix designates that the module supports dual-way HART digital pass-through communication alongside standard 4-20mA analog signals, enabling online device diagnostics and remote transmitter calibration. The S2 designation denotes Style S2 hardware, featuring enhanced conformal coating on internal printed circuit boards to resist corrosive airborne gases in chemical and refining environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture an ethylene cracker plant operating continuously under strict temperature and pressure tolerances. An aging analog input card on a field node develops an internal reference drift, causing erratic 4-20mA readings across multiple flow control loops. Control room operators suddenly see false low-flow alarms, threatening an automatic unit trip. Swapping in a pre-tested Yokogawa AAI141-H50 S2 replacement module re-establishes precise current sampling and HART instrument communication instantly, stabilizing loop feedback before production drops offline.

Primary Field Applications:

• Refining & Petrochemical Processing: High-density flow, pressure, and level monitoring on continuous distillation columns and hydrocrackers.
• Oil & Gas Offshore Platforms: Real-time process variable acquisition integrated into wellhead control and separation skids.
• Power & Utility Generation: Boiler feedwater control, steam temperature acquisition, and environmental stack monitoring loops.

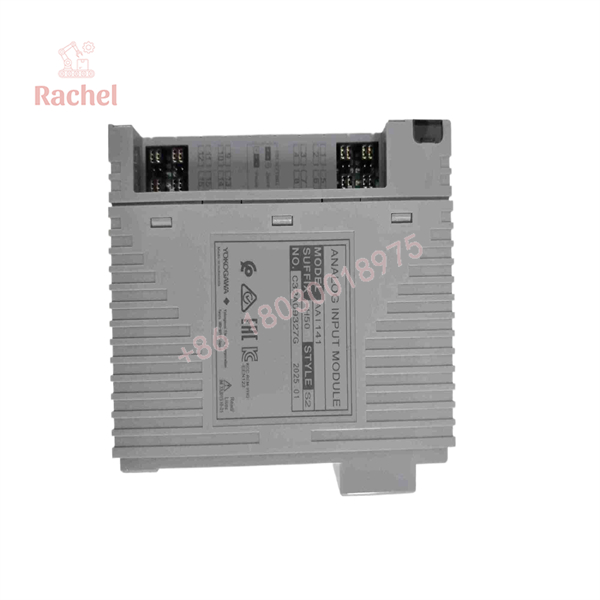

AAI141-H50 S2

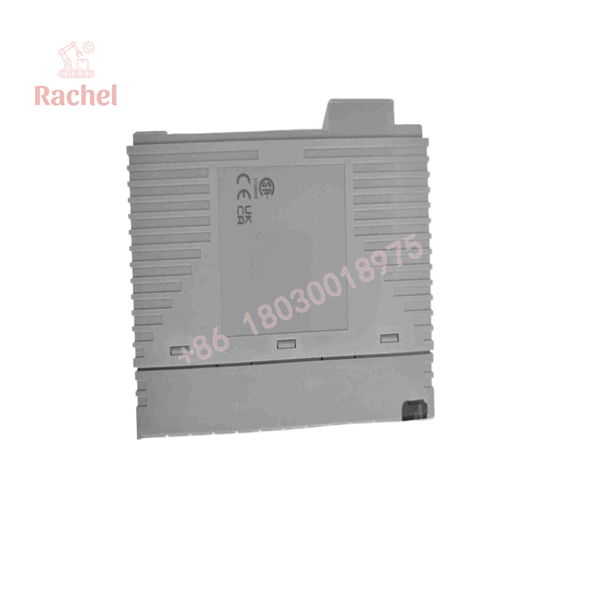

AAI141-H50 S2

Transparency SOP: Quality Assurance & Testing

DCS I/O modules directly feed central controller safety logic. We subject every Yokogawa AAI141-H50 S2 module to a rigorous 5-step hardware qualification procedure before adding it to shippable inventory:

1. Inbound Visual & Conformal Check: Inspection of card edge connectors, guide rails, terminal shield plating, and Style S2 conformal coating condition under UV light.
2. Backplane Boot & Node Diagnostics: Inserting the module into a live CENTUM VP test node (RIO/FIO subrack) to verify power-up handshakes and diagnostic LED states.
3. 16-Channel 4-20mA Precision Calibration: Sweeping signal generators across all 16 channels (4mA, 8mA, 12mA, 16mA, 20mA) to verify ADC linearity within OEM tolerances.
4. HART Protocol Pass-Through Verification: Connecting HART-enabled smart transmitters to confirm bi-directional digital data transfer to FieldMate asset management software.
5. ESD Cleaning & Protective Packaging: Contact restoration, anti-static vacuum wrapping, and high-density foam shipping protection.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Mind Channel-to-Channel Isolation Constraints: The AAI141 is a non-isolated channel module (all 16 channels share a common ground reference on the field side). If your field transmitters have ground loops or non-isolated power sources, stray ground currents will cause measurement errors across adjacent channels. For full channel-to-channel isolation, use the Yokogawa AAI143 series instead!
• ❗ Verify Terminal Block Compatibility: The AAI141 module can be mated with screw terminal blocks (KS1) or pressure-clamp terminal blocks (N-ATK). Ensure you transfer or match the correct terminal block assembly (e.g., AAI141-H50/K4A00) during a live swap.
• ⚠️ Confirm Module Style Code (S1 vs. S2): While Style S1 and Style S2 modules are functionally interchangeable in most racks, Style S2 includes upgraded component tolerances and conformal coating. Avoid replacing an S2 module with an older S1 card in high-humidity or corrosive (sulfur/H2S) environments.
• ❗ Manage HART Software Enablement: Installing an AAI141-H50 module into a slot previously occupied by a non-HART card (AAI141-S00) requires updating the I/O module definition in the CENTUM System Builder software to enable HART pass-through polling.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I hot-swap the Yokogawa AAI141-H50 S2 in a running CENTUM node?

A: Yes, Yokogawa FIO modules support hot-swapping under power. However, ensure that control loops tied to those 16 channels are placed in manual mode or bypassed in software before pulling the card.

Q: What is the difference between AAI141-H00 and AAI141-H50?

A: The -H00 model is a standard dual-channel HART-capable module without explosive atmosphere approvals, whereas the -H50 variant includes intrinsic safety and explosion-proof field interface compliance for hazardous area applications.

Q: Does the AAI141-H50 S2 supply transmitter power (2-wire loop power)?

A: No, the AAI141 is a current input card. Loop power must be provided by external 24V DC field power supplies or distribution terminal blocks unless used with active 4-wire transmitters.

Q: What warranty is provided with this surplus Yokogawa module?

A: Every Yokogawa AAI141-H50 S2 module supplied from our inventory carries a full 12-month replacement warranty.

Q: Why purchase new surplus or refurbished AAI141 modules instead of ordering directly from Yokogawa?

A: OEM factory production lead times for specialized DCS cards can stretch for several months. Sourcing verified surplus or refurbished inventory resolves emergency downtime immediately while maintaining 100% OEM hardware compatibility.
