Description
Product Introduction
The Yokogawa ADV569-P00 is a high-density 64-channel digital output module designed for Yokogawa CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). Built for space-constrained rack environments within the FIO architecture, it doubles the channel density of standard 32-channel cards, enabling Field Control Stations (FCS) to manage massive numbers of discrete output devices—such as interposing relays, solenoid valves, status lamps, and alarm panels—from a single slot.
Utilizing dual 40-pin MIL-type system cable connectors on its front interface, the ADV569-P00 interfaces directly with terminal boards (such as the AEA4D or AEP7D) via pre-assembled signal cables. It features full optical isolation between internal bus logic and field circuits, as well as full dual-redundancy support, allowing two ADV569-P00 cards installed in paired slots to operate with zero-glitch automatic failover.
Key Technical Specifications
| Parameter | Value |
| System Architecture | Yokogawa CENTUM VP / CENTUM CS 3000 FIO Series |
| Output Channel Count | 64 Channels (2 groups of 32 channels) |
| Rated Load Voltage | 24 V DC (Operating range 20.4 V to 28.8 V DC) |
| Max Load Current | 0.1 A per channel (2.4 A max per 32-channel group) |
| Output Type | Transistor Output (Sink or Source depending on terminal board) |
| Off-State Leakage Current | 0.1 mA maximum |
| Response Time | \le 1 ms (OFF to ON / ON to OFF) |
| Isolation | Optical isolation between field signals and internal bus (500V AC withstand) |
| Connection Interface | Dual 40-pin MIL connectors (for ribbon / KS system cable linking) |
| Module Redundancy | Dual-redundant pair configuration supported in adjacent slots |
| Power Consumption | 24 V DC internal bus power, 200 mA typical |
| Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
Application Scenarios & The “Trench” Experience
In large-scale chemical complexes, offshore production platforms, and power plants, cabinet footprint is a premium. When expanding a DCS cabinet that is already out of spare slots, replacing lower-density output cards with 64-channel ADV569-P00 modules doubles output capacity without requiring additional I/O node units. During high-throughput batch sequences, the module delivers sub-millisecond execution across dozens of fast-acting pneumatic actuators simultaneously while maintaining full isolation against electrical noise.
- Petrochemical & Refining – High-density control of interposing relay panels, pump start/stop interlocks, and local indication light trees.
- Offshore Oil & Gas Rigs – Space-critical ESD (Emergency Shutdown) and fire & gas annunciator output management.
- Power Generation Plants – Driving multi-channel trip matrices, turbine trip interlocks, and sequence-of-events (SOE) status outputs.
- Water Treatment & Utilities – Managing valve manifold arrays and dosing pump run commands across centralized control cabinets.

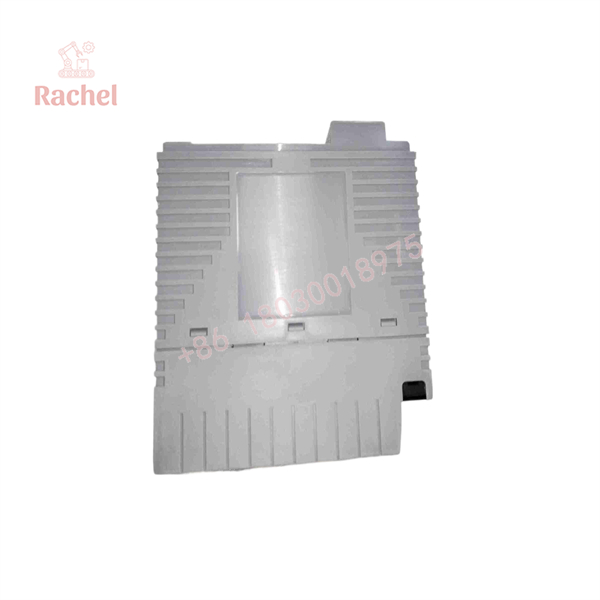

ADV569-P00

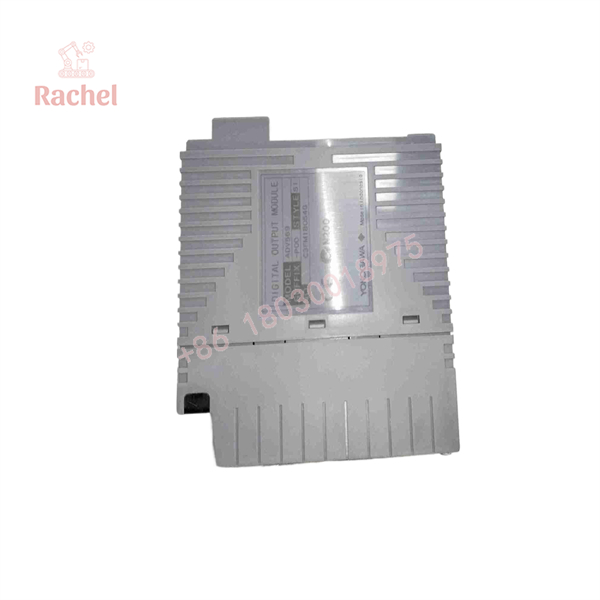

ADV569-P00
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Yokogawa CENTUM FIO test racks. Every surplus or refurbished ADV569-P00 undergoes a strict 5-stage verification process before shipping:
- Inbound Physical Inspection: Complete check of backplane edge connectors, dual 40-pin MIL header pins, side card latches, and internal PCB solder points.
- Backplane Power-On & LED Diagnostics: Module inserted into an active Yokogawa FIO node unit; internal power rails, heartbeat status, and
READYLED verified. - 64-Channel Load & Switching Benchmark: All 64 channels individually loaded with 24V DC / 100 mA test loads via dedicated cable assemblies; verified switching times, off-state leakage bounds, and voltage drop across output drivers.
- Dual-Redundant Pair Failover Test: Paired with an adjacent matching card on a CENTUM VP test rack; simulated live card extraction during active load switching to confirm seamless failover with zero output chatter.
- Memory Clear & Anti-Static Packaging: Cleared software node parameters, cleaned connector pins, and sealed the unit in ESD-safe static shielding packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Watch Out for Cable & Terminal Matching: Unlike 32-channel cards with direct pressure clamp options, the ADV569-P00 uses dual 40-pin MIL connectors. Ensure you use the correct system cables (such as KS1 or AKB331) and compatible Yokogawa terminal boards (e.g., AEA4D or AEP7D). Pin assignments are dense, so mismatched cable pinouts will misroute 24V field signals.
❗ Check Suffix & Environmental Coating (/S2): Verify if your installation requires the standard version (-P00) or the conformal-coated option (/S2) designed for harsh, corrosive atmospheres (such as sulfur-rich gas plants). Mixing non-coated units into corrosive environments leads to premature pin oxidation.
⚠️ Mind the Thermal & Current Budget: With 64 output channels packed into a single-slot card, simultaneous high-current switching across all channels generates significant internal heat. Keep the total current draw per 32-channel group under 2.4A, and ensure cabinet cooling fans are fully functional.
❗ Inductive Load Suppression: Always ensure field solenoids or heavy DC relay coils connected to the terminal board have flyback diodes installed across their coils. Switching unsuppressed inductive loads will cause back-EMF voltage spikes that damage the high-density transistor output arrays on the ADV569.
Frequently Asked Questions (FAQ for Conversion)
Q: Can the ADV569-P00 be replaced online without shutting down the controller?
A: Yes. In a dual-redundant pair configuration, you can hot-swap a faulty ADV569-P00 module while the system is running live without disturbing process control. Even in single-card setups, pulling the module will not crash the FCS CPU, although active outputs on that module will turn off.
Q: What is the main difference between the ADV551 and the ADV569?
A: The ADV551 is a 32-channel 24V DC digital output module using standard terminal blocks or cables. The ADV569 is a high-density 64-channel module that utilizes dual 40-pin MIL cable connectors to handle twice the channel count in the same slot width.
Q: Does the ADV569-P00 support both CENTUM CS 3000 and CENTUM VP?
A: Yes. The ADV569 is part of the standard Yokogawa FIO module family and is natively supported across both CENTUM CS 3000 and CENTUM VP Field Control Stations (FCS).
Q: How is field power supplied to the outputs on the ADV569-P00?
A: Field power (24V DC) is supplied through the external terminal board connected via the system cables, which routes power to the transistor output drivers on the card.
Q: What warranty is provided with this module?
A: All our new surplus and bench-tested refurbished Yokogawa modules come backed by a full 12-month direct replacement warranty. If the module fails under normal operating conditions within one year, we will swap it out immediately from our stock.
