Product Introduction
To be honest, the Yuken AME-D-10-100-20 is a staple in electro-hydraulic motion control systems. This DIN-rail mountable proportional amplifier takes standard low-level analog command signals (voltage or current) and translates them into regulated coil currents, ensuring precise spool positioning in proportional directional and pressure control valves.
Engineered with onboard adjustments for ramp time, dither frequency, and gain, it eliminates valve stiction and hysteresis without requiring external PLC PID tuning loops. In our field experience, keeping a pre-configured replacement on hand is vital for heavy presses and injection molding machines, where a blown amplifier halts hydraulic actuation instantly.
Key Technical Specifications
| Parameter | Value |
| Amplifier Type | DIN-Rail Mount Proportional Valve Amplifier |
| Power Supply Voltage | 24V DC \pm 10% (Filtered DC) |
| Max Output Current | Up to 1.0A / 2.0A variants (model specific configuration) |
| Command Signal Input | 0-10V DC, 4-20mA, or potentiometer reference |
| Adjustment Trimmers | Up Ramp, Down Ramp, Min/Max Current, Dither Frequency |
| Dither Frequency | Adjustable (typically ~100Hz to 300Hz) |
| Enclosure Mounting | 35mm DIN Rail Mount |
| Ambient Operating Temperature | 0°C to +50°C |
| Protection Class | IP20 (Enclosure panel installation recommended) |
| Weight | Approx. 0.3 kg |
Application Scenarios & The “Trench” Experience
Picture this: It’s 1:00 AM in a heavy metal stamping plant. A 1,000-ton hydraulic press stalls mid-stroke because the proportional valve controlling main cylinder pressure stops responding. Maintenance traces the fault to an internal power regulator failure on the valve amplifier card. Production is dead in the water, and waiting two weeks for factory delivery is out of the question. Popping in a verified, direct-replacement Yuken AME-D-10-100-20 gets the press cycling before shift change.
- Hydraulic Presses – Main Pressure Control: Regulating proportional relief and pressure reducing valves for repeatable clamping force.
- Injection Molding – Injection Speed Regulation: Controlling proportional flow control spools to maintain precise fill profiles.
- Steel Mills – Roll Gap Positioning: Driving hydraulic servo/proportional actuators for accurate strip thickness control.

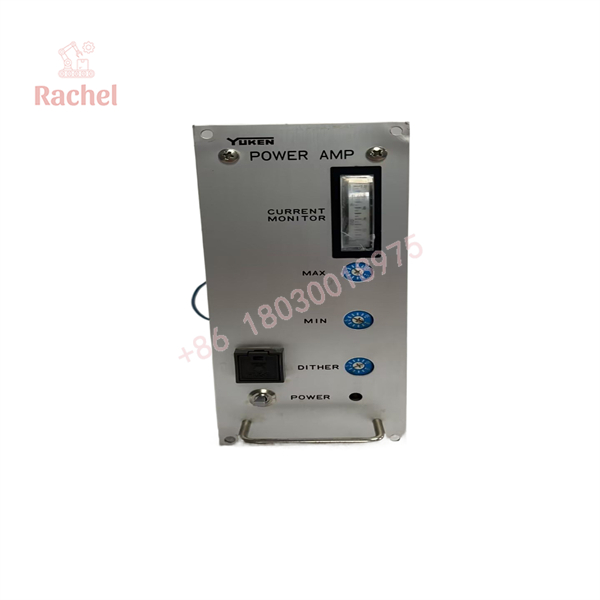

AME-D-10-100-20

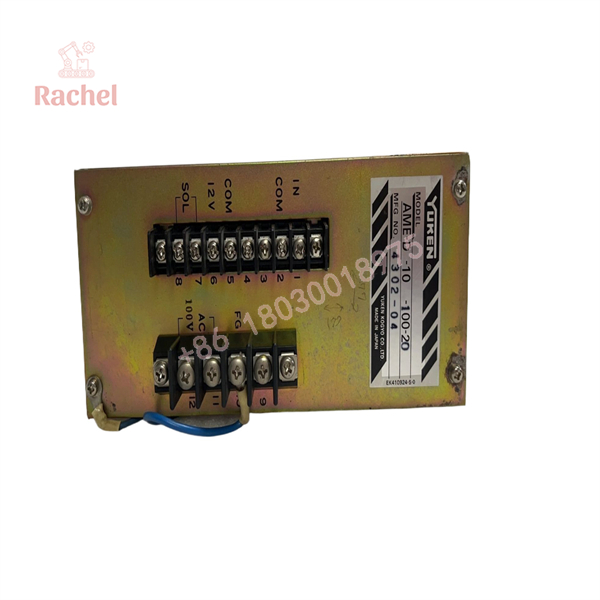

AME-D-10-100-20
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual hydraulic test benches. Every unit goes through a strict verification protocol:
- Inbound Inspection: Visual check for terminal block integrity, capacitor bulging, and authentic Yuken manufacturing labels.
- Live Rig Testing: Powering the unit on a 24V DC regulated bench supply to verify internal DC-DC regulation and status LED indicators.
- Command & Ramp Calibration: Injecting reference input signals (0-10V / 4-20mA) and verifying output current scaling, ramp generator timing, and adjustable dither response.
- Thermal Soak Test: Operating the output stage under simulated inductive solenoid loads to confirm thermal stability.
- Final QC & Anti-static Packaging: Resetting trimmers to baseline defaults, sealing the unit in an ESD shield bag, and packing in shock-absorbing foam.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Dither Adjustment Trap: Do not crank up the dither frequency and amplitude blindly. Excessive dither will cause mechanical chatter and wear out the proportional valve’s internal spool pin, while too little dither will cause the valve to stick due to hydraulic stiction.
❗ Power Supply Ripple: Ensure your 24VDC power supply has tight ripple suppression (<5% peak-to-peak). Unfiltered power supplies or shared lines with inductive solenoids will inject electrical noise into the reference input, causing erratic hydraulic actuator jitter.
⚠️ Trimmer Setting Documentation: Always record or measure the exact potentiometer positions (ramp, gain, bias) of your old amplifier before removing it. Swapping a unit straight out of the box without matching these trims will alter your machine’s acceleration and pressure profiles instantly.
Frequently Asked Questions (FAQ for Conversion)
Q: Is this amplifier compatible with all Yuken proportional valves?
A: It is designed for standard Yuken proportional and proportional electro-hydraulic valves requiring matching current ranges. Always verify your valve solenoid coil resistance and current ratings against the amplifier’s output specifications.
Q: Do I need specialized software to program the AME-D-10-100-20?
A: No. This unit is entirely hardware-adjustable via physical onboard potentiometers (trimmers) for ramp times, gain, and bias. No laptop or software interface is required.
Q: Does this unit come with a warranty?
A: Yes. All surplus and fully tested units include a standard 12-month replacement warranty.
Q: Why purchase surplus instead of waiting for factory backorders?
A: Industrial hydraulic components frequently face extended OEM lead times. We source verified surplus and overstock inventory so you can get an immediate replacement to keep your facility running.
