ZYGO 8010-0105-02 ZMI-501 Dual-Axis Interferometer

Technical Specifications

These figures come primarily from secondary technical listings and should be treated as configuration-specific rather than universal ZMI-501 specifications. In particular, another listing attributes +12 VDC operation, 632.8 nm laser wavelength, and different physical dimensions to the same part number, indicating that reseller data should not replace the original ZYGO system documentation.

Product Introduction & Engineering Value

The ZMI-501 belongs in a precision metrology architecture where displacement feedback is derived from optical interferometry rather than a conventional mechanical encoder. The reported two-axis configuration makes it useful for monitoring multiple displacement paths simultaneously, while the nanometer-scale resolution supports precision positioning and machine characterization.

For maintenance procurement, the complete 8010-0105-02 identifier matters. Current secondary-market listings associate the unit with ZMI-501 systems and list new/used inventory, but descriptions are not fully consistent about whether the assembly is a measurement unit, channel-isolation board, or broader interferometer module. Verify the installed hardware before ordering.

Field Application & The “Trench” Experience

Consider a precision positioning stage in a semiconductor inspection system. The stage controller is operating normally, but one displacement-feedback channel begins producing inconsistent position data. Replacing the motion controller would be excessive because the mechanical stage, laser source, and host control system are still functioning.

The maintenance engineer first identifies the exact ZMI hardware revision, documents the two measurement channels, verifies the compatible laser and power requirements, and compares the connector arrangement with the replacement unit. After installation, the system is checked using a known interferometer target before the stage is returned to production.

That sequence matters. With nanometer-level measurement hardware, a module can power up normally and still be unsuitable for calibrated production use.

Specific application scenarios include:

1. Semiconductor wafer-stage positioning — closed-loop displacement monitoring on precision X/Y stages.
2. Precision machine-tool calibration — measurement of positioning accuracy and repeatability.
3. Optical-stage alignment — monitoring very small displacement changes during optical assembly.
4. Research-grade motion platforms — two-axis interferometric feedback for experimental positioning systems.

A separate technical listing specifically identifies the ZMI-501 as a dual-axis precision displacement-measurement interferometer, while another published listing associates 8010-0105-02 with ZMI-501 inventory.

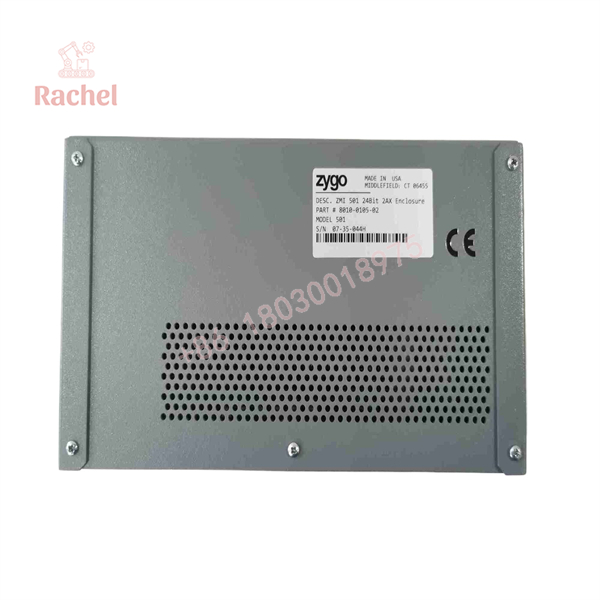

8010-0105-02 ZMI-501

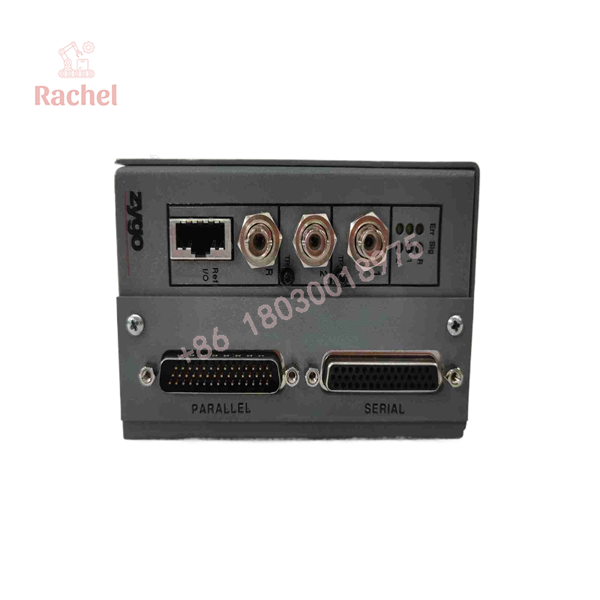

8010-0105-02 ZMI-501

QA & Testing

For new-surplus or refurbished 8010-0105-02 ZMI-501 inventory, a basic electrical power-up is not enough.

Incoming inspection

• Confirm the complete 8010-0105-02 part number.
• Photograph the nameplate and revision markings.
• Inspect optical interfaces, connectors, PCB surfaces, and mounting hardware.
• Check for corrosion, contamination, cracked components, or previous repair work.

Electrical verification

• Confirm the actual required supply voltage from the applicable ZYGO documentation.
• Check current consumption at startup.
• Verify that no abnormal heating or fault condition occurs.
• Confirm host-interface compatibility before connecting the unit to production electronics.

Metrology verification

1. Connect the unit to the appropriate ZMI system.
2. Verify both measurement channels.
3. Confirm stable interferometric signal acquisition.
4. Test displacement response against a known reference.
5. Check repeatability over multiple positioning cycles.

Final QA record

Record the exact part number, revision, physical condition, test configuration, measurement results, and any refurbishment work. This is particularly important because public secondary listings for this model contain conflicting technical descriptions.

Veteran’s Tech Trap Guide

⚠️ Trap #1 — Trusting the product title instead of the hardware label.

Some secondary listings describe 8010-0105-02 as a ZMI-501 displacement interferometer, while others describe it as a channel isolation board. Those descriptions should not be treated as interchangeable technical definitions.

PRO TIP: Before purchasing, request a photograph showing the actual 8010-0105-02 marking and the complete connector/interface side.

⚠️ Trap #2 — Mixing power specifications from different configurations.

One listing reports +5.2 VDC at 3.3 A, while another reports +12 VDC nominal. That is a major discrepancy and should be resolved from the original equipment documentation before applying power.

⚠️ Trap #3 — Treating resolution as system accuracy.

A published figure such as 1.24 nm resolution describes a measurement capability under a particular configuration. It should not automatically be interpreted as the overall machine positioning accuracy. Laser stability, optical alignment, environmental compensation, mechanics, and controller processing all contribute to system performance.

⚠️ Trap #4 — Replacing the electronics without validating the optical chain.

The ZMI system depends on the relationship between the measurement electronics, laser source, interferometer optics, and target/retroreflector. A replacement board cannot compensate for a contaminated optical path or an incorrectly aligned interferometer.

FAQ

What is ZYGO 8010-0105-02?

8010-0105-02 is associated with the ZYGO . Secondary technical sources describe the ZMI-501 as a dual-axis precision displacement-measurement unit used within ZYGO interferometric metrology systems.

How many measurement axes does the ZMI-501 support?

A published specification identifies two measurement axes.

What resolution does it provide?

One secondary specification lists 1.24 nm position resolution. Other sellers make broader sub-nanometer claims, so the exact performance should be verified against the applicable ZYGO system configuration and calibration documentation.

Is 8010-0105-02 a channel-isolation board?

Some secondary suppliers explicitly market it as a ZMI-501 channel isolation board, while other sources identify the same part number as the complete ZMI-501 displacement-measurement unit. Because of this inconsistency, the actual hardware configuration should be verified before procurement.

Is this part available as New Surplus?

Secondary suppliers currently list 8010-0105-02 ZMI-501 as new/used or in-stock inventory. These are reseller claims rather than confirmation of current OEM production status.

How should New Surplus or Refurbished authenticity be verified?

Request photographs of the actual unit, including the complete part-number label, revision marking, connectors, and enclosure. For a production-critical metrology system, also request functional-test results showing communication, both measurement channels, and interferometric measurement performance. A visual inspection or power-on test alone is insufficient for a precision measurement component.
