Product Introduction
The Zygo ZMI 7702 is a reference-grade, dual-frequency Helium-Neon (HeNe) laser source engineered for ultra-high-precision displacement measurement systems. Primarily integrated into semiconductor lithography stages, coordinate measuring machines (CMMs), and precision optical toolbeds, the 7702 acts as the fundamental optical heart of a Zygo displacement measuring interferometer (DMI) setup.
To be honest, standard single-frequency lasers fall apart when stage velocities ramp up due to phase noise and signal degradation. The ZMI 7702 resolves this by outputting two orthogonally polarized optical frequencies with a tightly controlled split (split frequency). This heterodyne architecture allows VME/PCI measuring electronics to track stage displacements down to sub-nanometer resolutions at high linear speeds without losing fringe counts.
Key Technical Specifications
| Parameter | Specification |
| Laser Type | Zeeman-split / Dual-Frequency HeNe Laser |
| Vacuum Wavelength | 632.99137 nm (Nominal 633 nm Red) |
| Wavelength Stability | \pm0.02 ppm (Life/Thermal range) |
| Beam Diameter | ~3.0 mm to 6.0 mm (Depending on aperture option) |
| Optical Output Power | \ge180\ \muW (Sufficient for multi-axis fiber splitting) |
| Split Frequency (A/B) | ~20 MHz (Heterodyne carrier frequency) |
| Warm-Up Time | ~10 to 15 minutes to lock reference frequency |
| Cooling Requirement | Convection / Chassis heat dissipation |
| Input Power | 24 VDC Nominal supply |
Application Scenarios & The “Trench” Experience
When an optical wafer stepper drops out at 3 AM with a “Laser Reference Unlock” fault, the entire fab line sits idle, costing tens of thousands per hour. Replacing a aging laser tube requires more than just mechanical mounting—it demands verifying frequency locks and optical alignment across multiple interferometer measurement axes. Having a bench-certified ZMI 7702 on hand gets high-throughput tools back online before production schedules fall apart.
- Semiconductor Wafer Stages – XY positioning for photolithography equipment where nanometer-level alignment drift ruins die yields.
- Flat Panel Display Inspection – High-speed long-travel stage metrology requiring high optical power across multiple split beams.
- Precision CNC Tool Calibration – Real-time compensation feedback for ultra-precision diamond turning machines and grating engines.
- Research Metrology Core – National measurement labs and atomic force microscopy (AFM) structural feedback frames.

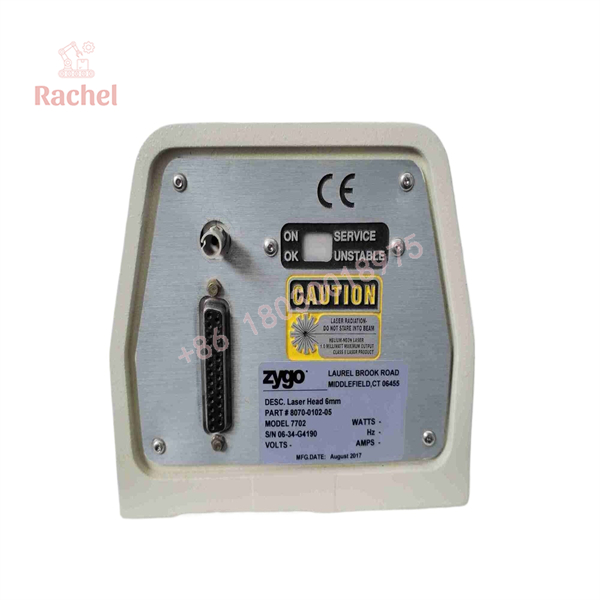

7702

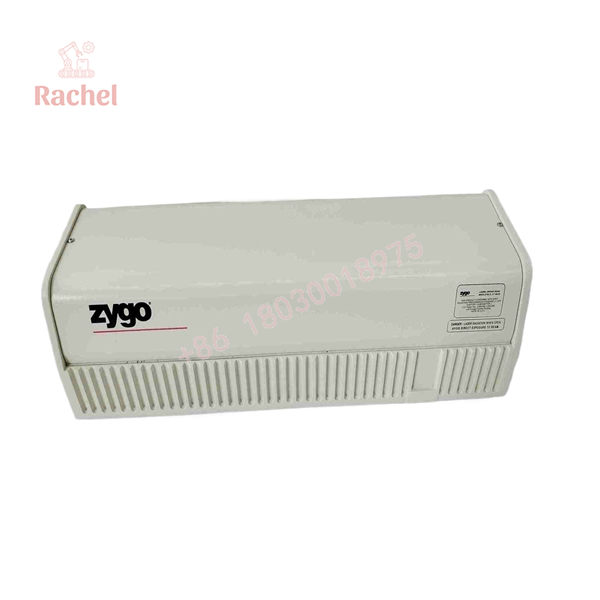

7702
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual metrology benches. Every Zygo 7702 laser unit undergoes a strict test routine before release:
- Inbound Visual & Tube Audit: Physical casing integrity, optical output window condition, and high-voltage power supply insulation check.
- Power-On & Thermal Lock Verification: Cold start monitoring to measure exact warm-up time to internal frequency lock (thermal control circuit validation).
- Optical Power & Beam Profile: Measurement of output power using a calibrated optical power meter to confirm tube lifespan remaining (\ge180\ \muW).
- Heterodyne Beat & Split Frequency Verification: Spectrum analysis of the two frequency components to verify stability under optical load.
- ESD & Protective Packaging: Dust covers secured over optical ports, vacuum-sealed in static shielding, and packaged in custom heavy-duty foam casing.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Back-Reflection Damage: Never let a direct normal reflection head straight back into the 7702 output aperture without an optical isolator or retroreflector alignment check. Unisolated back-reflections cause mode hopping and unlock the laser’s internal frequency control loop.
- ❗ Never Turn on Without Warm-Up: Don’t attempt to execute sub-micron positioning runs immediately after boot-up. The thermal regulation circuitry requires at least 15 minutes to stabilize the tube length. Reading data early will result in massive measurement drift.
- ⚠️ Fiber Coupling Efficiency: If feeding fiber-optic pickup heads (ZMI Fiber Pickup), clean the fiber faces with optics-grade isopropyl alcohol and lint-free wipes. A dirty fiber end can drop beam intensity below the receiver board threshold, causing pseudo-beam break trips.
- ❗ HV Power Supply Wear: Old Zygo laser heads that have been stored for years without power can exhibit gas tube hard-starting or power supply arc-over. Power up legacy surplus units in a controlled dry environment first.
Frequently Asked Questions (FAQ)
Q: Is the Zygo ZMI 7702 direct drop-in compatible with Agilent/HP 5517 laser heads?
A: No. While both are dual-frequency heterodyne lasers used in metrology, their split frequencies, beam diameters, signal receiver interfaces, and optical polarization axes differ. They require their respective OEM board electronics (Zygo ZMI boards vs. HP/Agilent VME cards).
Q: Can I split the output beam of a single 7702 laser into multiple measurement axes?
A: Yes. Because of its output power, the 7702 beam can be split using beam splitters to drive up to 4 or more independent measurement axes (e.g., X, Y, Theta, Pitch/Yaw), depending on path length and optics efficiency.
Q: How do I know if the laser tube inside the 7702 is near the end of its operational life?
A: The main indicator is output power decay. A fresh or healthy tube outputs comfortably above 200\ \muW. When tube current remains high but optical output drops below 120\ \muW, or the laser takes excessive time to achieve thermal lock, the tube is nearing end of life.
Q: What is the standard warranty on these units?
A: All bench-tested surplus or refurbished Zygo 7702 laser heads are backed by a comprehensive 12-month replacement/repair warranty.
