Description
Product Introduction
The Allen-Bradley 1794-OE12 is a high-density, 12-channel analog output module designed for the Flex I/O architecture. It mounts directly onto a 1794-TB3 or 1794-TB3S terminal base unit, interfacing seamlessly with ControlLogix, CompactLogix, or legacy PLC-5 systems via EtherNet/IP, ControlNet, or Remote I/O adapters. Plants rely on this module to drive field devices like control valves, variable frequency drives, and panel meters in distributed control setups.
Engineers choose the 1794-OE12 when cabinet space is tight. Packing 12 outputs into a compact footprint cuts rack space without forcing you to split signals across multiple 4-channel cards. Its 16-bit resolution delivers precise analog control across standard 4-20mA and ±10V ranges, giving you rock-solid signal reproduction for demanding loops.
Key Technical Specifications
| Parameter | Value |
| Catalog Number | 1794-OE12 |
| Number of Outputs | 12 single-ended outputs |
| Output Current Ranges | 0 to 20 mA, 4 to 20 mA |
| Output Voltage Ranges | 0 to 10V, ±10V, 0 to 5V, ±5V |
| Digital Resolution | 16 bits (configurable) |
| Flexbus Current | 80 mA @ 5V DC |
| External DC Power Supply | 24V DC nominal (10.5 to 31.2V DC range) |
| Power Dissipation | 4.7 W @ 31.2V DC max |
| Thermal Dissipation | 16.0 BTU/hr @ 31.2V DC max |
| Compatible Terminal Bases | 1794-TB3, 1794-TB3S |
| Isolation Voltage | 50V continuous (tested at 850V DC for 1s between user power and Flexbus) |
Application Scenarios & The “Trench” Experience
It’s 2:15 AM on a Sunday. A main boiler feed pump control loop loses its reference signal because an aging 8-channel analog output module fails on a remote skid. Process pressure plummets, tripping the plant safety system and halting production. Every hour off-line burns thousands of dollars in lost throughput. Dropping in a direct-replacement 1794-OE12 gets the control loops back online fast without requiring you to rewire the entire enclosure or rewrite the PLC ladder logic.
- Water/Waste Treatment – Proportional Valve & Actuator Control – Controls multiple chemical dosing valves simultaneously with precise 4-20mA loops.
- Oil & Gas Refineries – Remote Skid Control Modules – Drives speed references for multiple VFDs over an EtherNet/IP Flex I/O node.
- Pulp & Paper – Multi-Zone Heating & Steam Control – Adjusts fine-position control valves across multiple drying zones with high resolution.
- Manufacturing & Assembly – Servo & VFD Speed References – Sends precise ±10V command signals to speed controllers on continuous processing lines.

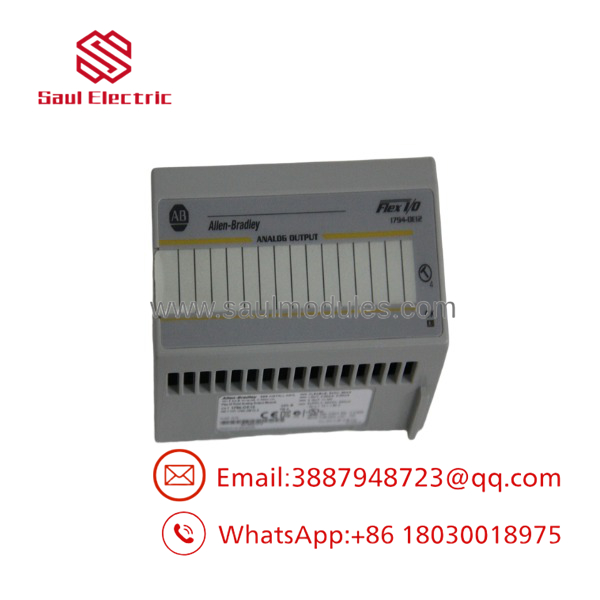

1794-OE12
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Allen-Bradley racks before they leave our warehouse.
- Inbound Inspection: We inspect every unit for physical integrity, check OEM anti-counterfeit seals, and verify lot codes against Allen-Bradley records.
- Live Rig Testing: The card is snapped into a 1794-TB3 base linked to a 1794-AENT adapter and an active CompactLogix controller running Studio 5000.
- Electrical Parameter Checks: We attach calibrated digital meters across all 12 channels to verify current (4-20mA) and voltage (±10V) output linearity across the full range.
- Firmware Verification: We log the exact hardware and firmware revisions in our QA database to prevent compatibility surprises on your floor.
- Final QC & Packaging: The module is cleared, sealed in a heavy-duty ESD static-shielding bag, and packaged with shock-absorbing foam.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Terminal Base Wiring Mismatch: Never force this card into a 2-wire 1794-TB2 base. The 1794-OE12 requires the 3-wire 1794-TB3 or spring-clamp 1794-TB3S base to route power and ground properly for all 12 single-ended channels.
- ❗ External 24V DC Power Required: The card will sit there quietly with comms active while outputting zero signal if you forget the external 24V DC power supply leads on the terminal base. Double-check terminals 16 (+24V) and 33 (Common).
- ⚠️ Hot-Swapping Risks: Flex I/O supports Removal and Insertion Under Power (RIUP), but don’t get sloppy. Align the keying switch on the base to Position 4 before snapping the module down. Misalignment will bend the backplane pins.
- ❗ Channel Configuration Mismatches: Take a snapshot of your Studio 5000 / RSLogix 5000 module profile configuration before swapping. If output ranges (e.g., changing from 4-20mA to 0-10V) don’t match your existing logic data tags, your actuators will slam fully open or fully shut.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the 1794-OE12 hot-swappable in a live system?
A: Yes, it supports RIUP (Removal and Insertion Under Power) when installed on a 1794-TB3 base. However, always exercise caution when working around live 24V DC field wiring and ensure your controller isn’t actively executing critical motion or valve adjustments on those channels during the swap.
Q: Can I mix voltage and current outputs on the same 1794- module?
A: Yes. Each channel is individually configurable in software (RSLogix 5000 / Studio 5000) for current (0-20mA, 4-20mA) or voltage (0-10V, ±10V, 0-5V, ±5V).
Q: What is the main difference between the 1794-OE4 and the 1794-?
A: Channel density and base requirements. The 1794-OE4 offers 4 isolated outputs and works on standard 1794-TB2 bases. The 1794- packs 12 single-ended channels into the same form factor, but it requires a 1794-TB3 or 1794-TB3S 3-wire base to handle the higher pin count.
Q: How do you guarantee the quality of New Surplus legacy stock?
A: We source unused, original components from plant liquidations, OEM cancellations, and global surplus channels. Every piece undergoes visual inspection, full bench testing on active Allen-Bradley test racks, and verification before sitting in anti-static storage.
Q: What warranty comes with this 1794- module?
A: We back all our New Surplus and reconditioned legacy modules with a full 12-month warranty from the date of invoice. If the module fails during normal operating conditions within a year, we replace it or issue a full refund.
