A-B 1746SC-NI8U SLC 500 Compatible Module

Description

Product Introduction

The 1746SC-NI8U is an eight-channel universal analog input module developed by Spectrum Controls for the Allen-Bradley SLC 500 platform. It fits directly into any standard 1746 I/O chassis and supports voltage, current, thermocouple, RTD, resistance, and millivolt inputs without requiring multiple dedicated analog modules.

In our field experience, this module is often selected during modernization projects where several sensor technologies must coexist in one PLC rack. Rather than stocking separate temperature, voltage, and current input cards, maintenance teams can standardize on a single universal module. Verify the channel configuration before startup because each input is software configurable.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

One thing that catches engineers off guard is mixed instrumentation during plant upgrades.

Half the skid still uses Type K thermocouples. The newer equipment arrives with 4–20 mA transmitters. A few OEM packages even provide ±10 V outputs.

Instead of filling the rack with several dedicated analog cards, one universal module handles all of them.

Typical applications include:

• Water Treatment — Monitoring pressure transmitters, RTDs, and flow sensors from a single SLC 500 rack.
• Food Processing — Reading oven temperatures, pressure transmitters, and tank levels using mixed sensor technologies.
• Chemical Plants — Collecting thermocouple and RTD data while simultaneously monitoring analog process transmitters.
• OEM Equipment — Standardizing spare parts by replacing multiple dedicated analog modules with one universal module.
• Power Generation — Monitoring auxiliary systems where different sensor technologies coexist.

Field Case

A pharmaceutical manufacturer upgraded one production line over several years. Older vessels still used RTDs while newer skids transmitted process values using 4–20 mA instrumentation.

Originally, three different analog input modules occupied valuable rack space.

After converting to the 1746SC-NI8U, engineers configured each channel independently, eliminating unnecessary hardware while maintaining compatibility with existing RSLogix 500 programs. Future sensor replacements became much easier because no hardware changes were required.

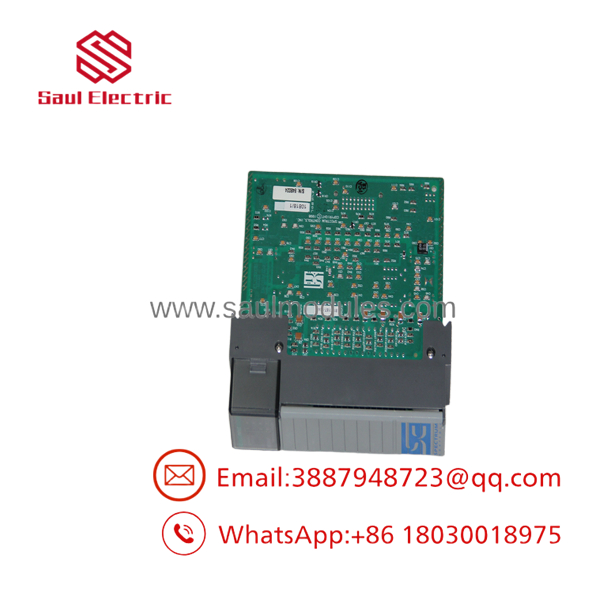

1746SC-NI8U

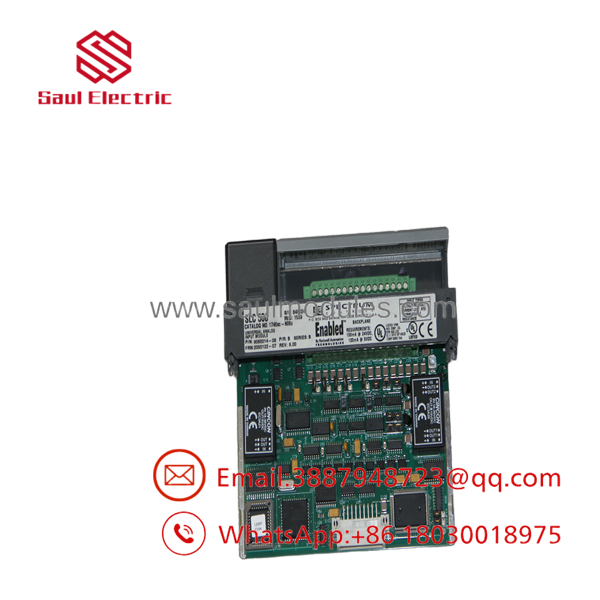

1746SC-NI8U

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley SLC 500 racks.

• Inbound Inspection
  • Verify manufacturer label, catalog number, and PCB revision.
  • Inspect terminals, connectors, and housing for damage.
  • Check for unauthorized repairs or counterfeit markings.
• Live Rack Testing
  • Install the module in a working SLC 500 chassis.
  • Confirm processor recognition and proper communication.
  • Verify all eight channels under simulated analog inputs.
• Electrical Parameter Checks
  • Test voltage, current, RTD, thermocouple, and resistance inputs.
  • Verify isolation and channel accuracy.
  • Confirm automatic calibration functions.
• Configuration Verification
  • Record hardware revision.
  • Verify module identification and channel configuration.
• Final QC & Anti-Static Packaging
  • Complete full functional testing.
  • Clean connectors.
  • Package in ESD-safe materials with protective cushioning.

The Veteran’s Tech Trap Guide

⚠️ Configure every channel individually. This isn’t a fixed-range analog module. Leaving the default configuration can produce completely incorrect measurements.

⚠️ Use the proper thermocouple extension wire. Standard copper cable introduces measurement error that calibration cannot remove.

❗ Don’t mix up compatibility with manufacturer identity. The 1746SC-NI8U is designed for Allen-Bradley SLC 500 systems, but it is manufactured by Spectrum Controls, not Rockwell Automation.

⚠️ Select the appropriate digital filter. A 250 Hz filter provides faster updates but can increase noise on slow-moving temperature measurements. Lower filter settings generally produce more stable readings for RTD and thermocouple applications.

Always verify channel configuration, sensor wiring, and module ID settings with the manufacturer’s installation manual before commissioning.

Frequently Asked Questions (FAQ)

Q1. Is the 1746SC- manufactured by Allen-Bradley?

No. It is manufactured by Spectrum Controls and designed specifically for compatibility with Allen-Bradley SLC 500 PLC systems.

Q2. Can each channel use a different input type?

Yes. Each channel can be configured independently for voltage, current, thermocouple, RTD, resistance, or millivolt inputs, making it suitable for mixed instrumentation systems.

Q3. Does it fit directly into a standard SLC 500 chassis?

Yes. The module is designed for standard Allen-Bradley 1746 I/O racks and communicates with fixed and modular SLC 500 processors.

Q4. Is the module isolated?

Yes. It provides 500 VDC isolation between field wiring and the SLC backplane, helping reduce electrical interference and improve measurement integrity.

Q5. Is this module still in production?

Availability depends on the supplier. Many units on today’s market are supplied as new surplus or refurbished inventory because the SLC 500 platform has reached the mature stage of its lifecycle. Always confirm stock status before planning a shutdown.

Q6. Can it replace several dedicated analog input modules?

In many applications, yes. One 1746SC- can often replace separate voltage, current, thermocouple, and RTD input modules, reducing spare-part inventory and simplifying maintenance. Verify that your required signal ranges and PLC program configuration match the application.

Q7. What warranty is typically provided?

Most established industrial automation suppliers offer a 12-month warranty for qualified new surplus and professionally tested refurbished 1746SC- modules. Warranty coverage generally applies to functional defects under normal industrial operating conditions.
