Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 07AI91 |
| Product ID | GJR5251600R0202 |
| Product Type | Analog Input Module |
| System | ABB AC31 / Advant Controller 31 |
| Analog Inputs | 8 Channels |
| Supply Voltage | 24 V DC |
| Supported Inputs | ±10 V, ±5 V, ±500 mV, ±50 mV, 0–20 mA, RTD (Pt100/Pt1000), Thermocouple (J, K, S) |
| Resolution | 12-bit + Sign |
| Communication | CS31 Bus |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −25 °C to +75 °C |
Product Introduction

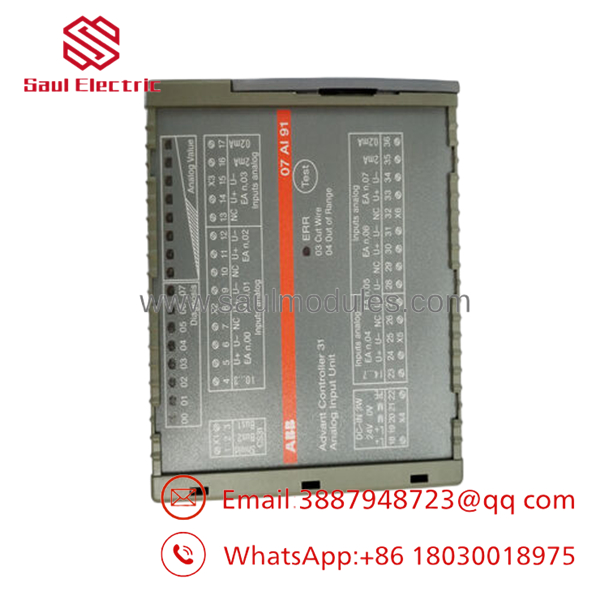

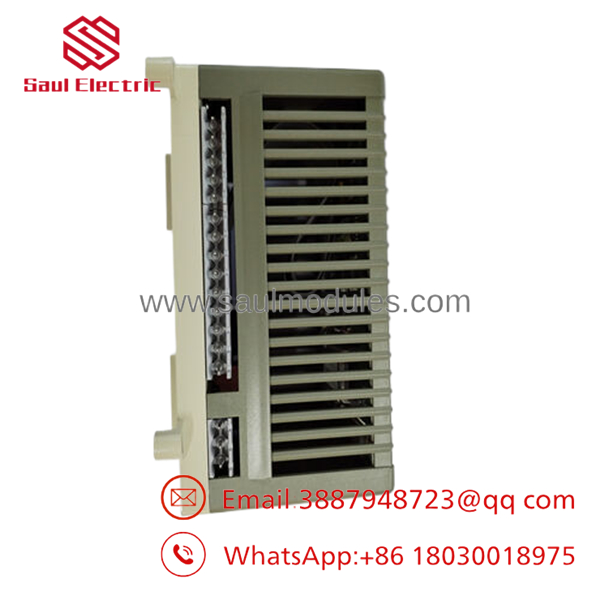

The ABB 07AI91 (GJR5251600R0202) is an OEM analog input module designed for the ABB AC31 distributed control platform. It converts multiple analog sensor signals into digital process data for PLC and automation applications, supporting voltage, current, RTD, and thermocouple inputs through a single module.
With eight configurable input channels and CS31 bus communication, the 07AI91 is commonly installed in process automation, water treatment, power generation, and manufacturing systems. As a discontinued legacy product, many facilities purchase New Surplus inventory to support long-term maintenance.
- 07AI91
- 07AI91
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| One or more analog values remain at zero | Open sensor loop | ❌ Low | Measure signal directly at the terminal block | Verify field wiring before replacing the module |
| All input channels fail | Module power loss | ✅ High | Measure 24 V DC supply and CS31 bus voltage | Restore power before replacing the module |
| Unstable analog readings | Electrical noise or poor grounding | ⚠️ Medium | Inspect shield grounding and cable routing | Correct grounding before changing hardware |
| Module not detected by CPU | Bus communication failure | ✅ High | Check CS31 address and bus wiring | Verify network configuration |
| Temperature readings incorrect | Wrong sensor configuration | ⚠️ Medium | Confirm RTD or thermocouple settings in the PLC | Match configuration to the connected sensor |
| Channel diagnostics indicate fault | Internal analog input failure | ✅ High | Compare readings using a calibrated signal source | Replace the module if the fault is repeatable |
Service Note
The 07AI91 is generally reliable. In practice, most reported failures originate from damaged sensors, wiring faults, incorrect input configuration, or grounding issues rather than the module itself.
Before replacing the module:
- Record the existing DIL switch settings.
- Photograph all field wiring.
- Verify sensor calibration.
- Confirm the CS31 address configuration.
- Test each input with a calibrated signal generator.
A ten-minute verification can often prevent an unnecessary module replacement.
Frequently Asked Questions (FAQ)
Q1. What is the ABB 07AI91 used for?
The 07AI91 is an 8-channel analog input module for ABB AC31 control systems. It acquires voltage, current, RTD, and thermocouple signals from field instruments and transfers the data to the controller through the CS31 bus.
Q2. What signal types does the module support?
It supports multiple industrial input types, including:
- ±10 V
- ±5 V
- ±500 mV
- ±50 mV
- 0–20 mA
- Pt100
- Pt1000
- Thermocouples J, K, and S
This flexibility allows one module to handle a wide range of instrumentation.
Q3. Can I replace the module without changing my PLC program?
Normally yes.
If the replacement module has the same hardware revision and identical configuration, no PLC program changes are typically required. However, verify the DIL switch settings and channel configuration before startup.
Q4. Is the 07AI91 still manufactured?
No.
The 07AI91 is a legacy ABB AC31 product. Most available units today are New Surplus or unused spare inventory maintained by industrial automation suppliers.
Q5. Does the module support RTD and thermocouple inputs?
Yes.
Unlike many standard analog modules, the 07AI91 supports direct connection of RTD and thermocouple sensors, making it suitable for temperature measurement as well as voltage and current acquisition.
Q6. Why are New Surplus modules usually more economical?
New Surplus modules are genuine ABB products that have never been commissioned but originate from excess inventory rather than current production. They provide OEM quality while helping maintain legacy AC31 systems after product discontinuation.
Q7. What should I verify before ordering?
Confirm the following information:
- Model: 07AI91
- Product ID: GJR5251600R0202
- Control Platform: ABB AC31 / Advant Controller 31
- Existing hardware revision
- Required signal types
- Terminal wiring and network configuration
Matching the product ID and application ensures compatibility and minimizes installation downtime.
