Product Introduction & Engineering Value
Signal distortion on high-speed measurement channels often stems from aging isolation components on legacy control boards. The ABB 086349-002 circuit board mitigates ground-loop interference and output drift by utilizing multi-channel isolation across critical measurement and relay feedback paths.
Designed for integration into specialized ABB DCS racks and drive interface units, this module provides steady-state signal processing under harsh industrial operating conditions. It eliminates communication dropouts between field sensors and primary logic racks, making it a reliable drop-in replacement for maintenance overhauls.
Technical Specifications
- Part Number: 086349-002 / MPRC 086349-002
- Module Category: Measurement PCB / Multi-Point Relay Control Board
- Operating Input Voltage: Dual 24 VDC redundant input feeds
- Power Dissipation: \le 3.5 W at 24 V nominal
- Channel Isolation: 1500 VAC isolation between logic circuits and field IO
- Signal Support: Integrated multi-channel dry-contact relay driver lines and high-frequency sensor inputs
- Operating Temperature: -20^\circC to +60^\circC
- Storage Temperature: -40^\circC to +85^\circC
- Relative Humidity: 5% to 95% non-condensing
- Physical Dimensions: Approximately 210 \times 128 \times 26 mm
- Module Weight: Approximately 0.36 kg (0.8 lbs)
Field Application & The “Trench” Experience
The Trench Story: During a scheduled shutdown at a midstream compression station, engineers encountered intermittent relay trip faults on an older ABB drive interface panel. Trace diagnostics linked the issue to thermal fatigue on the primary measurement channels of the legacy 086349-002 PCB. The technician pulled the failing card, swapped in a pre-tested surplus module, and verified signal continuity. The field loop calibrated instantly, bringing the compression line back to normal operating pressure within an hour without requiring software re-configurations.
Target Industrial Applications:
- Turbine Speed Measurement Systems: Signal conditioning for pickup sensors and tachometer feedback.
- Industrial Motor Drive Control: Relaying trip signals and voltage isolation between power electronics and control racks.
- Substation Control Cabinets: Interfacing multi-point relay outputs with supervisory monitoring systems.

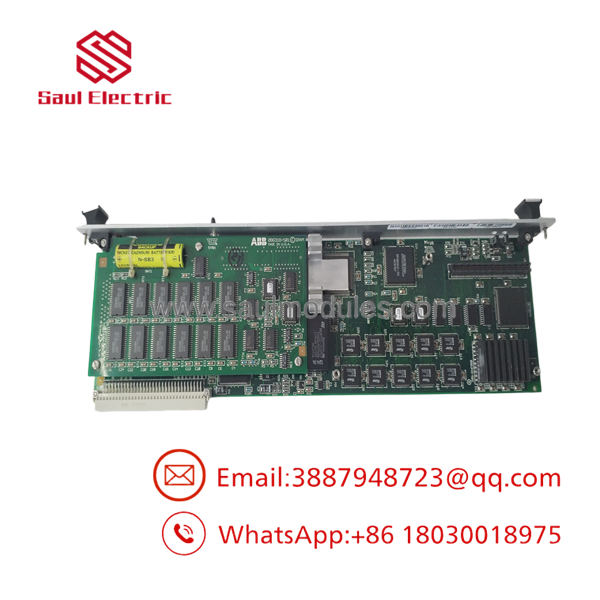

- 086349-002

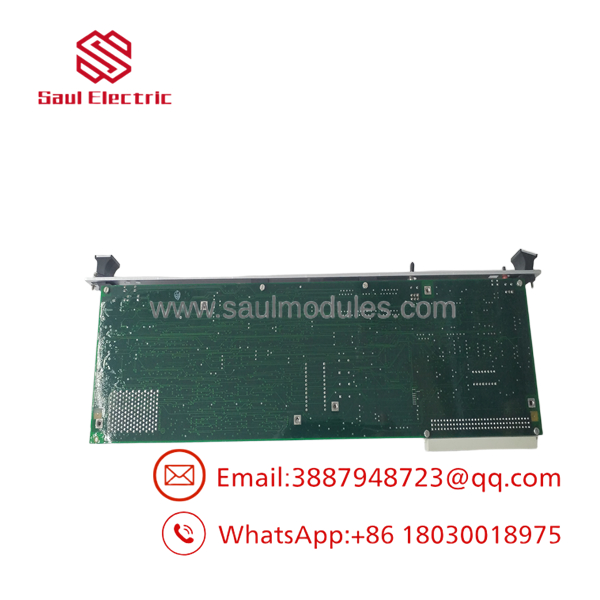

- 086349-002
Transparency SOP: QA & Testing
- Microscopic Solder Joint Inspection: Complete optical review of trace pads, surface-mount passives, and relay contacts to ensure no thermal stress micro-cracks exist.
- Dielectric Isolation Testing: Hi-Pot testing across input terminals and logic rails to guarantee full 1500 VAC channel separation.
- Power-On Voltage Regulation Test: Board powering via dual 24 VDC rails to verify internal DC-DC converter stability under simulated load steps.
- Active Signal & Relay Switching Sweep: Triggering all output channels continuously on a custom ABB test rig to confirm fast response times and zero latching failures.
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Hot-Swap Without Disconnecting Field Power: Although logic buses can sometimes tolerate live pulls, the field-side relay terminals on the 086349-002 may carry external control voltages. Always isolate power from external contact loops before sliding the PCB out of its rack slot.
- PRO TIP: When installing this module, inspect the edge connectors on the rack backplane for pin corrosion or dust accumulation. A single high-resistance contact point can cause signal drift on sensitive measurement channels.
- ⚠️ Check Output Jumper Settings: Depending on the application revision, board-level pin jumpers may configure whether channels behave as dry contacts or powered outputs. Always match jumper configurations on the replacement card with the original board prior to powering up.
Dynamic FAQ
Q: Is the MPRC 086349-002 a direct replacement for 086349-002?
A: Yes, “MPRC 086349-002” is the full functional designation. Both part numbers refer to the same physical ABB measurement and relay PCB.
Q: Does this card require firmware programming prior to installation?
A: No, the 086349-002 is a hardware-level signal conditioning and relay driver board. Logic processing is handled by the primary CPU module in the rack.
Q: How do you handle electrostatic protection during shipping?
A: Every unit is washed, baked (if refurbished), wrapped in anti-static ESD shielding bags, and securely packed in high-density closed-cell foam boxes.
Q: What warranty coverage applies to surplus or refurbished units?
A: All new surplus and fully reconditioned ABB cards come backed by a comprehensive 1-year functional replacement warranty.
