3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 1TGE120021R0110 |
| Module Type | MLink Communication Gateway |
| Protocols | Profibus DP, Modbus RTU/TCP, PROFINET IO |
| Power Supply | 24 V DC (19–31 V DC) |
| Operating Temperature | 0°C to +55°C |
| Interfaces | RS485, Ethernet, fieldbus connectors |
| Degree of Protection | IP51 |
| Application | MNS iS motor control centers |
4. Product Introduction

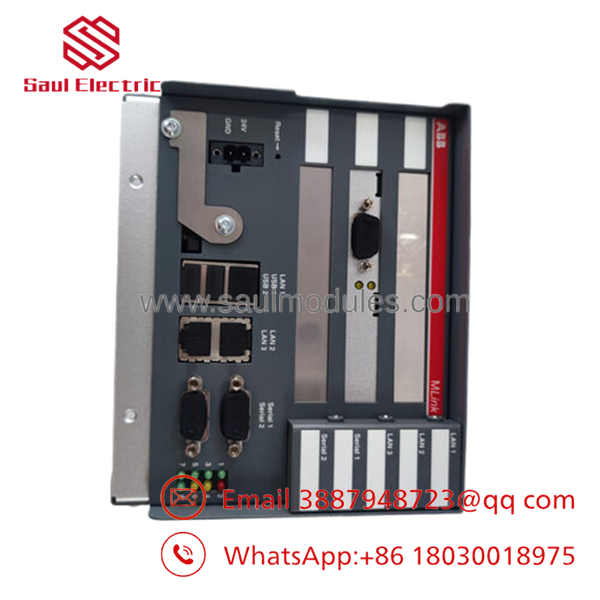

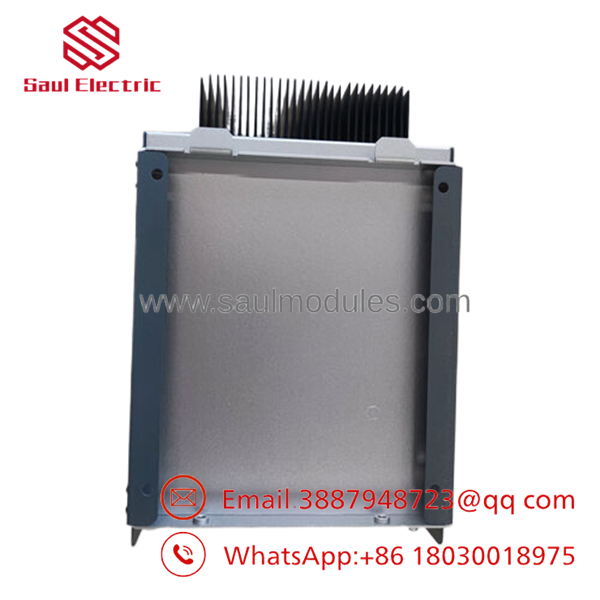

The ABB 1TGE120021R0110 is an MLink communication gateway that connects ABB MNS iS motor control centers to higher-level systems using protocols such as Profibus, Modbus, and PROFINET.
It enables seamless data exchange for monitoring and control of motor feeders. This gateway is a standard choice for integrating intelligent switchgear into plant-wide automation networks.
- 1TGE120021R0110
- 1TGE120021R0110
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No communication | Power or cable issue | ✅ High | Verify 24V supply and LEDs | Check power and network cables |
| Protocol errors | Configuration mismatch | ✅ High | Read gateway diagnostics | Confirm protocol settings and node addresses |
| Intermittent connection | EMI or termination | ✅ Medium | Inspect bus termination | Add/verify termination resistors |
| Module not responding | Firmware or reset needed | ✅ Medium | Press reset button and monitor | Reload configuration if required |
| High error rate | Network overload | ✅ Medium | Monitor traffic statistics | Segment network or reduce load |
Use the integrated web server or engineering tools for detailed diagnostics.
6. Frequently Asked Questions (FAQ)
Can the MLink gateway be hot-swapped? No. Power down the affected segment before replacement to avoid bus disruptions.
What protocols does it support? Profibus DP, Modbus RTU/TCP, and PROFINET IO for integration with MNS iS and higher systems.
Is this New Original? Yes. New Original / New Surplus with traceability. Modules pass functional communication testing.
Will it replace existing units directly? Yes when software configuration matches. Back up settings before swap.
How do I configure it? Use the built-in web server or ABB tools. Set IP addresses, protocol parameters, and mappings as needed.
What warranty is included? 1-year warranty from shipment on New Original units.
Why source surplus? Immediate availability for MNS iS spares. Each unit receives inbound inspection, power-up, and protocol handshake verification. Test reports available upon request.
