Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 1TGE120071R1000 |
| Product Family | MNS iS MConnect |
| Product Type | Communication Mainboard |
| System Compatibility | ABB MNS iS Motor Control Center |
| Primary Function | Communication and control platform |
| Expansion Support | Analog and digital I/O expansion modules |
| Mounting | MConnect hardware assembly |
| Communication | MNS iS internal communication architecture |
| Typical Application | Intelligent Motor Control Centers (iMCC) |
| Configuration | Supports multiple optional I/O combinations |
| Condition | New Original / New Surplus / Tested Refurbished |
According to ABB’s MNS iS MConnect Interface Manual, 1TGE120071R1000 is the base MConnect hardware configuration (mainboard only) and serves as the foundation for additional analog and digital I/O options.
Product Introduction
The ABB 1TGE120071R1000 is the mainboard used in the MNS iS MConnect intelligent motor control center platform. It functions as the core hardware for communication and control, allowing integration with optional analog and digital expansion modules within ABB’s intelligent low-voltage motor control systems.
This module is commonly installed in industrial MCCs used in power generation, oil and gas, mining, water treatment, and manufacturing facilities. Its modular architecture allows engineers to select only the required I/O functions while maintaining compatibility with the MNS iS platform.

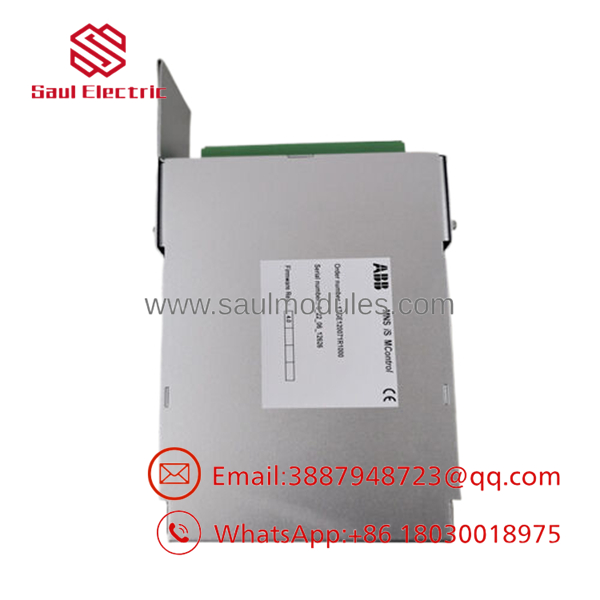

- 1TGE120071R1000

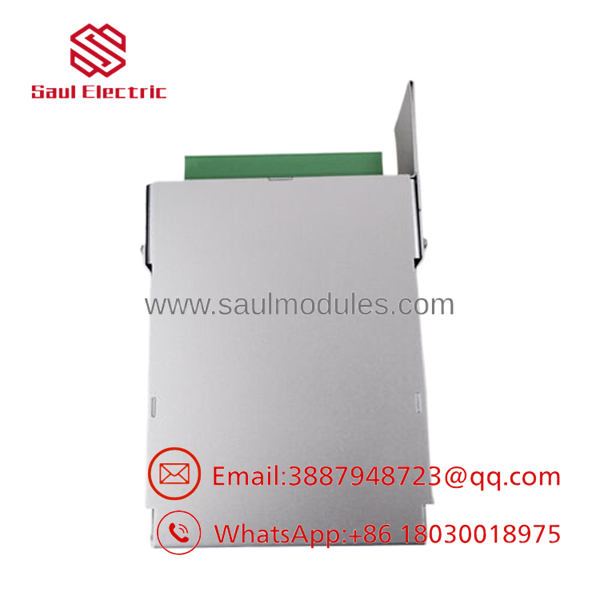

- 1TGE120071R1000
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Module does not power up | Missing control voltage | ❌ Low | Verify incoming control power and MCC supply | Check power distribution before replacing |
| Communication with MConnect lost | Mainboard communication fault | ✅ High | Review MNS iS diagnostics and communication LEDs | Verify configuration and network status |
| Expansion modules not detected | Incorrect installation | ✅ High | Confirm all expansion boards are fully seated | Reinstall and inspect connectors |
| Analog inputs unavailable | Optional I/O module missing | ❌ Low | Verify installed hardware matches project configuration | Install the required expansion module |
| Digital I/O inactive | Configuration mismatch | ⚠️ Medium | Compare engineering configuration with installed hardware | Reload or update configuration |
| Intermittent communication | Loose connectors or electrical noise | ⚠️ Medium | Inspect ribbon cables and grounding | Tighten connectors and improve shielding |
| System fails after replacement | Hardware configuration mismatch | ✅ High | Compare installed hardware ID with original assembly | Match the original module configuration before commissioning |
Technical Note: In MNS iS installations, communication problems are often caused by configuration errors, connector issues, or missing expansion modules rather than a failed mainboard. Verify the complete hardware configuration before replacing the unit.
Frequently Asked Questions (FAQ)
Q1. What is the ABB 1TGE120071R1000?
It is the MConnect mainboard used in ABB MNS iS Intelligent Motor Control Centers (iMCC). It serves as the base communication platform for optional analog and digital I/O modules.
Q2. Can it operate by itself?
Yes. The 1TGE120071R1000 is the base hardware configuration. Additional variants add optional analog inputs, digital I/O, or temperature measurement functions depending on the application.
Q3. Is it compatible with all MNS systems?
No. It is designed specifically for the ABB MNS iS platform. Compatibility with standard MNS or other MCC systems should be confirmed using the equipment documentation.
Q4. Can I replace the module without changing the control software?
In many cases, yes, provided the replacement has the same hardware configuration and the engineering parameters are restored. Always back up the existing configuration before replacement.
Q5. Is hot swapping supported?
No. ABB recommends de-energizing the control equipment before removing or installing the mainboard to prevent hardware damage and configuration errors.
Q6. What should I verify before ordering?
Confirm the following:
- Exact part number (1TGE120071R1000)
- MNS iS hardware version
- Installed optional I/O modules
- Firmware or configuration revision
- Complete MConnect assembly configuration
Documenting the original module layout and installed expansion cards before removal can significantly reduce commissioning time and help avoid compatibility issues.
