ABB 216VC62A HESG324442R13B REG216 Processing Unit

Description

Product Introduction

The ABB 216VC62A HESG324442R13B is the central processing unit used in the ABB REG216 Digital Generator Protection System. It performs all protection calculations, fault analysis, event recording, communication management, and system diagnostics required to protect synchronous generators and associated power system equipment.

Unlike conventional PLC processors, the 216VC62A is designed specifically for power system protection where deterministic response times are essential. The processor maintains protection settings in non-volatile Flash memory, records disturbance data, and supports integration with substation monitoring and automation systems through multiple communication interfaces. Verify the hardware revision and firmware version before replacing an installed unit.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Generator protection failures rarely happen during scheduled maintenance.

They happen when the generator is carrying full load, the excitation system is working hard, and the plant cannot afford an unexpected trip. At that point, every protection relay event, disturbance record, and timestamp matters.

The processing unit becomes the heart of the protection system.

Typical Applications

Power Generation — Generator differential protection — Executes protection algorithms and trip logic for large synchronous generators.

Hydroelectric Plants — Turbine-generator protection — Processes voltage, current, and fault information while maintaining disturbance records.

Combined Cycle Plants — Generator protection panels — Coordinates protection functions with excitation and breaker control.

Industrial Cogeneration — Steam turbine generators — Provides deterministic protection calculations and event recording.

Utility Substations — Generator protection cubicles — Interfaces with station automation systems and supervisory control.

Field Case Study

A combined-cycle power station experienced repeated communication failures between its generator protection system and the station automation network following an unplanned outage.

Initial troubleshooting focused on the communication interface. However, detailed diagnostics identified a failing 216VC62A HESG324442R13B processing unit that intermittently corrupted event memory.

After installing a verified replacement processor, restoring the protection settings, synchronizing the internal clock, and validating relay functions through secondary injection testing, the REG216 system returned to normal service without further communication or protection alarms.

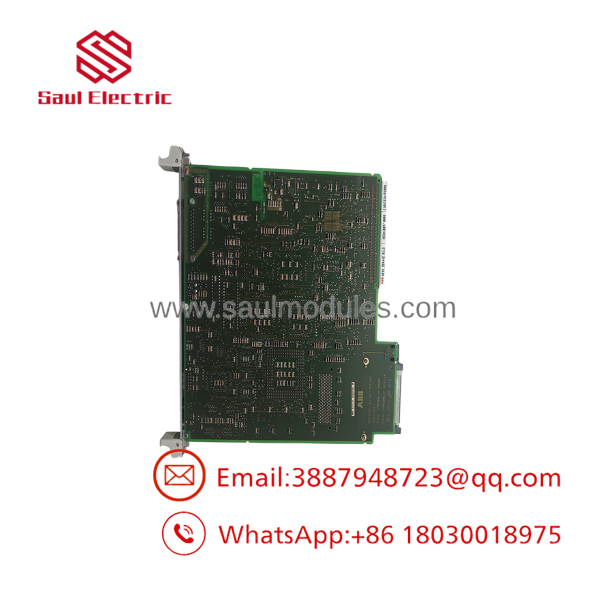

216VC62A HESG324442R13B

216VC62A HESG324442R13B

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB REG216 protection racks whenever practical.

• Inbound Inspection
  • Verify ABB labels and ordering numbers.
  • Inspect PCB condition and connector integrity.
  • Check for corrosion, overheating, or unauthorized repairs.
• Live Rig Testing
  • Install the processor in a REG216 test rack.
  • Verify successful system startup.
  • Confirm communication through the RS-423 interface.
  • Check event logging and diagnostic functions.
• Electrical Parameter Checks
  • Verify power rails.
  • Inspect memory integrity.
  • Test communication ports.
  • Validate processor operation.
• Firmware Verification
  • Record firmware revision.
  • Confirm hardware compatibility.
  • Verify non-volatile memory operation.
• Final QC & Anti-static Packaging
  • Complete functional inspection.
  • Anti-static packaging.
  • Shock-resistant export protection.
  • Serial number traceability.

The Veteran’s Tech Trap Guide

⚠️ Back up the relay settings before removing the processor.

The application configuration is often unique to a specific generator. Losing those settings can significantly extend commissioning time.

⚠️ Match the firmware revision whenever possible.

Different firmware revisions may require updated configuration files or engineering software before the relay will operate correctly.

❗ Don’t ignore the internal clock.

Protection event timestamps are critical after a trip. Verify time synchronization before returning the relay to service.

⚠️ Perform complete secondary injection testing after replacement.

A successful power-up does not confirm protection performance. Verify every protection element before reconnecting the generator to the grid.

Frequently Asked Questions (FAQ)

Q1. What is the ABB 216VC62A HESG324442R13B?

It is the central processing unit for the ABB REG216 Digital Generator Protection System, responsible for executing protection algorithms, communications, diagnostics, and event recording.

Q2. Which systems use this processor?

It is designed specifically for ABB generator protection relays used in power generation, industrial plants, and utility substations.

Q3. Is the processor hot-swappable?

No.

Always isolate the protection rack before replacing the processor. Removing the CPU while energized will interrupt protection functions and may compromise event recording.

Q4. Will replacing the processor erase the protection settings?

It can if the settings have not been backed up. Always save the complete relay configuration before replacing the processor and restore it after installation.

Q5. Why does the relay still report faults after installing a replacement processor?

Possible causes include:

• Incorrect firmware revision
• Configuration mismatch
• Communication interface settings
• Incompatible hardware revision
• Missing or corrupted protection settings

Replacing the CPU alone does not automatically restore the complete protection system.

Q6. What warranty is typically available?

Most industrial surplus suppliers provide a 12-month warranty covering functional defects after installation. Warranty terms vary by supplier.

Q7. What should be verified before ordering?

Confirm the following:

• ABB Model: 216VC62A
• Ordering Number:
• hardware revision
• Firmware version
• Existing protection configuration
• Communication interface requirements
• Rack compatibility

Finally, compare the installed processor’s complete ordering number and firmware revision with the replacement unit before installation. In generator protection systems, maintaining hardware and firmware compatibility is essential to avoid unnecessary recommissioning.
