Product Introduction & Engineering Value
Unplanned trips on large turbogenerators often trace back to aging digital relay cards losing time sync or dropping event logs during power dips. The ABB 216VC62a card remedies this vulnerability by running primary protection algorithms while managing interbay communication without relying on battery maintenance.
Engineered specifically for REG 216 and REC 216 racks, this processing unit links front-end engineering software directly to local B448C internal buses. It retains critical disturbance recorder data during utility blackouts, ensuring full diagnostic capability when restoring grid stability.
Technical Specifications
- Operating Architecture: Modular processor for ABB RE. 216 digital protection chassis.
- Processor Processing Headroom: Rated at 425% standard base computing capacity.
- Internal Bus Interface: Direct optical and electrical coupling to the B448C backplane.
- Protocols Supported: Built-in SPA BUS, with card options for LON BUS, MCB interbay bus, and MVB process bus.
- Front Panel Interface: 25-pin D-sub port operating on RS-423A / CCITT V.10 signal levels (\pm 4.5 V).
- Serial Baud Rates: Adjustable asynchronous transmission from 1200 up to 19200 Baud.
- Volatile Memory Protection: Integrated gold capacitor backup (no lithium battery to bleed or swell).
- Internal Time Sync: Synchronizes via SMS/SCS object bus or dedicated radio clock inputs.
- Operating Auxiliary Voltage: 24V DC logic supply derived from rack 216NG power modules.
- Dimensions & Weight: Standard 216-series rack slot form factor; weight approx. 0.7 kg to 0.8 kg.
Field Application & The “Trench” Experience
The Trench Story: During a midnight emergency restart at a 450 MW combined-cycle plant, Unit 2’s main generator protection rack threw an unrecoverable internal bus fault on its primary processor. The original card lost its clock reference, blinding the operator’s EVECOM software to real-time trips. The site engineer swapped in a pre-tested HESG324442R13E module. Because the gold capacitor preserved the offline config parameters, the engineering team re-flashed system logic, synced the clock over the object bus, and had the generator back online within 90 minutes.
Target Industrial Applications:
- Hydroelectric Generator Tripping Schemes: Processing stator ground fault and overexcitation differential algorithms.
- Combined-Cycle Gas Turbine Protection: Managing high-speed trip outputs to circuit breakers while logging fault waves.
- Substation Automation System (SAS) Gateways: Mapping SPA BUS telemetry to interbay bus protocols across utility switchyards.

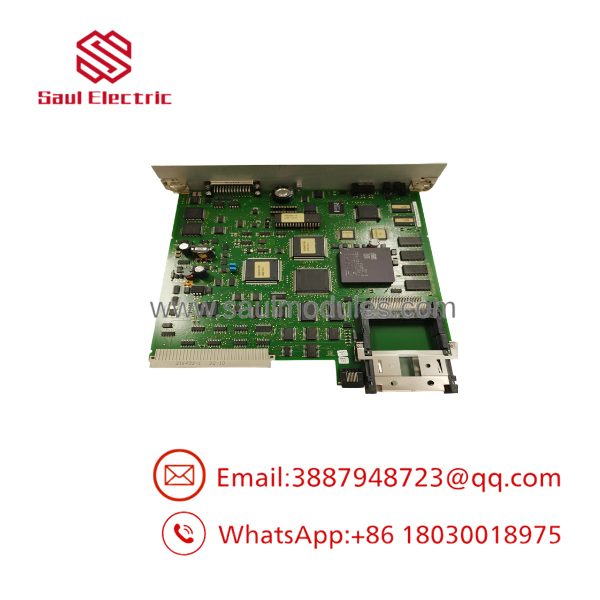

- 216VC62a HESG324442R13E HESG324442R112F

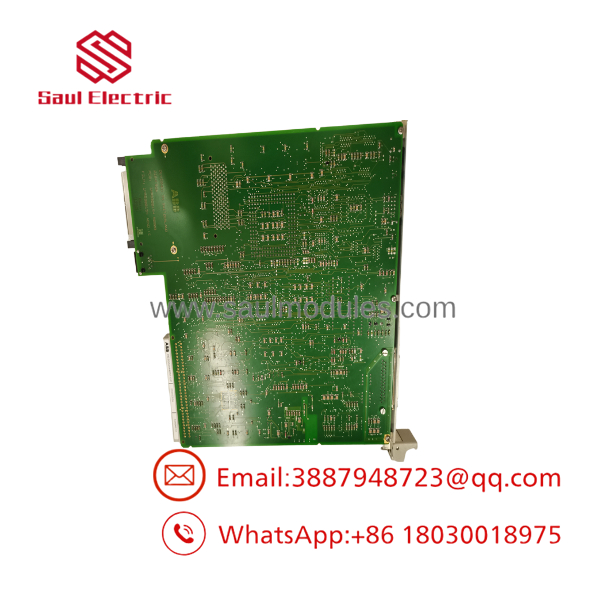

- 216VC62a HESG324442R13E HESG324442R112F
Transparency SOP: QA & Testing
- Visual Inspection: High-magnification check for PCB trace hairline fractures, degraded solder joints, and gold condenser leakage.
- Backplane Power-Up Test: Insertion into a live REG 216 test rack driven by dual 216NG power supply units.
- Communication Verification: Full baud rate sweep across the 25-pin front RS-423A interface using ABB EVECOM diagnostics software.
- Power Interruption Simulation: Main DC power is cycled for 24 hours to verify the gold condenser maintains disturbance recorder memory integrity without data corruption.
- Burn-in Cycle: 48-hour continuous thermal chamber run at 40°C under active bus traffic load.
The Veteran’s Tech Trap Guide
- ⚠️ Serial Voltage Level Mismatch: The 25-pin front connector relies on RS-423A levels (\pm 4.5 V). Plugging a standard USB-to-RS232 adapter directly into this port without an isolated converter will cause erratic serial framing errors or drop connections mid-firmware download.
- PRO TIP: When replacing an older revision (like R13E) with a newer revision (like R112F), check your subrack jumpers. Certain daughtercard slots for MVB or LON BUS protocol options require precise termination jumpering on the B448C backplane before applying 24V auxiliary power.
- ⚠️ Redundant Power Supply Sequence: If your RE. 216 rack runs dual 216NG power modules, switching off only one power supply will NOT power down the card. You must isolate both supply units before pulling or inserting the 216VC62a card to prevent bus logic damage.
Dynamic FAQ
Q: What is the main hardware difference between HESG324442R13E and HESG324442R112F?
A: Both are functionally compatible 216VC62a processor cards. The ‘R112F’ revision incorporates updated surface-mount components and refreshed processing headroom designed for expanded memory handling in larger REG 216 protection topologies.
Q: Does the 216VC62a board use an internal lithium battery that needs routine replacement?
A: No. The card uses an industrial gold capacitor (supercapacitor) to maintain event logs and clock data during power outages, eliminating maintenance downtime associated with depleted batteries.
Q: How do I read out disturbance recorder data directly from the front panel?
A: Connect a PC running ABB’s EVECOM evaluation software to the front 25-pin RS-423A serial interface. Ensure your laptop software matches the baud rate set on the card (1200–19200 Baud).
Q: How are your New Surplus and Refurbished 216VC62a cards packaged and warranted?
A: Every card is packed in anti-static ESD shielding bags with custom foam casing and includes a full 1-year replacement warranty.
