Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 3ADT220134R0001 |
| Product Name | SDCS-COM-81 |
| Brand | ABB |
| Product Type | DDCS Communication Board (10 MBaud CH0) |
| Communication Speed | 10 MBaud via fiber optic channels |
| Communication Protocol | DDCS (Distributed Drive Control System) |
| Compatible Systems | DCS800 DC drives, AC800M control systems, ACS800 drives |
| Dimensions (HxWxD) | 50 x 150 x 225 mm (approx.) |
| Net Weight | 0.5 kg (approx.) |
| Power Supply | Supplied via host drive backplane |
| Operating Temperature | 0°C to 55°C (typical) |
| Mounting | Plug-in card into drive control board slot |
Product Introduction & Supply Chain Strategy
The ABB 3ADT220134R0001, identified as the SDCS-COM-81, is a high-speed DDCS communication board for ABB drive and DCS systems. It provides a 10 MBaud fiber optic link between ABB drives (DCS800, ACS800) and higher-level control systems like the AC800M. This module enables real-time data exchange for synchronized motor control, speed coordination, and process integration in distributed control architectures.
Procuring this board as New Surplus is a calculated TCO decision. Fiber optic communication modules are sensitive components — used or refurbished units risk degraded optical transceivers, latent ESD damage, or undocumented repairs. A failed communication link between a drive and its controller stops the driven equipment immediately. The cost of an emergency shutdown on a critical pump or conveyor system dwarfs the price difference between a refurbished gamble and a verified new unit. This module offers zero operational hours, OEM-origin traceability, and a full warranty — eliminating the uncertainty of used stock.

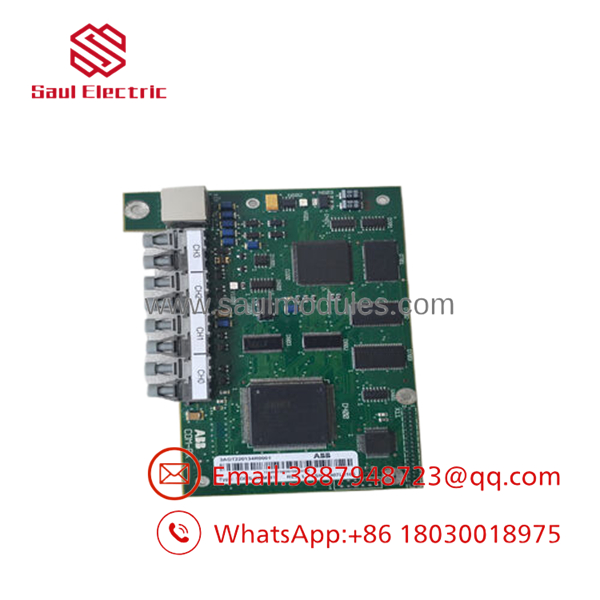

- 3ADT220134R0001

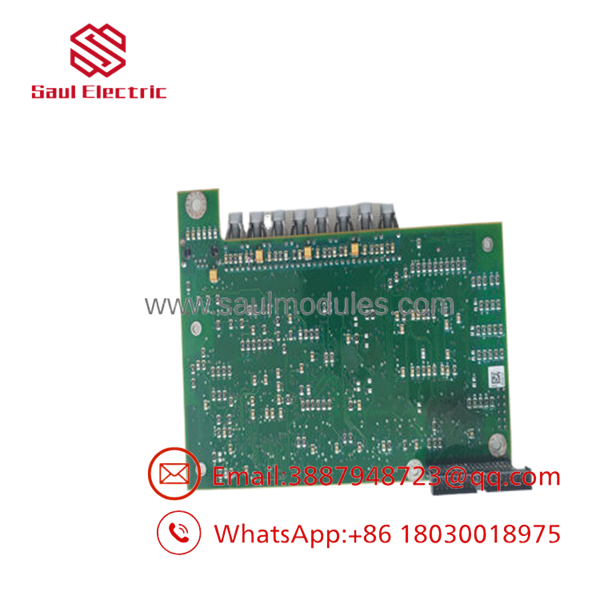

- 3ADT220134R0001
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Lock out and tag out the drive cabinet. Disconnect main power and auxiliary supplies.
- Gather ESD wrist strap and a camera for documentation.
- Critical: Photograph the existing board’s position, any jumper settings, and the fiber optic cable connections (TX/RX orientation).
Stage 2: Removal
- Note the fiber optic cable positions before disconnecting — label them if not already identified.
- Carefully unplug the fiber optic cables from the board’s transceivers.
- Remove the retaining screws or clips securing the board to the drive chassis.
- Gently pull the board straight out from its slot. Do not force or rock the board.
Stage 3: Installation (Clone & Seat)
- Align the new board with the guide rails and slot connector.
- Press firmly but evenly until fully seated in the backplane connector.
- Secure with the original retaining screws or clips.
- Reconnect the fiber optic cables to the correct ports (TX/RX matching).
Stage 4: Power-On & Testing
- Re-energize the drive cabinet power.
- Observe the board’s LED indicators for power and communication status.
- Verify communication handshake with the host controller from the drive interface or the DCS.
- Confirm real-time data exchange — speed reference, actual values, and status words.
Firmware/Software Versions & Upgrade Notes
The SDCS-COM-81 is a hardware communication interface with no field-upgradeable firmware. The board’s functionality is determined by the drive firmware and the DDCS protocol configuration.
Version compatibility note: The board is compatible with DCS800 DC drives and AC800M control systems-1. Verify the hardware revision level if replacing in a mixed-vintage system. The board’s 10 MBaud CH0 designation is critical for matching system communication speed.
Critical warning: Do not hot-swap this module. Always de-energize the drive cabinet before removal or installation to prevent backplane damage and communication bus faults.
Frequently Asked Questions (FAQ)
Q: Why is this New Surplus cheaper than ABB list price but more expensive than refurbished units?
A: The price reflects sourcing verified, OEM-origin new units from global inventory. You avoid OEM full retail margin and the hidden failure risk of refurbished stock — degraded optical transceivers and latent ESD damage that cause intermittent communication dropouts.
Q: Is this module still active or is it EOL?
A: The SDCS-COM-81 remains active in support channels for DCS800 and AC800M installed bases. Many plants still operate these systems, making this a critical spare for brownfield applications.
Q: Can I hot-swap this board while the drive is powered?
A: No. Always de-energize the drive cabinet before insertion or removal to prevent backplane damage or communication faults.
Q: Does replacing this board require reconfiguring drive parameters?
A: No. The communication parameters reside in the drive’s main control configuration. The SDCS-COM-81 is a passive interface — once installed, the drive recognizes the board and resumes DDCS communication automatically.
Q: What is the warranty period and coverage?
A: The module carries a standard 1-year warranty against manufacturing defects. Coverage applies to the module hardware — not to field fiber optic cables, external wiring, or damage from improper installation. All units undergo QC testing to verify fiber optic communication handshake.
