Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product ID | 3AFE61320946P0001 |
| ABB Type Designation | LD MUI-01 |
| Product Name | Measuring Unit |
| Product Type | Spare Part |
| Application | ABB Industrial Drive Systems |
| Function | Measurement and signal processing |
| Net Weight | 0.20 kg |
| Gross Weight | 0.20 kg |
| Country of Origin | Finland |
| Minimum Order Quantity | 1 Piece |
| Replacement Product ID | 61320946 |
The official ABB product information identifies this module as LD MUI-01, a measuring unit supplied as a replacement component for ABB drive equipment.
Product Introduction

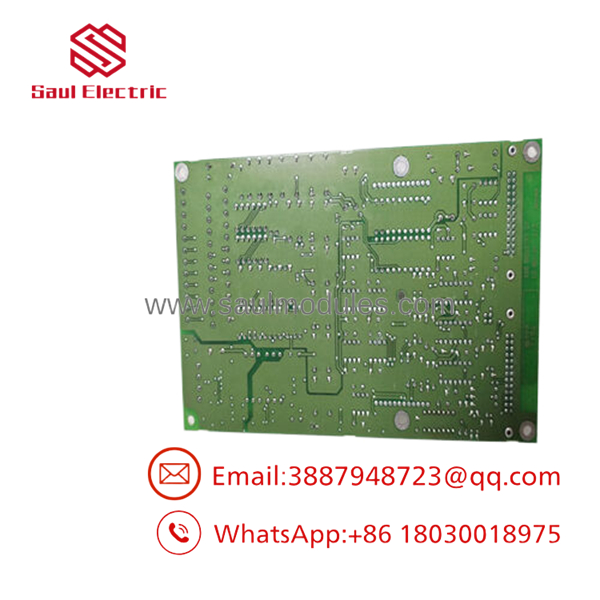

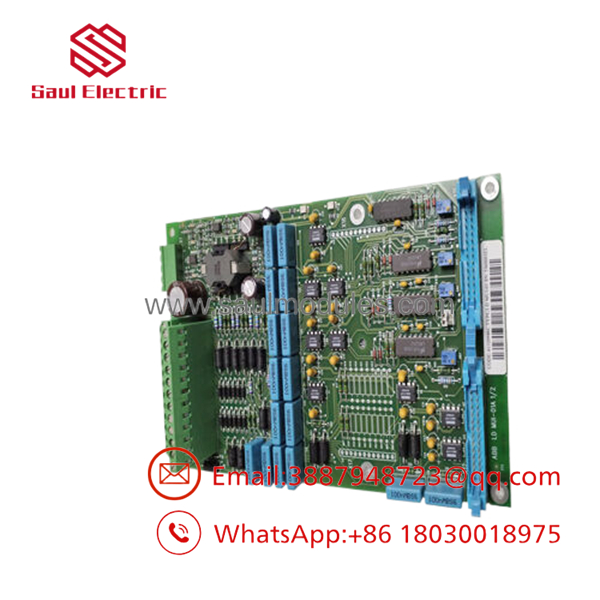

The ABB 3AFE61320946P0001 LD MUI-01 is a measuring unit used within selected ABB industrial drive platforms. It acquires measurement signals required by the drive control system for stable operation and protection functions. As an original ABB spare part, it is intended for maintenance and replacement of existing drive assemblies rather than new standalone installations.
When replacing this module, engineers should verify the complete drive model, hardware revision, and firmware compatibility. Although the LD MUI-01 shares a common spare-part designation, compatibility depends on the specific drive platform and cabinet configuration.
- 3AFE61320946P0001
- 3AFE61320946P0001
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Drive reports measurement fault | Measuring unit failure | ✅ High | Review drive diagnostic log and fault code | Compare with ABB service manual before replacement |
| Incorrect current or voltage feedback | Sensor wiring issue | ❌ Low | Measure sensor signals using calibrated equipment | Verify external sensors first |
| Drive trips during startup | Missing measurement signals | ✅ High | Check connectors between LD MUI-01 and control board | Reseat connectors before replacing module |
| Intermittent faults | Loose connectors or vibration | ⚠️ Medium | Inspect terminals and board seating | Tighten connectors and inspect for damage |
| Analog values unstable | Electrical interference | ⚠️ Medium | Check cabinet grounding and shield continuity | Improve grounding and cable routing |
| No communication with measuring circuit | Internal module fault | ✅ High | Test with a known-good LD MUI-01 module | Replace only after confirming external wiring |
| Replacement does not resolve issue | Main control board fault | ❌ Low | Perform complete drive diagnostics | Continue troubleshooting beyond the measuring unit |
Technical Note: In field service, measurement-related alarms are frequently caused by damaged sensors, loose signal cables, poor grounding, or connector oxidation rather than a failed measuring unit. Always verify field wiring before replacing the LD .
Frequently Asked Questions (FAQ)
Q1. What is ABB 3AFE61320946P0001?
It is the , supplied as an original spare part for compatible ABB industrial drive systems.
Q2. Is this a standalone controller?
No. The LD is an internal drive component. It operates as part of an ABB drive assembly and is not intended to function independently.
Q3. How do I confirm compatibility?
Verify:
- Drive model
- Product code
- Hardware revision
- Firmware version
- Existing LD part number
Matching only the part number is not always sufficient for complex drive systems.
Q4. Can I hot-swap this measuring unit?
No. ABB recommends isolating all power sources and waiting for the DC bus to discharge before servicing any internal drive module. Replacing internal boards under power can damage both the module and the drive.
Q5. Is 61320946 the same as 3AFE61320946P0001?
Yes. ABB identifies 61320946 as the replacement product ID associated with .
Q6. What condition is typically available?
Depending on inventory, this part is commonly available as:
- New Original
- New Surplus
- Professionally Tested Refurbished
For critical drive applications, request the hardware revision, inspection report, and functional test results before purchasing.
Q7. What should I document before replacing the module?
Before removal, record:
- Drive fault codes
- Parameter backup
- Hardware revision
- Connector locations
- Wiring photographs
- Firmware version
A complete maintenance record helps prevent extended downtime and simplifies commissioning after installation.
