Product Introduction & Engineering Value
Unplanned medium-voltage drive trips caused by phantom rectifier faults can halt an entire mill or pumping station. The ABB 3BHB002751R0106 rectifier supervision card solves this by maintaining continuous, isolated monitoring of the front-end rectifier section inside ACS1000 drives. It verifies thyristor gating and voltage conditions before minor line disturbances trigger catastrophic breaker trips.
Installing an authentic 3BHB002751R0106 board ensures exact hardware handshake timing with the main drive controller. Its factory-calibrated voltage sensing circuits eliminate false overvoltage alarms caused by age-drifted components. Drop it into your existing drive cabinet to restore original factory protection tolerances without recalibrating the entire front end.
Technical Specifications
- Part ID: 3BHB002751R0106
- Designation Code: SVA, XV C722 AE016
- Nominal Isolation Rating: 700 V
- Target Application: ACS1000 A/W (Air-Cooled & Water-Cooled) drives
- Primary Duty: Rectifier section voltage monitoring, SCR supervision, and cooling fan interlock
- Communication Interface: Optical fiber connection to main drive controller
- Mounting Configuration: Internal rack chassis mounting within MV enclosure
- Operating Ambient Temperature: 0°C to +55°C (32°F to 131°F)
- Country of Origin: Sweden / Switzerland
- Net Weight: 0.02 kg (Board level)
Field Application & The “Trench” Experience
The Field Story
During a scheduled overhaul at a municipal water treatment plant, a 3.3kV ACS1000 drive driving a primary intake pump began throwing intermittent “Rectifier Supervision Fault” alarms during soft-starts. Visual inspection of the original 3BHB002751R0106 board revealed heat degradation on the high-voltage divider resistors from years of continuous 24/7 duty. Replacing the aged board with a factory-tested surplus unit cleared the fault instantly. The drive hit 100% rated speed on the first power-up, avoiding a $45,000/day plant downtime penalty.
Critical Niche Applications
- Mining Slurry Pump Drives: Monitoring high-power thyristor bridge health in heavy-dust, high-vibration processing plants.
- Cement Kiln ID Fan Controls: Ensuring smooth AC-to-DC rectification under fluctuating grid supply conditions.
- Extruder Line Speed Control: Protecting multi-megawatt MV drives in chemical polymer compounding lines.

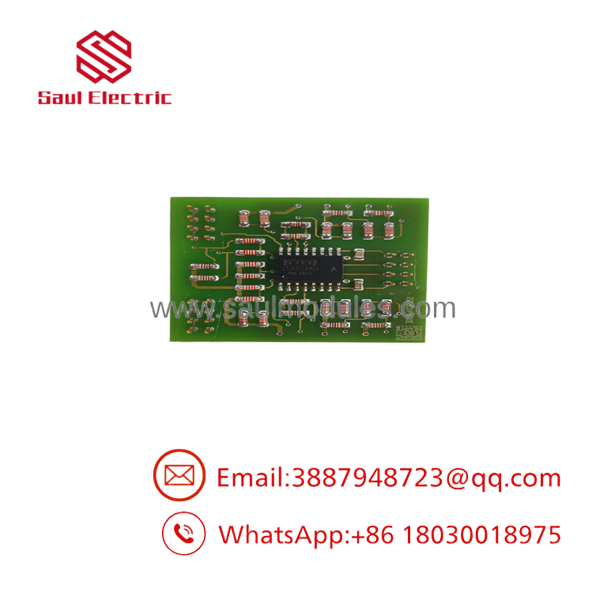

- 3BHB002751R0106

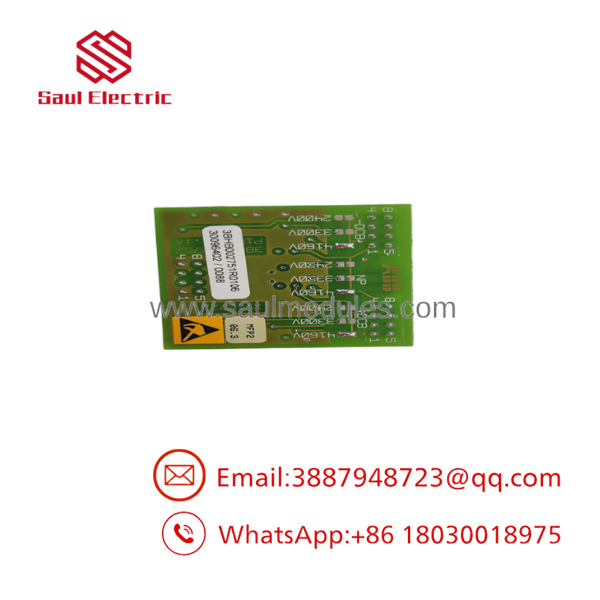

- 3BHB002751R0106
Transparency SOP: QA & Testing
Every replacement 3BHB002751R0106 board undergoes a rigorous 4-step quality verification process prior to dispatch:
- Static Inspection & Cleaning: Deep visual check under high magnification for trace fractures, solder fatigue, or swollen passive components, followed by an ESD neutral wash.
- Parametric Resistance & Diode Testing: Verification of input divider networks and optical channels against factory reference curves.
- Bench Power & Communication Verification: Powered testing on a dedicated test bench to confirm optical transceiver activity and internal power rail stability.
- Final Environmental & Packaging Prep: Vacuum sealed inside a heavy-duty static-shielding bag with desiccant and packed in custom foam-molded shipping containers.
The Veteran’s Tech Trap Guide
- PRO TIP: Check Fiber Cable Bend Radii. The optical links sending signal feedback from this card to the main processor card are sensitive. Kinking the fiber optic cables during replacement will cause signal attenuation, manifesting as sporadic optical link loss faults.
- ⚠️ DANGER: Residual Bus Capacitance! Never pull or seat the 3BHB002751R0106 board immediately after opening the MV cabinet. Wait at least 15 minutes after main breaker lockout, and verify with a calibrated high-voltage probe that the DC bus capacitors have completely discharged below 50V.
- PRO TIP: Mind the Conformal Coating. If operating in harsh or corrosive air environments (like paper mills or marine platforms), ensure the replacement board has the correct factory tropicalization coating before installation to prevent surface tracking across high-voltage traces.
Dynamic FAQ
Q: Is the 3BHB002751R0106 compatible with both air-cooled and water-cooled ACS1000 drives? A: Yes. The “A/W” designation in the catalog spec signifies that this supervision board is built to operate in both air-cooled (ACS1000A) and water-cooled (ACS1000W) drive configurations.
Q: Does replacing this board require firmware flashing or software reconfiguration? A: No. The 3BHB002751R0106 functions as a hardware monitoring module. Once installed, the main drive controller automatically recognizes the optical handshake without requiring parameters to be re-downloaded.
Q: How do you verify the authenticity of New Surplus units? A: All New Surplus items come in original ABB protective packaging with intact seal labels and matching serial numbers on the board’s barcode tag.
Q: What is the warranty coverage on this replacement board? A: Every unit—whether New Surplus or fully reconditioned—includes a full 12-month operational warranty covering all hardware defects.
Q: How quickly can this board ship for an emergency shutdown situation? A: Orders placed before 3:00 PM EST ship the same day via priority express options (including overnight air freight) to minimize your facility’s mean time to repair (MTTR).
