ABB 3BHB005243R0106 KUC755AE106 Gate Unit Power Supply

Description

3. Key Technical Specifications

• Model Number: 3BHB005243R0106 (KUC755 AE106)
• Type: Gate Unit Power Supply / Digital Output Module
• Function: Supplies power to gate units in drive systems
• Outputs: Digital outputs for control
• Power Consumption: Up to 48 W max (typical)
• Operating Temperature: Industrial range (0 °C to +60 °C typical)
• Mounting: Rack or module installation in ABB drives
• Interfaces: Screw terminals
• Applications: Exciter control, variable speed drives
• Features: High reliability for power conversion and control

4. Product Introduction

The ABB 3BHB005243R0106 (KUC755AE106) is a gate unit power supply module used in ABB drive and exciter systems. It provides controlled power and digital outputs for gate firing in power electronics applications.

This module ensures stable operation of drive converters and is critical for maintaining performance in medium voltage and high power industrial drives.

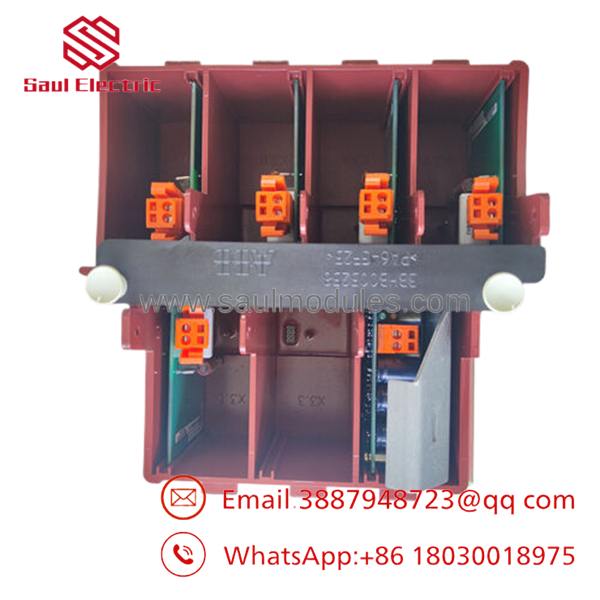

3BHB005243R0106

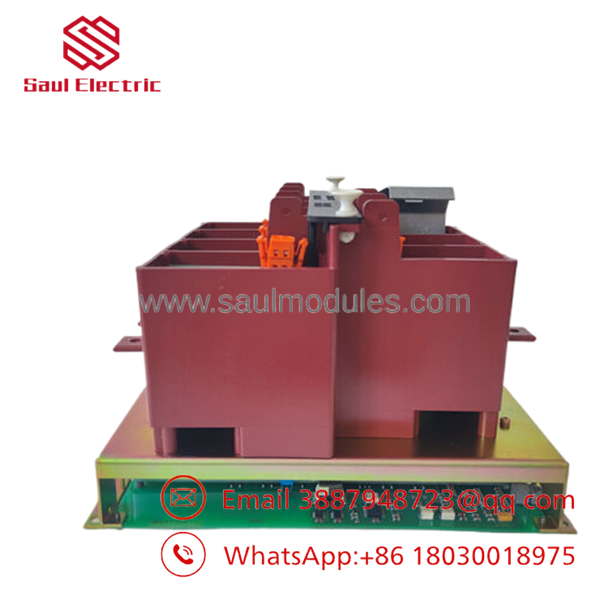

3BHB005243R0106

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (10–15 minutes) ⚠️ Safety First: Lock out/tag out drive power, verify zero energy state, wait for capacitor discharge. Tools Required: ESD strap, screwdriver, multimeter. Data Backup: Document wiring and settings.

Stage 2: Removing the Old Module (5–10 minutes)

1. Disconnect power and signal cables.
2. Label connections.
3. Remove module from rack.
4. Inspect connectors. ⚠️ Note: Keep old module for reference.

Stage 3: Installing the New Module (10 minutes)

1. ESD safe. Verify model match.
2. Insert into slot and secure.
3. Reconnect wiring per diagrams. Self-Checklist: [ ] Secure mounting, [ ] Wiring correct, [ ] Terminals tight.

Stage 4: Power-On & Testing (15–30 minutes) Pre-Power Check: Measure voltages, check for shorts. Power-On Steps:

1. Energize control power.
2. Monitor status indicators.
3. Verify gate supply output.
4. Test drive operation under no-load.

⚠️ Troubleshooting Note: No output may indicate input power or fuse issues. Use drive diagnostics for faults.

6. Frequently Asked Questions (FAQ)

Can this module be hot-swapped? No. Follow full lockout procedures due to high power risks.

Is this model obsolete? It is a spare part for legacy and active ABB drive systems. New Original or New Surplus available.

What is the direct replacement? Confirm with ABB for updated equivalents matching your drive type.

Will parameters need adjustment? Usually plug-and-play after wiring match. Verify drive configuration.

Why lower price? Tested surplus stock with QC. Genuine ABB hardware at lower cost.
