Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BHB006338R0002 |
| Type Designation | UNS 0881a-P, V2:GDI |
| Product Description | PCB Assembled (Gate Driver Interface) |
| Product Type | Printed Circuit Board Assembly |
| Application | ABB Excitation & Power Electronics Systems |
| Function | Gate Driver Interface |
| Country of Origin | Switzerland |
| Customs Tariff | 85371092 |
| Mounting | Internal equipment installation |
| Spare Part Category | Original ABB Service Spare |
| Minimum Order Quantity | 1 Piece |
Industry service documentation identifies this PCB as the Gate Driver Interface (GDI) used in ABB excitation systems such as UNITROL 6000 X-power and UNITROL 5000 Static Excitation Systems, where it controls the firing of power semiconductor devices.
Product Introduction

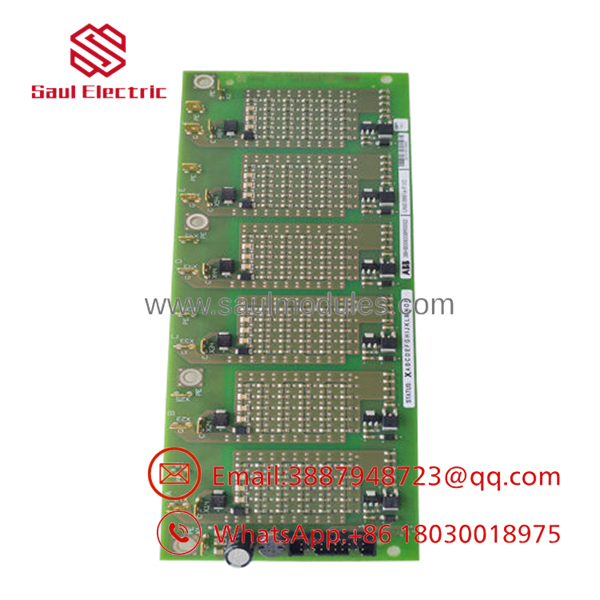

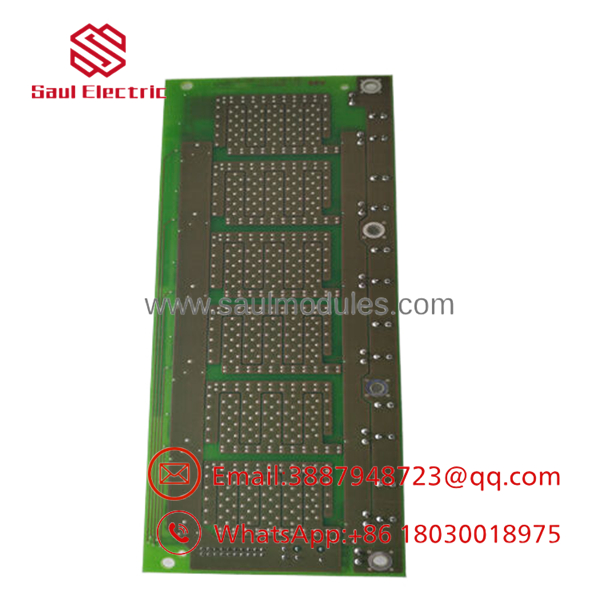

The ABB 3BHB006338R0002 UNS 0881a-P, V2:GDI is a gate driver interface PCB designed for ABB power electronics and static excitation systems. It provides the interface between the controller and the high-power semiconductor switching stage, ensuring accurate firing pulses and electrical isolation for reliable excitation control.
This PCB is typically installed inside UNITROL excitation cabinets used for synchronous generators, power plants, and heavy industrial drive systems. Because it directly influences semiconductor switching, replacement should always follow ABB maintenance procedures, including verification of hardware revision and associated gate driver circuitry.
- 3BHB006338R0002
- 3BHB006338R0002
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Exciter fails to build voltage | Gate driver interface fault | ✅ High | Review UNITROL diagnostic alarms and firing pulse status | Verify GDI board before replacing power devices |
| Thyristors or IGBTs not firing | Missing gate pulses | ✅ High | Measure gate trigger signals using an isolated oscilloscope | Inspect the GDI board and gate wiring |
| Generator excitation unstable | Feedback or driver circuit issue | ⚠️ Medium | Compare firing angles and excitation feedback | Check sensors before replacing the PCB |
| Repeated semiconductor faults | Faulty gate drive output | ✅ High | Inspect gate pulse transformers and output connectors | Verify the entire firing circuit |
| Communication alarms | Controller configuration issue | ❌ Low | Review controller diagnostics | Configuration problems are more common than PCB failure |
| Intermittent operation | Loose connectors or PCB contamination | ⚠️ Medium | Inspect connectors and PCB for oxidation or contamination | Clean and reseat the board |
| Replacement board not recognized | Hardware revision mismatch | ✅ High | Verify PCB revision and system compatibility | Match the original hardware revision before commissioning |
Technical Note: In excitation systems, gate driver boards are often replaced unnecessarily. Before installing a new 3BHB006338R0002, confirm the DC control supply, firing transformer, semiconductor stack, fiber or trigger wiring, and controller diagnostics. Many firing faults originate outside the GDI board.
Frequently Asked Questions (FAQ)
Q1. What is the ABB 3BHB006338R0002 used for?
It is a Gate Driver Interface (GDI) PCB that controls the triggering of power semiconductor devices within ABB excitation and power electronics systems.
Q2. Which ABB systems use this board?
It is commonly associated with ABB UNITROL 6000 X-power and UNITROL 5000 Static Excitation Systems, depending on the equipment configuration and hardware revision. Always verify compatibility against the installed system documentation.
Q3. Can I replace this PCB while the excitation system is energized?
No. The excitation cabinet contains hazardous voltages and stored energy. Isolate all power sources, verify that DC bus capacitors have discharged, and follow ABB lockout/tagout procedures before servicing.
Q4. What should I check before replacing the board?
Record and verify:
- Exact part number (3BHB006338R0002)
- Hardware revision
- Excitation system model
- Diagnostic and fault codes
- Gate pulse measurements
- Semiconductor condition
- Connector locations and wiring
These checks often reveal whether the fault is in the GDI board or elsewhere in the firing circuit.
Q5. Is this board field-programmable?
No. The UNS 0881a-P, V2:GDI is a hardware interface board. System parameters are managed by the excitation controller rather than stored on the PCB itself.
Q6. What product conditions are typically available?
This part is commonly available as:
- New Original
- New Surplus
- Professionally Tested Refurbished
For critical generator excitation applications, request the board revision, inspection report, and functional test documentation before purchase.
