Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BHB009884R5211 |
| ABB Type Designation | S-073N |
| Product Description | Phase Module |
| Product Type | Medium-Voltage Power Module |
| Application | ACS6000 Medium-Voltage AC Drives |
| Technology | IGCT-based Power Electronics |
| Function | Power Conversion / Phase Switching |
| Cooling | Integrated Cooling Assembly (system dependent) |
| Installation | Drive Cabinet Internal Module |
| Approximate Weight | 175 kg |
| Typical Industries | Mining, Metals, Cement, Oil & Gas, Power Generation |
The S-073N phase module forms one of the primary power conversion stages within ABB medium-voltage variable speed drives and is designed for demanding industrial applications requiring high power and continuous operation.
Product Introduction
The ABB 3BHB009884R5211 S-073N is a high-power phase module designed for ABB ACS6000 medium-voltage drive systems. It integrates the main power semiconductor devices and associated circuitry required for phase switching and energy conversion in large industrial motor drive applications.
This module is typically installed in high-power drive cabinets serving compressors, pumps, fans, conveyors, mills, and other critical process equipment. Because it is part of the drive’s main power stage, replacement requires verification of system configuration, cooling components, and matching hardware revisions.

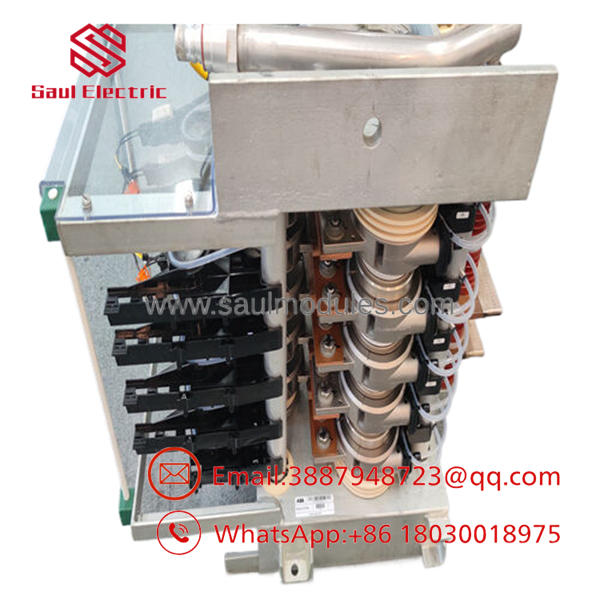

- 3BHB009884R5211 S-073N

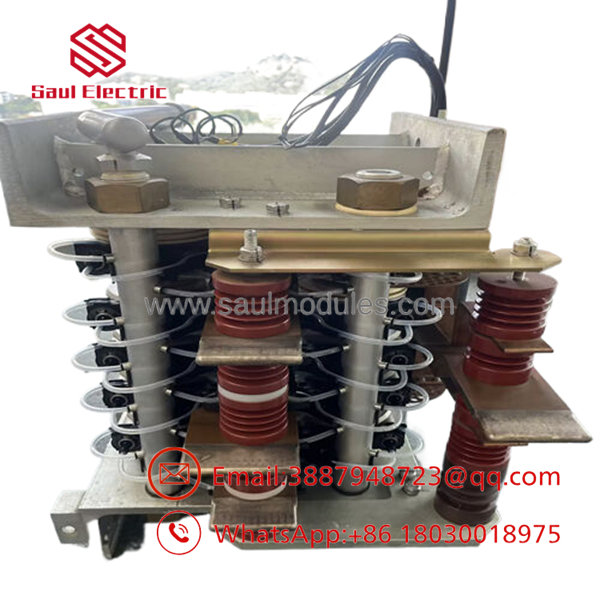

- 3BHB009884R5211 S-073N
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Drive trips with phase module fault | Internal power module failure | ✅ High | Review ACS6000 diagnostic log and fault history | Confirm module fault before replacement |
| Output voltage imbalance | Failed semiconductor device | ✅ High | Measure phase voltages using approved HV test procedures | Inspect all phase modules |
| Ground fault alarm | Insulation breakdown | ✅ High | Perform insulation resistance testing after isolation | Verify cable and motor before replacing module |
| Cooling system alarm | Cooling failure | ⚠️ Medium | Check coolant flow, fans, and heat exchangers | Restore cooling before restarting |
| Repeated IGCT protection trips | Gate drive or control issue | ⚠️ Medium | Review gate drive diagnostics and firing signals | Inspect driver boards before replacing power module |
| Drive will not start | DC bus or controller fault | ❌ Low | Verify DC bus voltage and control system status | Rule out upstream faults first |
| Replacement module reports hardware mismatch | Incorrect module revision | ✅ High | Compare serial numbers and hardware revisions | Install the correct ABB-approved replacement |
Technical Note: Phase modules are among the most expensive components in a medium-voltage drive. Before replacing the S-073N module, verify cooling performance, gate driver boards, DC bus voltage, fiber-optic communication, and control diagnostics. In many cases, an external fault triggers a phase module alarm even when the module itself remains serviceable.
Frequently Asked Questions (FAQ)
Q1. What is the ABB 3BHB009884R5211?
It is the S-073N Phase Module, a major power conversion assembly used in ABB ACS6000 medium-voltage variable frequency drives. It contains the high-power switching devices required for inverter operation.
Q2. Is this a control board?
No. Unlike standard PLC or interface boards, the 3BHB009884R5211 is a high-power phase module installed in the main power section of the drive.
Q3. Can I replace only one phase module?
Yes, provided ABB service procedures are followed. Before installation, verify:
- Hardware revision
- Drive software compatibility
- Cooling system condition
- Gate driver interface
- Matching phase module configuration
Replacing only one module without checking the remaining power stage can lead to repeat failures.
Q4. Can the module be hot-swapped?
No. The drive must be completely de-energized. Medium-voltage drives contain hazardous stored energy even after power removal. Always follow ABB lockout/tagout procedures and verify DC bus discharge before servicing.
Q5. Why do phase module faults occur?
Common causes include:
- Cooling system failure
- IGCT or gate driver faults
- Overcurrent events
- Motor cable insulation failure
- DC bus abnormalities
- Grid disturbances
A phase module alarm does not necessarily indicate a defective module. System diagnostics should always be completed first.
Q6. What condition is typically available?
Depending on inventory, the module is commonly supplied as:
- New Original
- New Surplus
- Professionally Tested Refurbished
For this class of equipment, request the hardware revision, functional test documentation, insulation test results, and inspection report before purchase.
