Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 3BHB018162R0001 |
| Associated Product | 5SHY4045L0001 |
| Brand | ABB |
| Product Type | IGCT Gate Unit / Power Module |
| Rated Current | Approximately 4000 A |
| Rated Voltage (VDRM) | Approximately 4500 V |
| Control Power | 24 V DC nominal (18–30 VDC range) |
| Switching Speed | Nanosecond-class turn-off |
| Control Interface | Fiber-optic Rx/Tx links (noise-immune) |
| Cooling | Water-cooled or forced air (application-dependent) |
| Operating Temperature | -25°C to +70°C (typical) |
| Protection Rating | IP20 (cabinet-mounted) |
| Protection Features | Short-circuit, over-voltage, over-temperature, fault signaling |
Product Introduction & Supply Chain Strategy

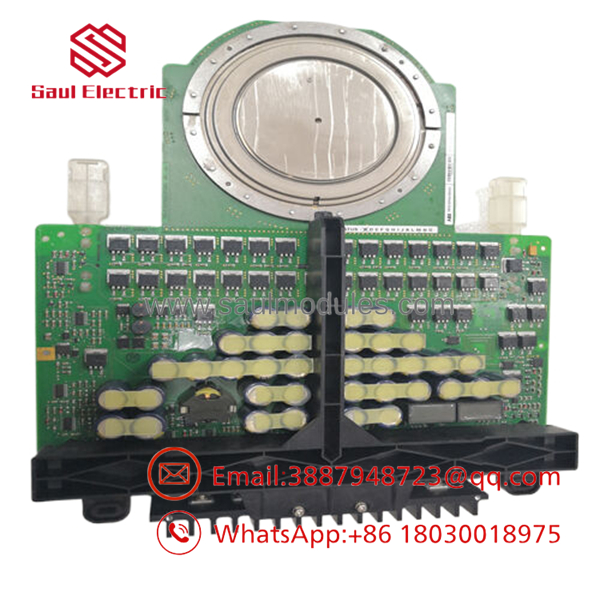

The ABB 3BHB018162R0001, typically identified with the product code 5SHY4045L0001, is a factory-original IGCT gate unit designed for ABB medium-voltage converter stacks. This module handles fiber-optic commands from the drive controller, delivers high-current gate drive signals to the IGCT power semiconductors, and reacts rapidly to fault conditions . You will find these units inside ACS1000, ACS5000, and ACS6000-class drive cabinets, particularly in high-power applications such as mine hoists, rolling mills, large compressors, and induced-draft fans . The IGCT technology combines the high current-carrying capability of a thyristor with the fast, controlled turn-off of a MOSFET, enabling efficient power conversion at multi-megawatt levels.
Procuring this module as New Surplus is a strategic TCO decision for any plant operating ABB MV drives. Refurbished IGCT gate units are a high-risk gamble: internal gate drivers can have degraded timing accuracy, opto-isolators may be compromised from prior overvoltage events, and coolant channel blockages can cause latent thermal damage. A failure in this gate unit results in immediate drive stack shutdown. The production loss from a single unplanned outage on a critical fan, pump, or conveyor exceeds the module’s value by orders of magnitude. This unit offers OEM-origin traceability, zero operational hours, and a full warranty — eliminating the uncertainty of used or repaired components . When the failure is localized to the gate unit, maintenance teams can typically swap and verify operation within a scheduled stop.
- 3BHB018162R0001
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Lock out and tag out the drive. Disconnect medium voltage input and verify DC bus capacitors are fully discharged per ABB safety procedure.
- Wear appropriate PPE for MV work.
- Gather ESD wrist strap, camera, and documentation for fiber optic cable routing.
- Critical: Identify and mark each fiber optic cable (Tx/Rx orientation) before disconnection. The fiber polarity is essential for correct operation.
Stage 2: Removal
- Gently disconnect the fiber optic cables from the gate unit. Inspect cable ends for debris or damage.
- Disengage the module from its mounting plate or stack assembly.
- Remove the unit carefully, noting any gate lead harness connections to the IGCT stack.
Stage 3: Installation
- Mount the new unit on the designated plate or standoffs; secure with original hardware to maintain creepage and clearance.
- Reconnect fiber optic cables to the exact ports (Tx/Rx orientation is critical). Verify connectors seat fully and click into place .
- Reconnect gate lead harnesses and any other stack interconnects.
Stage 4: Power-On & Testing
- Verify 24 VDC supply polarity and conditioning .
- Re-energize control power. Observe LED status — normal operation is indicated.
- Restore drive main power and perform pre-charge.
- Commissioning is typically straightforward when fiber polarity and 24 VDC supply are correct . Conduct a low-speed/no-load test to confirm proper gate firing and communication.
Firmware/Software Versions & Upgrade Notes
The IGCT gate unit is a hardware module with no user-updatable firmware . Its functionality is defined by the hardware revision and the drive controller’s firmware.
Version compatibility note: Compatibility can vary by drive generation and stack revision . Always verify the cabinet type and stack ID to confirm that 3BHB018162R0001 is the exact match for your position before shipment .
Critical warning: Only qualified ABB drive service personnel should access the medium voltage cabinet. This module resides in the high-power section and presents lethal voltages and stored energy even when disconnected from mains.
Frequently Asked Questions (FAQ)
Q: Why is this New Surplus cheaper than ABB list price but more expensive than refurbished units?
A: The price reflects sourcing verified, OEM-origin new units from global inventory. You avoid the OEM’s full retail margin and the hidden failure risk of refurbished stock — degraded gate drivers and latent thermal damage. The cost of a single MV drive failure on a critical compressor or pump dwarfs the price difference.
Q: Is this module still active or is it EOL?
A: This module remains in active support for ABB’s extensive MV drive installed base However, with ABB’s focus shifting to newer platforms, securing a new surplus unit now protects against future lead time increases.
Q: Can I hot-swap this module while the drive is running?
A: No. This is not a hot-swappable module. Always de-energize and discharge the DC link before any service work .
Q: What happens if the gate unit fails during operation?
A: The IGCT stack cannot switch. The drive faults immediately and stops the motor. This is a critical failure that requires replacement to restore operation.
Q: What is the warranty period and coverage?
A: The module carries a standard 1-year warranty against manufacturing defects . Coverage applies to the module hardware — not to field wiring, installation damage, or external surges. All units are QC-tested before shipment to verify communication handshake and gate drive functionality.
