Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BHB020684R0001 |
| Semiconductor Type | 5SNG015045P0301 |
| Product Type | IGBT Power Module |
| Technology | IGBT Power Semiconductor |
| Package | High-power industrial module |
| Primary Function | Power switching and motor drive control |
| Application | Medium-voltage AC drives and power converters |
| Cooling | External heatsink/liquid-cooled assembly (system dependent) |
| Installation | Power stack assembly |
| Replacement Category | ABB Original Spare Part |
| Typical Industries | Mining, Metals, Marine, Oil & Gas, Power Generation |
The module is designed for high-current switching in industrial power converters and forms part of the inverter power stage in compatible ABB drive systems.
Product Introduction

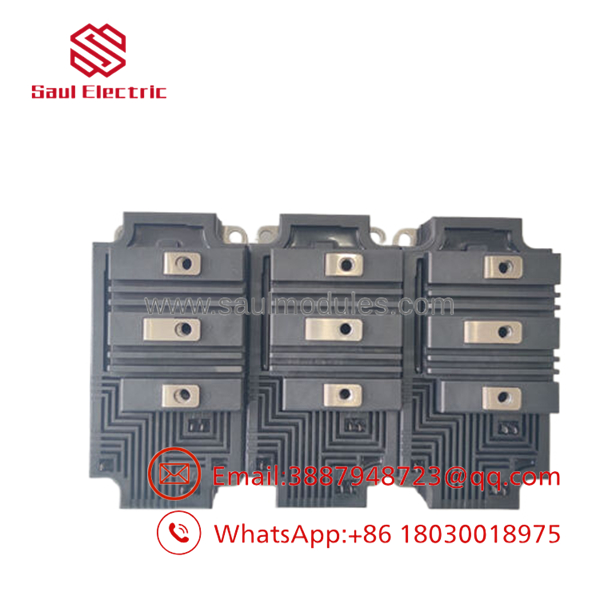

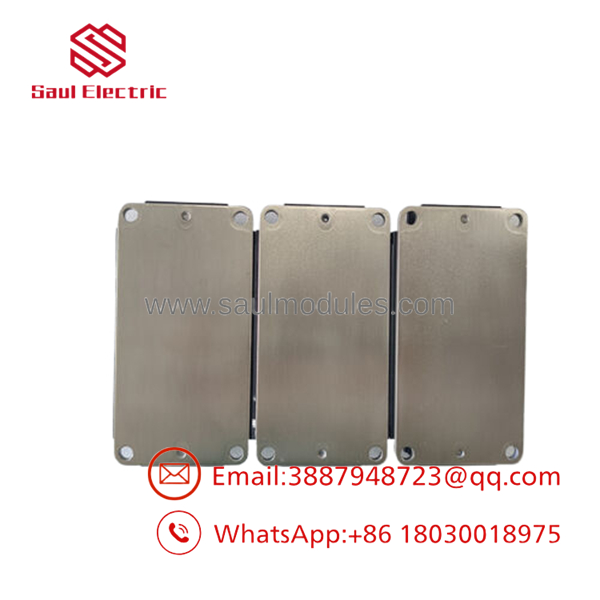

The ABB 3BHB020684R0001 (5SNG015045P0301) is a high-power IGBT module engineered for ABB medium-voltage variable speed drives and industrial power conversion systems. It serves as one of the primary switching elements in the inverter section, enabling efficient conversion of DC bus energy into controlled AC output for large electric motors.
Because this module operates within the main power circuit, replacement requires careful verification of the associated gate driver boards, cooling system, busbar connections, and hardware revision. Matching only the semiconductor part number is not sufficient for reliable operation.
- 3BHB020684R0001 5SNG015045P0301
- 3BHB020684R0001 5SNG015045P0301
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Drive trips with IGBT fault | Internal IGBT failure | ✅ High | Review inverter fault log and phase diagnostics | Confirm module failure before replacement |
| DC bus fuse opens immediately | Shorted IGBT | ✅ High | Measure collector-emitter resistance with power isolated | Replace module if short circuit is confirmed |
| One motor phase missing | Failed switching device | ✅ High | Compare output phase voltages during startup | Inspect corresponding phase module |
| Overtemperature alarm | Cooling system failure | ⚠️ Medium | Verify heatsink temperature, coolant flow, and thermal interface | Correct cooling issues before replacing module |
| Gate driver alarm | Gate driver board fault | ⚠️ Medium | Measure gate drive signals with an isolated oscilloscope | Inspect driver circuitry first |
| Repeated overcurrent trips | Motor or cable fault | ❌ Low | Perform insulation and phase-to-phase resistance tests | Rule out external faults before replacing the IGBT |
| Replacement module fails immediately | Incorrect mounting or torque | ✅ High | Inspect busbar alignment, thermal compound, and fastening torque | Follow ABB installation procedures exactly |
Technical Note: High-power IGBT modules rarely fail without an underlying cause. Cooling loss, DC bus overvoltage, gate driver malfunction, motor cable insulation failure, or repeated overload conditions are far more likely to damage the module than normal operation. Investigate the root cause before installing a replacement.
Frequently Asked Questions (FAQ)
Q1. What is the ABB 3BHB020684R0001?
It is ABB’s 5SNG015045P0301 high-power IGBT module, used in medium-voltage drive and industrial power conversion equipment as the main switching semiconductor.
Q2. Is this a control board?
No. This is a power semiconductor module, not an electronic control PCB. It operates in the main power stage of the drive and handles high voltage and high current.
Q3. Which systems typically use this module?
The module is found in selected ABB medium-voltage drives, high-power converters, and industrial inverter systems. Compatibility depends on the specific drive model and power rating, so verify the complete equipment part list before ordering.
Q4. Can I replace only the IGBT module?
Yes, but only after confirming:
- Exact ABB part number (3BHB020684R0001)
- Semiconductor type (5SNG015045P0301)
- Hardware revision
- Gate driver compatibility
- Cooling assembly condition
- Busbar configuration
Replacing only the module without correcting the original fault can result in immediate damage to the new unit.
Q5. Can this module be hot-swapped?
No. Always isolate the incoming power, lock out the equipment, and verify that the DC bus capacitors are fully discharged before servicing. High-voltage drives retain hazardous stored energy even after power has been removed.
Q6. What product condition is typically available?
Depending on inventory, this module is commonly supplied as:
- New Original
- New Surplus
- Professionally Tested Refurbished
For critical applications, request insulation test results, visual inspection records, hardware revision details, and functional test documentation before purchase.
