Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 3BHB030310R0001 |
| Associated Semiconductor | 5SHY4045L0006 |
| Brand | ABB |
| Product Type | IGCT Power Module |
| Rated Voltage (VDRM) | 4500 V (IGCT) / 3300 V DC (module variant) |
| Rated Current (ITAV) | 4000 A / 450 A continuous (dependent on configuration) |
| Control Voltage | 24 V DC ±20% |
| Switching Speed | Microsecond-class turn-off |
| Cooling | Water-cooled or forced air (installation-dependent) |
| Operating Temperature | -25°C to +70°C (ambient); Junction up to 125°C |
| Protection Rating | IP20 / IP00 (board-level) |
| Mounting | Press-pack package with double-sided cooling |
| Country of Origin | Switzerland |
| Weight | 0.3 kg to 3.7 kg (dependent on packaging variant) |
Product Introduction & Supply Chain Strategy

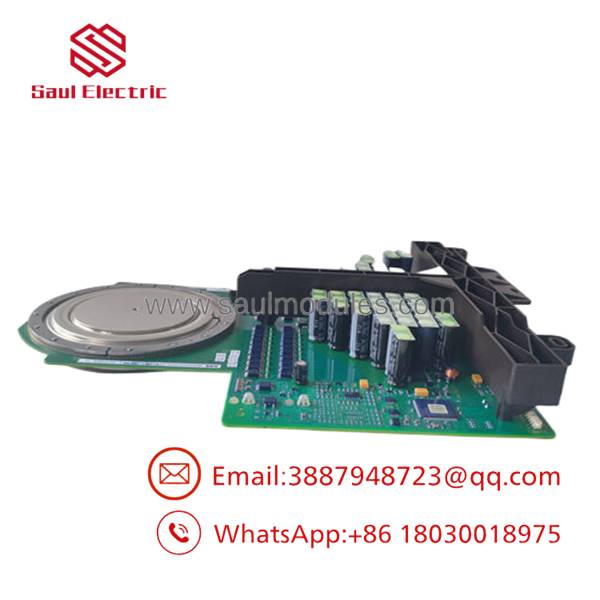

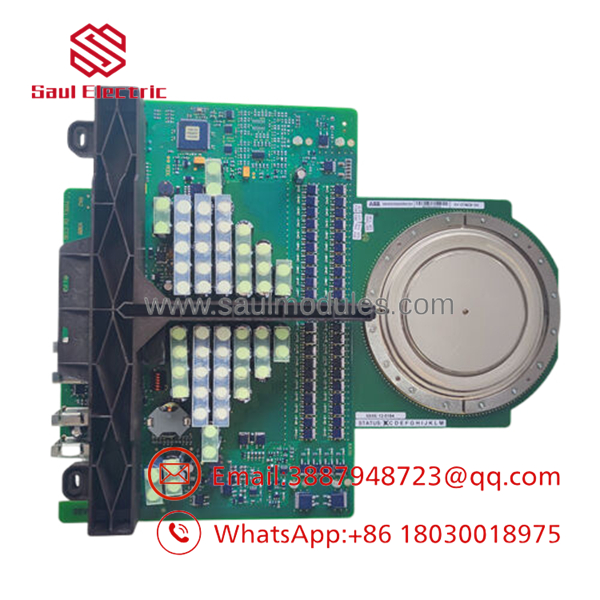

The ABB 3BHB030310R0001 is an IGCT high-power semiconductor module, typically paired with the 5SHY4045L0006 power thyristor. This component provides high-voltage switching for ABB medium-voltage drives — primarily the ACS5000 and ACS6000 series — as well as for power conversion applications such as grid-tied inverters and motor control centers. The module combines the high voltage capability of a thyristor with fast, controlled turn-off, enabling efficient multi-megawatt power conversion.
Procuring this module as New Surplus is a TCO-smart decision for any facility with ABB MV drives. Refurbished IGCT modules carry significant hidden risk: degraded gate oxide integrity, compromised thermal interfaces, latent stress from prior overvoltage events, and aging of internal junctions that no cosmetic inspection reveals. A failed IGCT in an MV drive stack causes an immediate motor trip. On a critical compressor, pump, or conveyor, the production loss from one unplanned outage can exceed the module’s value by a factor of 10 to 50. This unit offers OEM-origin traceability, zero operational hours, and a full warranty — eliminating the uncertainty of used or repaired components.
- 3BHB030310R0001
- 3BHB030310R0001
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Lock out and tag out the drive. Disconnect medium voltage input. Verify DC bus capacitors are fully discharged per ABB safety procedure.
- Wear appropriate PPE for MV work. Gather ESD wrist strap and a camera for fiber optic cable routing documentation.
- Critical: Identify and mark each fiber optic cable (Tx/Rx) before disconnection. Polarity is essential for proper gate firing.
Stage 2: Removal
- Gently disconnect fiber optic cables from the gate drive board. Inspect cable ends for debris.
- Remove the module from its clamping stack assembly — follow the specific mechanical procedure for the drive cabinet.
- Place the removed unit on an ESD-safe surface.
Stage 3: Installation
- Insert the new IGCT module into the clamping assembly with correct orientation. Apply specified clamp pressure per ABB procedure.
- Reconnect fiber optic cables to the exact ports from which they were removed.
- Reconnect gate lead harnesses and any other stack interconnects.
Stage 4: Power-On & Testing
- Verify 24 V DC supply voltage and polarity
- Re-energize control power. Observe LED status on the gate drive board — normal operation is indicated by a steady ready state.
- Restore drive main power and perform pre-charge. Conduct a low-speed/no-load test to confirm proper gate firing and communication.
Firmware/Software Versions & Upgrade Notes
The IGCT module is a hardware semiconductor with no user-updatable firmware. Its functionality is defined by the hardware revision and the drive controller’s firmware.
Version compatibility note: This module is compatible with ABB ACS5000 and ACS6000 series drives. It is also used in drive cabinets requiring the 5SHY4045L0006 power semiconductor pairing. Verify the cabinet type and stack ID to confirm that 3BHB030310R0001 is the exact match for your drive position before installation.
Critical warning: Only qualified ABB drive service personnel should access the medium-voltage cabinet. This module resides in the high-power section and presents lethal voltages and stored energy even when disconnected from mains.
Frequently Asked Questions (FAQ)
Q: Why is this New Surplus cheaper than ABB list price but more expensive than refurbished units?
A: The price reflects sourcing verified, OEM-origin new units from global inventory. You avoid the OEM’s full retail margin and the hidden failure risk of refurbished stock — degraded gate junctions and thermal interfaces. The cost of a single MV drive failure on a critical compressor or pump dwarfs the price difference.
Q: Is this module still active or is it EOL?
A: This module remains in active support for ABB’s MV drive installed base. However, ABB’s focus is shifting to newer platforms. Securing a new surplus unit now protects against future lead time increases or scarcity.
Q: Can I hot-swap this module while the drive is running?
A: No. This is not a hot-swappable module. Always de-energize and discharge the DC link before any service work.
Q: What happens if the IGCT module fails during operation?
A: The drive stack cannot switch. The drive faults immediately and stops the motor. This is a critical failure requiring replacement to restore operation.
Q: What is the warranty period and coverage?
A: The module carries a standard 1-year warranty against manufacturing defects. Coverage applies to the module hardware — not to field wiring, installation damage, or external surges. All units are QC-tested before shipment to verify gate drive communication and switching functionality.
