ABB 3BHB045647R0003 GVC736CE103 IGCT Control Unit

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

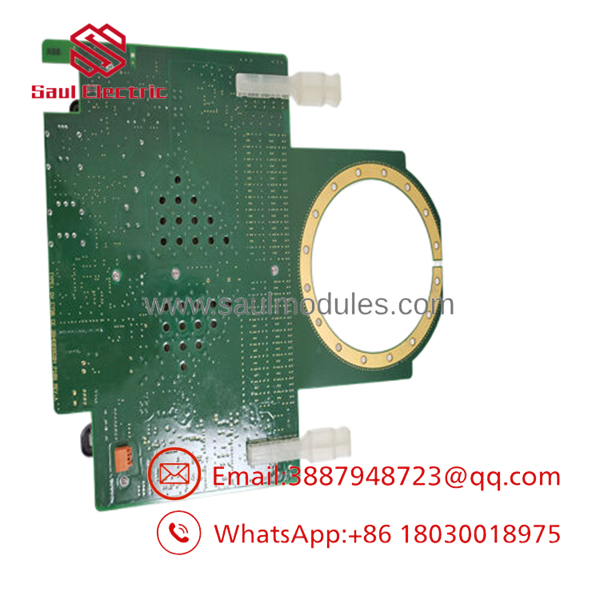

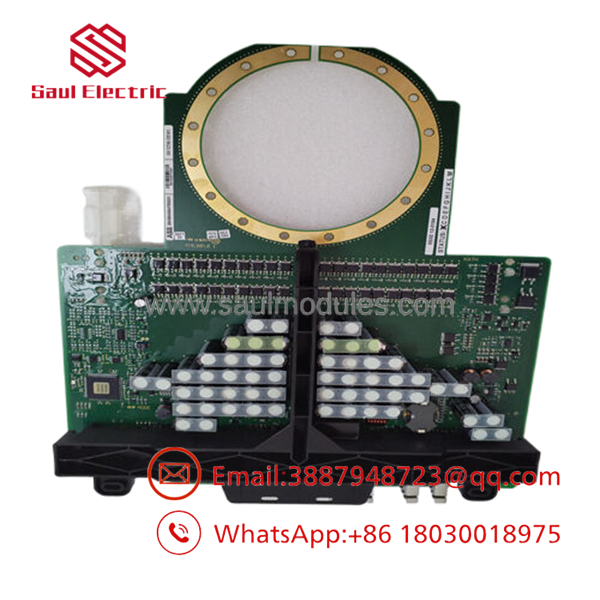

The ABB 3BHB045647R0003 is a high-performance IGCT control unit, typically designated as GVC736CE103 or GVC736CE101. This module functions as the intelligent interface between the main drive or system controller and the high-power switching semiconductors. Depending on the system integration, it serves as a gate control unit for ACS6000 medium-voltage drives, a thyristor firing control module for UNITROL excitation systems, or a Valve Base Electronics (VBE) board for HVDC and FACTS installations . The module processes fiber-optic firing commands, delivers precise gate drive signals, and monitors critical parameters such as overvoltage (BOD) events and fault conditions . Its self-powered optical isolation architecture eliminates traditional electrical failure points and makes it a cornerstone of grid stability in major energy transmission projects .

Procuring this unit as New Surplus is a TCO-critical decision. This module sits at the heart of the most expensive and critical systems in a facility — MV drives, turbine-generator exciters, and HVDC stations. Refurbished or used control units carry extreme risk: degraded opto-isolators, compromised gate drive timing accuracy, latent thermal damage from prior overvoltage events, and undocumented repairs that no functional test can guarantee. A failure in this control module trips the entire drive stack or exciter. For a critical compressor, generator, or HVDC transmission link, the cost of unplanned downtime far exceeds the module’s value. This unit offers OEM-origin traceability, zero operational hours, and full warranty — eliminating the uncertainty of used or repaired components.

3BHB045647R0003

3BHB045647R0003

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

• Lock out and tag out the drive, exciter, or HVDC valve. Disconnect main power and verify DC bus capacitors are fully discharged per ABB safety procedure. Wear appropriate PPE for high-voltage work.
• Gather ESD wrist strap and camera for documentation.
• Critical: Identify and mark every fiber optic cable (Tx/Rx polarity and port) before disconnection. The system communication depends on correct polarity.

Stage 2: Removal

• Gently disconnect fiber optic cables from the control module. Inspect cable ends for debris or damage.
• Remove module mounting screws or disengage the retaining mechanism.
• Carefully extract the module from its slot. Do not rock the board side-to-side.

Stage 3: Installation

• Align the new module with guide rails and slot connector. Press firmly until fully seated.
• Secure with original screws or retaining clips.
• Reconnect fiber optic cables to the exact ports from which they were removed.

Stage 4: Power-On & Testing

• Re-energize 24 V DC control power. Observe LED status — normal operation is indicated by a steady ready state -1-4.
• Perform system pre-charge and verify communication with the main controller via the HMI or diagnostic interface.
• Conduct a no-load test to confirm proper gate firing and control handshake.

Firmware/Software Versions & Upgrade Notes

The IGCT control unit has onboard firmware (or dedicated gate-drive logic) that governs the firing sequence, protection thresholds, and system communication.

Version compatibility note: This module is used across multiple ABB platforms — ACS6000 drives, UNITROL excitation systems, and HVDC valve control . Verify the cabinet type and system revision to confirm that 3BHB045647R0003 is the exact match for your specific application. Different functional variants (GVC736CE101 vs. GVC736CE103) may have different firmware or application profiles.

Critical warning: Only qualified ABB service personnel should access high-power cabinets. This module resides in sections with lethal voltages and stored energy even when disconnected from mains.

Frequently Asked Questions (FAQ)

Q: Why is this New Surplus cheaper than ABB list price but more expensive than refurbished units?
A: The price reflects sourcing verified, OEM-origin new units from global inventory. You avoid the OEM’s full retail margin and the hidden failure risk of refurbished stock — degraded opto-isolators, compromised gate drive timing, and latent thermal damage. The cost of a single MV drive or generator trip on a critical system dwarfs the price difference.

Q: Is this module still active or is it EOL?
A: This module remains in active support for ABB’s extensive installed base across ACS6000, UNITROL, and HVDC systems . Securing a new surplus unit now protects against future lead time increases as ABB’s focus shifts to newer platforms.

Q: What is the difference between GVC736CE101 and GVC736CE103?
A: Both designations are associated with 3BHB045647R0003 . The specific variant depends on the target system — GVC736CE101 appears in HVDC valve control applications, while GVC736CE103 is cited for IGCT control in MV drives. Verify the exact designation required for your cabinet.

Q: Can I hot-swap this module while the system is running?
A: No. This is not a hot-swappable module. Always de-energize and discharge the system before any service work.

Q: Does replacement require reloading system parameters?
A: Drive or excitation parameters reside in the main controller memory. The module has limited user-configurable storage — but verify control settings and communication addresses before decommissioning the old unit.

Q: What is the warranty period and coverage?
A: The module carries a standard 1-year warranty against manufacturing defects. Coverage applies to the module hardware — not to field wiring, installation damage, or external surges. All units are QC-tested before shipment to verify fiber-optic communication and gate drive functionality.
