Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BHE013299R0002 |
| Type Designation | LTC743CE02 |
| Product Type | Power Driver Board |
| Hardware Revision | R0002 |
| Primary Function | Gate driver and power stage control |
| Application | ABB UNITROL Excitation / MV Drives |
| Installation | Internal Control Cabinet |
| Technology | Driver Interface PCB |
| Associated Boards | GD C742 AE, SDCS-COM-81 (system dependent) |
| Spare Part Category | ABB Original Service Spare |
| Typical Industries | Power Generation, Metals, Mining, Oil & Gas |
The LT C743 CE02 is typically integrated with ABB excitation controllers or medium-voltage drive systems where it controls the firing circuitry of the main power devices.
Product Introduction

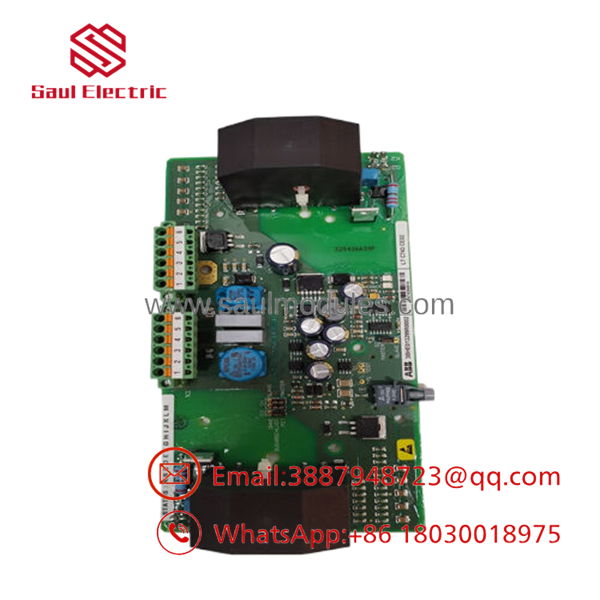

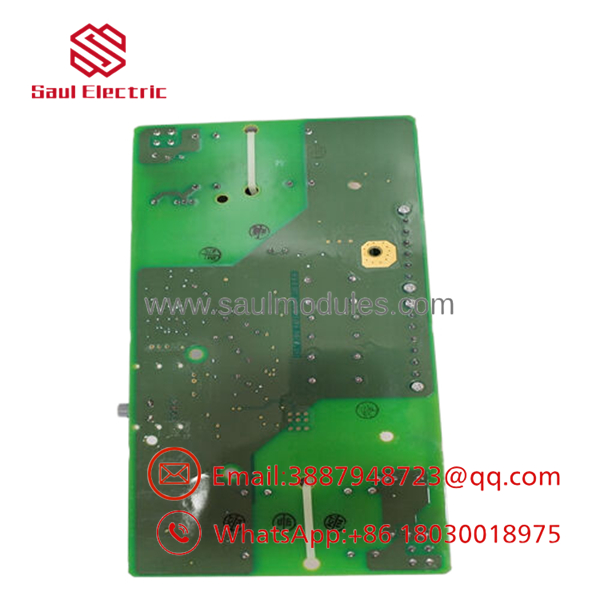

The ABB 3BHE013299R0002 LTC743CE02 is an industrial power driver board designed for ABB excitation systems and medium-voltage drive platforms. It generates and manages the drive signals required by the power semiconductor stage while coordinating with the system controller for safe and accurate operation.
Because this board directly influences the operation of the inverter or excitation power stage, replacement should include verification of the associated gate driver circuits, controller firmware, power supply voltages, and hardware revision compatibility.
- 3BHE013299R0002
- 3BHE013299R0002
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Excitation system fails to start | Driver board failure | ✅ High | Review controller diagnostics and board status LEDs | Verify power supplies before replacing the board |
| No gate pulses | Driver circuit fault | ✅ High | Measure gate signals using an isolated oscilloscope | Inspect connectors and driver outputs |
| Repeated power module trips | Driver timing abnormal | ✅ High | Compare firing sequence with service documentation | Check both driver board and power module |
| Communication with power stage lost | Connector or interface issue | ⚠️ Medium | Inspect ribbon cables and board connectors | Reseat connectors before replacement |
| Random drive trips | Control power instability | ⚠️ Medium | Measure all regulated supply voltages | Repair the power supply before replacing the PCB |
| Board not recognized after installation | Hardware revision mismatch | ✅ High | Verify LT C743 CE02 revision against the original board | Install the correct hardware revision |
| Immediate failure after replacement | External short circuit | ❌ Low | Check IGBT gate circuits and power stage insulation | Eliminate downstream faults before energizing |
Technical Note: Driver boards are frequently replaced when the root cause is actually a failed gate driver power supply, damaged IGBT, fiber-optic interface, or controller configuration issue. Complete system diagnostics before replacing the LT C743 CE02.
Frequently Asked Questions (FAQ)
Q1. What is ABB 3BHE013299R0002?
It is the LT C743 CE02 Power Driver Board, used in ABB excitation systems and medium-voltage drive applications to control the gate drive circuitry for the main power electronics.
Q2. Is this a PLC module?
No. It is a power electronics control board, not a PLC CPU or standard I/O module. Its primary role is to generate and supervise drive signals for the power stage.
Q3. Which ABB systems use this board?
The LT CE02 is associated with ABB UNITROL excitation systems and certain ABB medium-voltage drive platforms. Exact compatibility depends on the equipment model, hardware revision, and system configuration.
Q4. Can I replace the board without changing software?
In most cases, yes, provided the replacement board has the same hardware revision and the existing controller firmware supports it. Always back up system parameters before replacement.
Q5. Can the board be replaced while the equipment is energized?
No. Isolate all AC and DC power sources, wait for stored energy to discharge, and follow ABB lockout/tagout procedures before servicing. Driver boards are connected to high-energy power circuits.
Q6. What should I verify before ordering?
Confirm the following:
- Exact part number (3BHE013299R0002)
- Type designation ()
- Hardware revision (R0002)
- Compatible excitation or drive model
- Associated gate driver and controller boards
- Firmware revision of the existing system
Documenting fault codes, hardware revisions, and connector locations before removing the original board can significantly reduce commissioning time and help prevent repeat failures.
