ABB 3BHE046836R0101 GFD563A101 AC 800PEC Control Unit

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

ABB 3BHE046836R0101 GFD563A101 is a control unit for ABB’s AC 800PEC-based excitation and converter applications. ABB’s product catalog identifies it as an LCI converter interface module, and market listings place it in power-electronics and control-system environments.

From a spare-parts strategy angle, this is a high-criticality, low-frequency module that should be managed as a buffer-stock item. New Surplus makes sense because it protects uptime, reduces TCO versus emergency sourcing, and avoids the hidden failure risk of uncertain-condition inventory.

Installation & Configuration Guide

Stage 1: Pre-Installation

1. Apply lock-out/tag-out and verify all energy sources are isolated.
2. Use an ESD strap and take photos of connectors, cabling, and any switch settings.
3. Record the current firmware, application code, and parameter set.
4. Confirm the exact part number and revision before removing the old module.

Stage 2: Removal

1. Remove power and confirm discharge.
2. Release retaining hardware carefully.
3. Extract the module straight out to avoid pin damage.
4. Inspect the slot and connectors for wear, contamination, or corrosion.

Stage 3: Installation

1. Verify the replacement matches 3BHE046836R0101 / GFD563A101 exactly.
2. Duplicate all settings and wiring from the removed module.
3. Seat the board fully and secure all retainers.
4. Check cooling, grounding, and cabinet fit before energizing.

Stage 4: Power-On & Testing

1. Check supply rails for shorts before power-up.
2. Energize the system and confirm status LEDs and communication health.
3. Verify excitation or interface behavior against the original operating state.
4. Run a controlled functional test before returning to production.

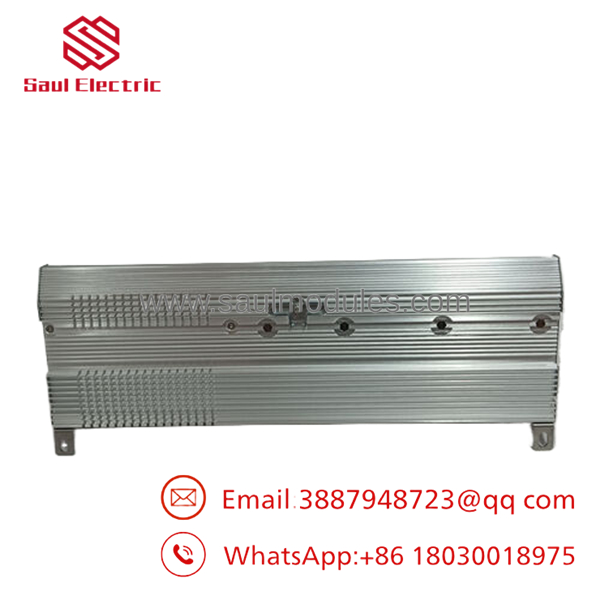

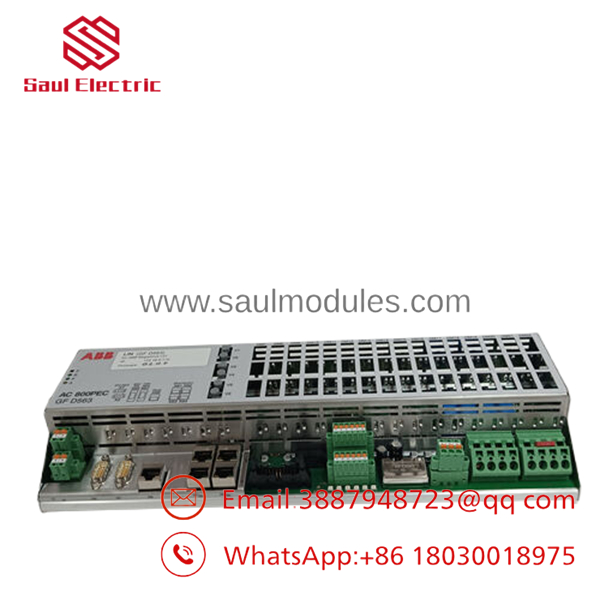

3BHE046836R0101 GFD563A101

3BHE046836R0101 GFD563A101

Firmware/Software Versions & Upgrade Notes

The source material identifies this module as part of ABB AC 800PEC and notes programming through Control Builder M and related toolchains.
Keep the existing firmware and application baseline unchanged during a hardware swap unless ABB documentation explicitly calls for a version change.
Firmware upgrades or downgrades during replacement can create communication faults, startup refusal, or mismatched control behavior.

Frequently Asked Questions (FAQ)

Is this really new? Market listings describe it as new original or original module inventory, which is the correct condition target for a critical spare.

Why is it cheaper than OEM new but higher than a lower-cost offer? New Surplus usually sits between OEM list pricing and low-trust inventory because it preserves genuine OEM condition while avoiding full factory pricing.

Is this part obsolete or EOL? It appears mainly in spare-part channels and ABB product references rather than mainstream catalog sales, so treat it as lifecycle-sensitive.

Can I hot-swap it? No. This is a control/electronics module tied to excitation or converter functions, so isolate power before replacement.

Will the programming be retained automatically? Not by the module alone. Back up application code, parameters, and any site-specific settings before removal.

What warranty should I expect? Public listings commonly show 1-year or 365-day coverage, but the exact term depends on supplier.

How should I stock it? Keep 1 to 2 units on-site for a critical installed base and use last-time-buy planning if the platform remains in service.
