Description
Key Technical Specifications

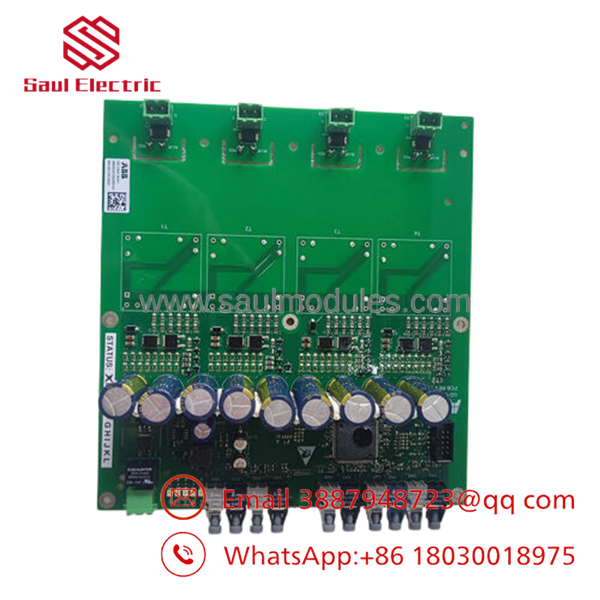

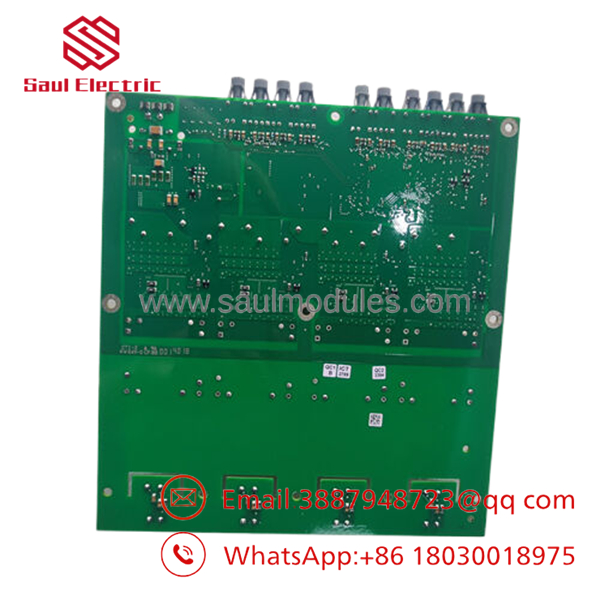

| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Part Number | 3BHE051592R0101 |
| ABB Type Designation | GDC801B101 |
| Product Type | Crowbar Control Circuit Board |
| Primary Function | Crowbar protection and control interface |
| Application | ABB Medium Voltage Drive Systems |
| Mounting | OEM Internal PCB Assembly |
| Approximate Weight | 0.2 kg |
| Operating Environment | Industrial Control Cabinet |
| Installation | Direct OEM Replacement |
| Product Status | Legacy Spare Part / New Surplus Availability |
| Recommended Service | Qualified industrial drive technician installation only |
Product Introduction
The ABB GDC801B101 (3BHE051592R0101) is an OEM circuit board used in ABB medium-voltage drive systems. It forms part of the drive’s crowbar protection circuitry, helping protect power semiconductor components during abnormal operating conditions and transient events.
Because this board works directly with the drive’s protection system, correct replacement is essential. Many maintenance teams purchase this model as a strategic spare since it is a legacy ABB component with limited market availability.
- 3BHE051592R0101
- 3BHE051592R0101
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Crowbar protection fault | Crowbar board failure | ✅ High | Review drive diagnostics and protection history | Verify board before replacing power semiconductors |
| Drive trips immediately after energizing | Protection circuit malfunction | ✅ High | Measure control supply voltages and inspect board LEDs | Check board and connector integrity |
| Unexpected protection trips | Fault detection circuit instability | ✅ High | Monitor protection signals with service software | Inspect board and surrounding circuitry |
| Communication alarm | Control communication issue | ❌ Low | Check fiber optic or fieldbus diagnostics | Repair communication hardware first |
| DC bus fault | Capacitor or power section failure | ⚠️ Medium | Measure DC bus voltage and insulation | Eliminate power hardware faults before replacing board |
| No drive output | External interlock or controller fault | ❌ Low | Verify permissives and controller status | Confirm external conditions before replacing PCB |
Service Note
Crowbar boards are usually replaced only after confirming that the surrounding power electronics are healthy.
Before installing a replacement:
- Inspect all edge connectors for oxidation.
- Verify control power voltages.
- Check gate driver and semiconductor status.
- Compare the recorded fault history with the actual operating conditions.
- Inspect the PCB for heat damage or damaged protection components.
If diagnosis remains uncertain, provide fault logs, oscilloscope captures, and clear board photos before ordering a replacement.
Frequently Asked Questions (FAQ)
Q1. Is GDC801B101 (3BHE051592R0101) an original ABB part?
Yes. GDC801B101 / 3BHE051592R0101 is an original ABB circuit board designed for specific ABB medium-voltage drive systems.
Q2. What does the crowbar board do?
The crowbar board is part of the drive’s protection system. It helps protect expensive power semiconductors by responding to abnormal voltage or fault conditions before permanent damage occurs.
Q3. Can I replace this board without powering down the drive?
No.
Never replace this board while the drive is energized. Medium-voltage equipment can retain hazardous stored energy after shutdown. Follow lockout/tagout procedures and verify the DC bus has discharged completely before servicing.
Q4. Does this board require programming after installation?
Typically no.
The board performs hardware protection functions. After installation, clear any stored faults, verify protection diagnostics, and perform the manufacturer’s recommended commissioning procedure before returning the drive to service.
Q5. Why is New Surplus inventory less expensive than factory stock?
New Surplus boards are genuine OEM components that have never been installed but come from excess inventory rather than current production. They provide the same hardware while often reducing procurement cost and lead time.
Q6. What should I verify before ordering?
Confirm:
- Part Number: 3BHE051592R0101
- ABB Type: GDC801B101
- Existing board revision
- Connector configuration
- Compatible drive model
- Any hardware revision requirements listed in your ABB service documentation
A photo of the existing board label is one of the easiest ways to avoid ordering the wrong replacement.
Q7. What warranty is commonly offered?
Most industrial automation suppliers provide a 12-month warranty on New Original or professionally inspected New Surplus boards. Request functional test records and shipment photos whenever available.
