Product Introduction & Engineering Value
When a Quality Control System (QCS) processor card fails, paper or web converting lines go pitch black on basis weight and moisture measurement. The ABB 3BUS213621-101 serves as the primary Single Board Computer (SBC) field replacement kit engineered to restore processing power to localized QCS scanner nodes and frame electronics. It handles heavy sensor telemetry compute loads without dropping communication packets to the operator station.
Dropping a factory-verified 3BUS213621-101 SBC kit into your scanner frame ensures exact hardware level synchronization across internal backplane buses. Its field-replacement architecture minimizes system downtime by allowing a fast physical swap without requiring extensive backplane rewiring or manual pin modifications.
Technical Specifications
- ABB Part Identifier: 3BUS213621-101
- Module Description: SBC Assembly – Field Replacement Kit
- Target System: ABB HKQCS / Network 90 / Industrial QCS Assemblies
- Nominal Input Voltage: 24 V DC
- Onboard Communication Interfaces: RS-232, RS-485, and Dedicated Local Bus
- Form Factor: Modular Rack-Mount PCB Assembly
- Mounting Style: Frame-level card cage slot installation
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Approximate Net Weight: 0.8 kg (1.76 lbs)

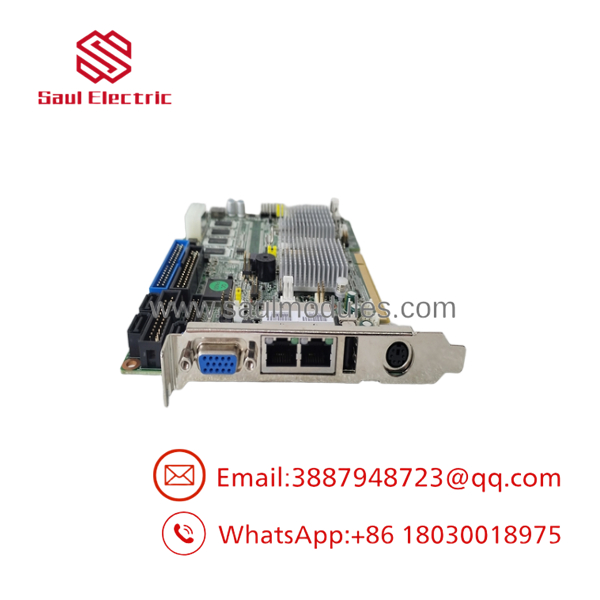

- 3BUS213621-101

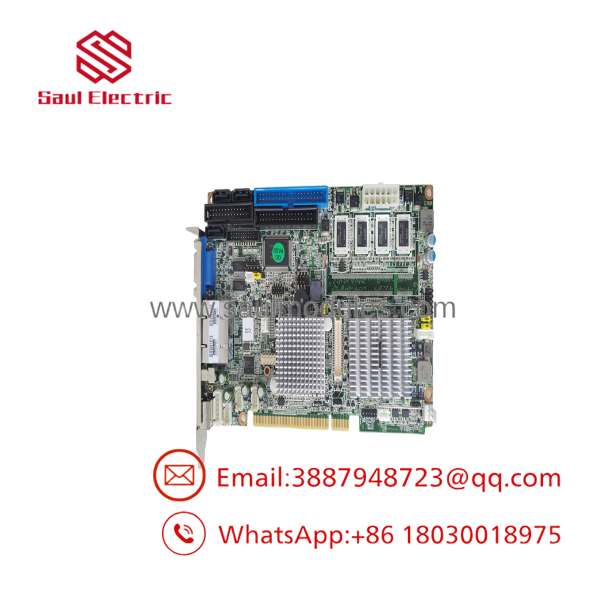

- 3BUS213621-101
Field Application & The “Trench” Experience
The Field Story
A paper mill’s continuous newsprint machine suffered a communication loss to its reel-end scanning O-frame during a high-speed production run. Diagnosis revealed that the onboard scanner processing board had suffered a localized power regulator failure, causing intermittent reboot loops. Rather than retrofitting the entire frame electronics rack, technicians pulled the failed module and installed a pre-tested 3BUS213621-101 SBC field replacement kit. Once seated in the card cage and powered, the board established instant communication via RS-485 back to the main control room, returning moisture profile control to target limits in under 30 minutes.
Critical Niche Applications
- Paper Machine Quality Control (QCS): Real-time data processing for basis weight, moisture, and caliper scanners.
- Plastics & Film Extrusion Lines: Thickness profile measurement and local actuator feedback loops.
- Industrial Web Processing: High-speed sensor telemetry aggregation on continuous web inspection frames.
Transparency SOP: QA & Testing
- Visual & Structural Audit: Thorough inspection of all surface-mount components, bus edge connectors, and solder traces under magnification to rule out micro-cracks or heat degradation.
- Static Bus & Power Rail Check: Ohmic and diode testing on the 24V DC power delivery circuit to verify no short circuits exist before bench energization.
- Firmware & Boot Testing: Powering the SBC in a dedicated test rack to confirm successful POST routines, bootloader initialization, and onboard RAM integrity.
- Serial & Network Loopback Verification: Running active data transfer tests across the RS-232 and RS-485 transceiver channels to guarantee zero packet corruption under load.
The Veteran’s Tech Trap Guide
- ⚠️ DANGER: Verify Board Address & Jumper Configurations! Before sliding the replacement 3BUS213621-101 into the rack, duplicate the hardware DIP switch settings and jumper links from the original board. If node addressing is incorrect, the main QCS system controller will fail to poll the scanner frame.
- PRO TIP: Clean Backplane Card Connectors. Scanners operating in humid or corrosive mill environments accumulate airborne particulates. Always spray the card cage backplane connector with an residue-free electrical contact cleaner before inserting the new SBC to ensure full contact pressure.
- PRO TIP: Grounding Is Mandatory. Static discharge from sliding webs can destroy sensitive processors. Ensure the scanner frame grounding strap is fully bonded to the chassis before applying power to the new SBC assembly.
Dynamic FAQ
Q: What is the main difference between 3BUS213621-001 and 3BUS213621-101?
A: The 3BUS213621-101 is designated specifically as a field replacement kit, often containing updated board revisions, hardware adapters, or updated mounting accessories to simplify field swap-outs compared to standalone base assemblies.
Q: Does replacing the 3BUS213621-101 require reprogramming system software?
A: Generally, no. The SBC acts as a hardware computing node. Once set to the correct node address, it receives its configuration parameters and operational scripts directly from the master QCS host upon system boot.
Q: Can this board operate on 110V AC power directly?
A: No. The board operates off a regulated 24V DC power rail supplied by the scanner frame power supply system.
Q: What condition are these field replacement kits supplied in?
A: We provide both certified New Surplus and fully reconditioned/tested replacement kits, all backed by a 12-month operational warranty.
