ABB 3HNA006146-001 SIB-01 Safety Interface Board

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

ABB 3HNA006146-001 is a SIB-01 safety interface board used in ABB Robotics systems. ABB’s product page identifies it as a safety interface board, and market listings tie it to IRC5P robot applications.

For procurement, this is a classic critical spare. Keep 1 to 2 units on-site as buffer stock, because a failed safety board can stop the robot cell immediately and create a high-cost stock-out event. New Surplus is the right TCO choice when you need genuine OEM condition without paying full new-list pricing.

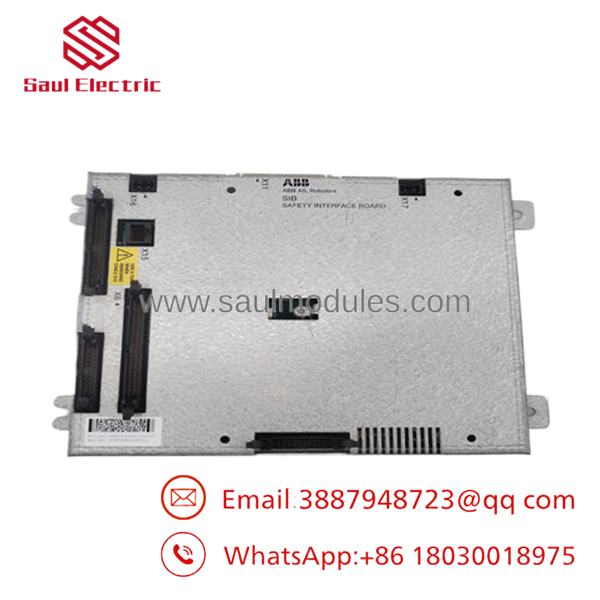

3HNA006146-001

Installation & Configuration Guide

Stage 1: Pre-Installation

1. Apply lock-out/tag-out and confirm the robot cell is safe.
2. Use an ESD strap, insulated tools, and a clean work surface.
3. Photograph the original wiring, connector positions, and any jumper settings.
4. Record the controller state and any active safety faults before removal.

Stage 2: Removal

1. Remove control power and verify discharge.
2. Release retaining fasteners carefully.
3. Pull the board straight out to avoid bending pins or stressing connectors.
4. Inspect the slot and surrounding wiring for damage or contamination.

Stage 3: Installation

1. Verify the replacement part number is exactly 3HNA006146-001.
2. Duplicate the original wiring and any switch settings exactly.
3. Seat the board fully and secure all fasteners.
4. Restore covers and verify the safety chain is intact before power-up.

Stage 4: Power-On & Testing

1. Power up only after checking for shorts and loose wiring.
2. Confirm the expected LED state and clear any safety alarms.
3. Validate emergency stop, gate interlock, and safety relay behavior.
4. Run a controlled functional test before returning the robot to production.

Firmware/Software Versions & Upgrade Notes

A public firmware version reference for 3HNA006146-001 was not clearly available in the reviewed sources, so preserve the existing robot controller configuration during replacement.
Do not change firmware during the swap unless ABB documentation for the robot cell explicitly requires it, because safety-interface mismatches can prevent startup or trigger persistent faults.
Treat configuration capture as mandatory, including I/O mapping and safety-chain logic.

Frequently Asked Questions (FAQ)

Is this really new? Yes. One market listing identifies it as new original with a 1-year warranty, which matches the right condition target for a safety-critical spare.

Why is it cheaper than OEM new but more than a low-cost alternative? New Surplus usually sits between OEM list pricing and lower-trust inventory because it preserves genuine OEM condition while avoiding full factory markup.

Is this part obsolete or EOL? It appears primarily in spare-part channels, not as a current active ABB catalog item, so treat it as lifecycle-sensitive and keep buffer stock.

Can I hot-swap it? No. Safety boards should be replaced with power isolated and the robot cell locked out.

Will the programming be retained automatically? Not by the board itself. Back up the controller configuration, safety chain setup, and wiring map before replacement.

What warranty should I expect? Public listings commonly show a 1-year warranty, though the exact term depends on supplier.

How should I stock it? Keep 1 to 2 units on-site for a critical robot cell and plan cross-site sharing or last-time-buy action if multiple lines use the same platform.
