ABB 560CMU04 RTU560 Central Communication Module

Description

Product Introduction

The ABB 560CMU04 is the central communication and processing module for the ABB RTU560 Remote Terminal Unit platform. It serves as the primary processor within the RTU, handling field data acquisition, protocol processing, event management, and communications between substations, field equipment, local HMIs, and SCADA control centers.

Unlike a simple communication card, the 560CMU04 combines CPU processing, multiple serial communication channels, and Ethernet networking into a single module. It is designed for utility automation where continuous operation and deterministic communications are essential. Before replacing the module, verify the hardware revision and protocol configuration because different RTU560 generations may require different firmware revisions.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s a familiar call from the utility industry.

A substation reports that every remote signal has disappeared from SCADA. Breakers continue operating locally, but dispatch no longer receives alarms, analog values, or event records.

The field I/O isn’t the problem.

The communication processor has stopped exchanging data with the control center.

That immediately puts the 560CMU04 at the top of the troubleshooting list.

Typical Applications

Electrical Substations — Remote terminal automation — Collects field data and transmits it to the SCADA master station.

Power Distribution Networks — Feeder automation — Coordinates communication between protection relays and dispatch centers.

Water & Wastewater Plants — Remote pumping stations — Provides telemetry and remote control over Ethernet and serial networks.

Oil & Gas Pipelines — Remote compressor stations — Handles protocol conversion and long-distance communications.

Renewable Energy — Wind and solar substations — Interfaces field devices with centralized monitoring systems.

Field Case Study

A regional utility experienced intermittent communication losses at a 132 kV substation. Protection relays remained operational, but the dispatch center repeatedly lost telemetry.

Engineers initially suspected the fiber network. After protocol diagnostics and loopback testing, they identified an unstable 560CMU04. A verified replacement restored Ethernet communication, re-established IEC 60870-5-104 connectivity, and returned the RTU to full operation without replacing any field I/O modules.

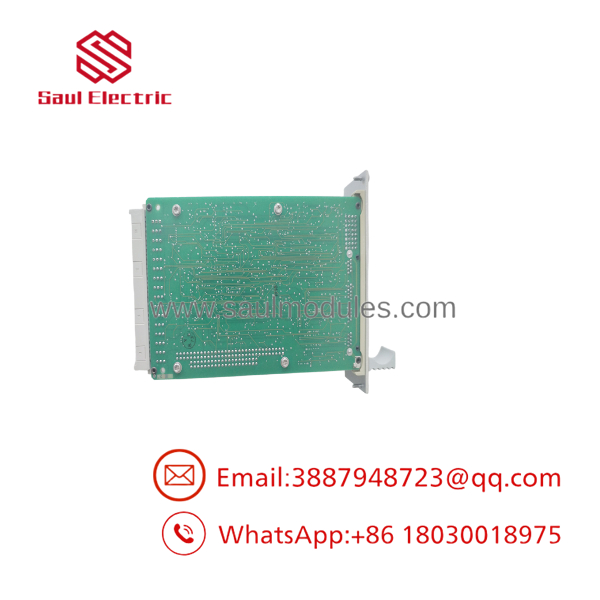

560CMU04

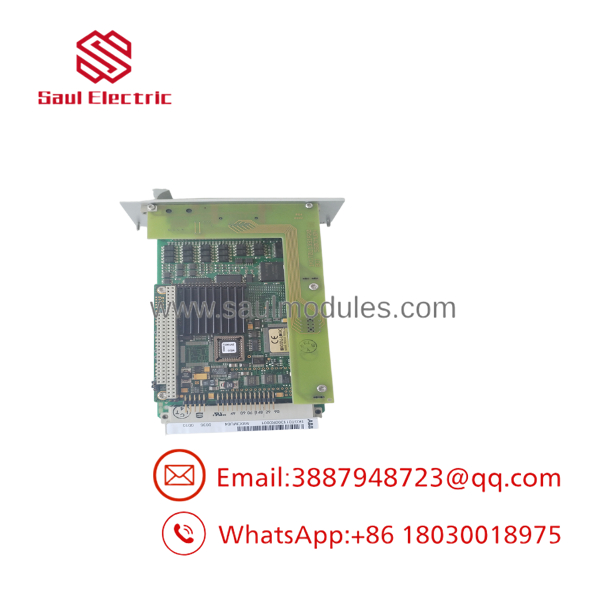

560CMU04

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB RTU560 racks whenever practical.

• Inbound Inspection
  • Verify ABB labels and hardware revision.
  • Inspect DIN connectors and front communication ports.
  • Check for corrosion, overheating, or repaired PCB traces.
• Live Rig Testing
  • Install the module in an RTU560 communication rack.
  • Verify successful system startup.
  • Test Ethernet initialization.
  • Confirm serial communication on available ports.
• Electrical Parameter Checks
  • Verify power consumption.
  • Test communication interfaces.
  • Check memory integrity.
  • Inspect system bus communication.
• Firmware Verification
  • Record firmware revision.
  • Verify boot diagnostics.
  • Confirm protocol functionality where applicable.
• Final QC & Anti-static Packaging
  • Complete functional inspection.
  • Anti-static packaging.
  • Shock-resistant export packaging.
  • Product traceability recorded.

The Veteran’s Tech Trap Guide

⚠️ Back up the RTU configuration before replacing the module.

Losing protocol databases and communication settings can extend commissioning from one hour to an entire day.

⚠️ Check the communication ports before blaming the CPU.

Loose RS-232 or RS-485 wiring, damaged connectors, or failed Ethernet switches often produce the same symptoms as a defective CMU.

❗ Verify protocol licensing and firmware compatibility.

In our field experience, mismatched firmware revisions can prevent communication with legacy SCADA masters even when the hardware powers up normally.

⚠️ Inspect the system bus connector carefully.

The 48-pin DIN connector carries communication between the CMU and the RTU backplane. Bent pins or oxidation can create intermittent failures that are difficult to reproduce.

Frequently Asked Questions (FAQ)

Q1. What is the ABB 560CMU04?

It is the central communication and processing module for the ABB RTU560 platform, responsible for executing RTU functions and managing communications with SCADA systems, HMIs, and field devices.

Q2. Which systems use the 560CMU04?

It is designed specifically for ABB Remote Terminal Unit systems used in power transmission, substations, utility automation, and industrial telemetry applications.

Q3. Does the module support Ethernet?

Yes.

The 560CMU04 includes two integrated 10/100Base-T Ethernet interfaces in addition to multiple serial communication ports.

Q4. Can the module be hot-swapped?

Generally, no.

Although some components support online maintenance, replacing the central processing module should be performed with the RTU safely shut down and according to ABB service procedures.

Q5. Which communication protocols are available?

Depending on firmware and configuration, the module supports protocols including IEC 60870-5-101, IEC 60870-5-104, DNP3, Modbus, and SPA-Bus. Always verify the installed firmware and licensed protocol options before replacement.

Q6. Why are surplus modules less expensive than buying directly from the OEM?

Many available units come from utility modernization projects, unused maintenance inventory, or professionally tested surplus stock. They remain a practical option for maintaining installed systems after original production has declined.

Q7. What should be verified before ordering?

Confirm the following:

• ABB Model: 560CMU04
• hardware revision
• Firmware version
• Communication protocol requirements
• Ethernet and serial interface configuration
• RTU rack compatibility
• Existing RTU configuration backup

Finally, compare the installed module’s hardware revision and firmware with the replacement unit before installation. In utility automation systems, a communication processor with the wrong revision can prevent protocol initialization even though the RTU powers up normally.
