ABB 57310001-PK DSCA 190V Communication Processor

Description

Product Introduction

The ABB 57310001-PK, designated DSCA 190V, is a communication processor module developed for the ABB Advant Master distributed control system. It provides the communication processing required between the controller, system bus, and associated automation equipment, making it an important component in many legacy ABB DCS installations.

Unlike standard I/O modules, the DSCA 190V is responsible for communication management rather than field signal acquisition. A failed processor can interrupt controller-to-network communications even though CPUs and I/O modules remain operational. Before replacement, verify both the complete part number and the hardware revision because several DSCA variants exist within the Advant Master family.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s a fault that can waste an entire shift.

The operator stations suddenly lose communication with the controller. Field instruments are healthy. Power supplies are stable. Every I/O card passes diagnostics, yet the DCS refuses to exchange process data.

At first glance, it looks like a network failure.

More often than people expect, the communication processor is the real culprit.

Typical Applications

Power Generation — Boiler and turbine DCS — Maintains communication between process controllers and supervisory systems.

Oil & Gas — Process control cabinets — Exchanges operational data between Advant Master controllers and operator workstations.

Chemical Processing — Distributed process automation — Supports controller communication across the plant network.

Pulp & Paper — Continuous production lines — Maintains deterministic communication for coordinated process control.

Water Treatment — Centralized DCS systems — Transfers process information between controllers and SCADA interfaces.

Field Case Study

A refinery experienced intermittent communication failures affecting one Advant Master controller. Engineers initially replaced network switches and communication cables with no improvement.

After installing a tested 57310001-PK DSCA 190V communication processor and restoring the controller configuration, communication stabilized immediately. The original module showed intermittent internal communication faults that appeared only after several hours of operation under normal cabinet temperatures.

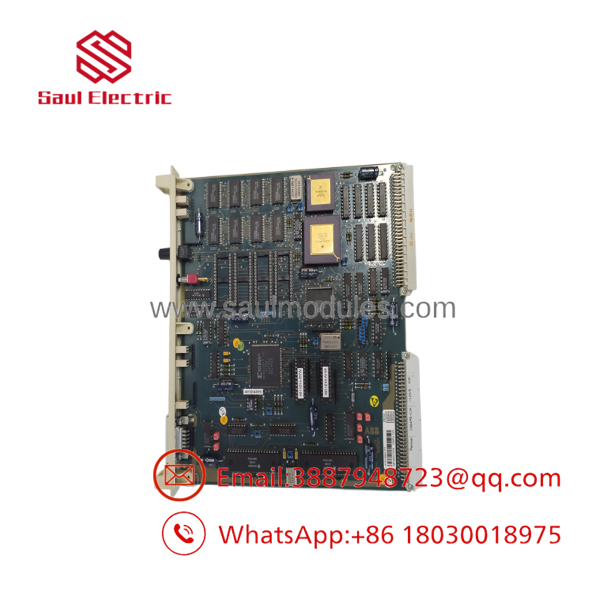

57310001-PK

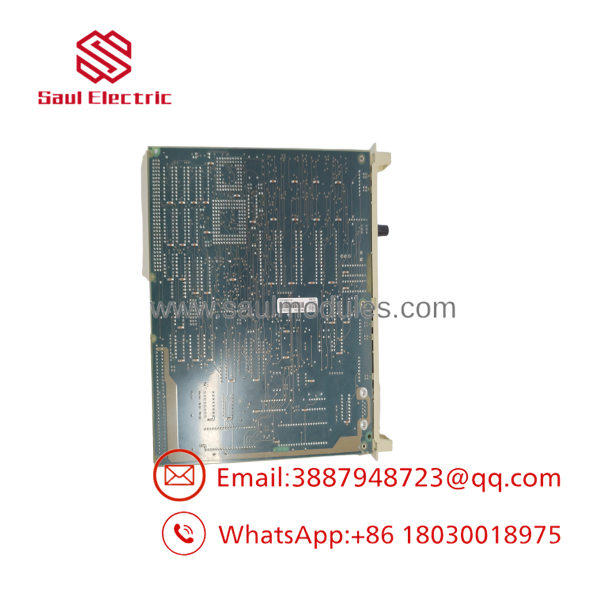

57310001-PK

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB Advant Master racks whenever practical.

• Inbound Inspection
  • Verify ABB labels and product identification.
  • Inspect PCB condition and edge connectors.
  • Check for corrosion, overheating, and unauthorized repairs.
• Live Rig Testing
  • Install the module in a compatible Advant Master chassis.
  • Verify successful initialization.
  • Confirm communication processor startup.
  • Check controller communication status.
• Electrical Parameter Checks
  • Verify supply voltages.
  • Inspect communication circuitry.
  • Test connector continuity.
  • Examine PCB for thermal damage.
• Firmware & Identification Verification
  • Record hardware identification.
  • Verify exchange unit markings where applicable.
  • Confirm customer-requested part number.
• Final QC & Anti-static Packaging
  • Complete functional inspection.
  • Anti-static packaging.
  • Moisture protection.
  • Shock-resistant export packaging.

The Veteran’s Tech Trap Guide

⚠️ Don’t blame the network first.

In our field experience, communication processor failures often look identical to Ethernet or fieldbus problems. Verify the DSCA module before replacing external networking equipment.

⚠️ Photograph every cable before removal.

Advant Master cabinets frequently contain multiple identical communication cables. One misplaced connector can create additional faults that weren’t there before maintenance.

❗ Match the complete part number.

Several DSCA communication modules have similar names but different hardware functions. Always verify 57310001-PK against the installed module and ABB spare-parts documentation.

⚠️ Inspect the backplane connectors.

Oxidized edge connectors can produce intermittent communication errors that mimic processor failures. Clean and inspect the mating connectors before installing a replacement.

Frequently Asked Questions (FAQ)

Q1. What is the ABB 57310001-PK?

The 57310001-PK is the ABB DSCA 190V Communication Processor, designed for Advant Master distributed control systems to manage controller communications.

Q2. Which ABB systems use this module?

It is primarily used in ABB Advant Master DCS installations as a communication processor within the controller rack.

Q3. Can the module be hot-swapped?

No.

Power down the controller rack and follow ABB maintenance procedures before replacing the communication processor. Removing the module while energized can interrupt controller operation and communication.

Q4. What does “Exchange Unit” mean?

An exchange unit is supplied as part of ABB’s exchange program. In many cases, the removed module must be returned according to the supplier’s return authorization requirements.

Q5. Why does replacing the module not always restore communications?

Possible causes include:

• Incorrect hardware revision
• Backplane connector faults
• Controller configuration errors
• Damaged communication cabling
• Other failed communication modules

Replacing the communication processor should always be followed by a complete communication diagnostic.

Q6. What warranty is typically available?

Most professional industrial surplus suppliers provide a 12-month warranty for tested surplus or refurbished modules. Warranty coverage varies by supplier.

Q7. What should be verified before ordering?

Confirm the following:

• ABB Part Number: 57310001-PK
• Type Designation: DSCA 190V
• Advant Master controller model
• Hardware revision
• Rack location
• Existing communication configuration
• ABB spare-parts documentation

Finally, verify the complete identification label on the installed module before ordering. Legacy Advant Master systems often contain visually similar communication processors that are not interchangeable.
