ABB 5SHX3545L0016 IGCT Power Module for ACS6000 Drives

Description

Product Introduction

The ABB 5SHX3545L0016 is a high-power Integrated Gate-Commutated Thyristor (IGCT) designed for ABB medium-voltage drive systems and industrial power converters. It serves as the primary switching device within the converter power stage, handling extremely high current and voltage in megawatt-class motor control applications.

Unlike standard low-voltage IGBT modules, the 5SHX3545L0016 is intended for demanding converter topologies where switching losses, thermal performance, and surge capability directly affect equipment reliability. Before installation, verify compatibility with the converter’s gate-drive unit, cooling assembly, and approved spare parts list.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s a lesson most medium-voltage drive engineers learn only once.

The converter trips on a power-stage fault. The maintenance crew replaces the IGCT module, restarts the drive, and the replacement fails almost immediately. The real culprit wasn’t the semiconductor—it was a partially blocked cooling circuit that had been running below the required water flow for weeks.

Power semiconductors rarely fail without a reason.

Typical Applications

Mining — Conveyor drive systems — Supports continuous megawatt-class motor operation under heavy load.

Metals Industry — Rolling mills — Handles repeated acceleration and regenerative braking with high current demand.

Power Generation — Boiler feed pumps and ID fans — Provides reliable switching in medium-voltage converter systems.

Oil & Gas — Compressor drives — Delivers dependable converter operation for continuous process equipment.

Cement Industry — Kiln and mill drives — Maintains high-power motor control where downtime is extremely costly.

Field Case Study

A steel mill reported repeated failures on one converter phase of an ACS6000 drive. Electrical testing identified one damaged 5SHX3545L0016, but experienced engineers avoided replacing only the semiconductor.

They inspected the cooling plate, measured water flow, verified gate-driver synchronization, renewed the thermal interface material, and checked busbar torque before installing the replacement. The converter returned to full production and operated without recurring faults, confirming that the failed IGCT had been the result—not the cause—of the original problem.

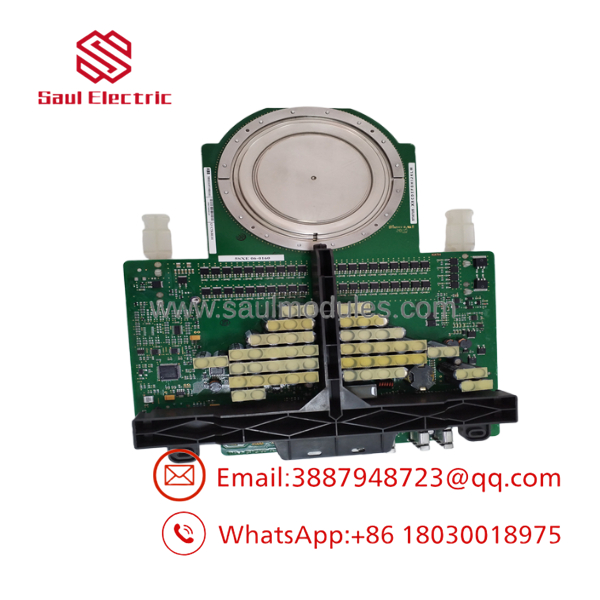

5SHX3545L0016

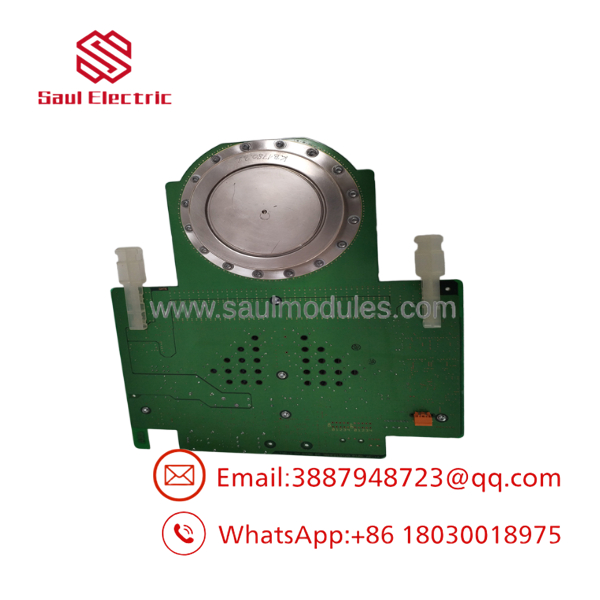

5SHX3545L0016

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB medium-voltage drive platforms whenever practical.

• Inbound Inspection
  • Verify ABB identification markings and manufacturing codes.
  • Inspect ceramic housing and pressure-contact surfaces.
  • Check for cracks, chips, or previous installation marks.
• Live Rig Testing
  • Verify compatibility with the intended gate-drive assembly.
  • Confirm optical trigger interface where applicable.
  • Inspect mechanical fit within the converter assembly.
• Electrical Parameter Checks
  • Insulation resistance testing.
  • Terminal continuity verification.
  • Visual examination for thermal stress and discoloration.
  • Contact surface inspection.
• Hardware Verification
  • Record hardware identification.
  • Verify associated ABB spare part number.
  • Cross-check converter compatibility before shipment.
• Final QC & Anti-static Packaging
  • Final inspection.
  • Moisture-barrier packaging.
  • Shock-resistant export protection.
  • Serialized shipment records.

The Veteran’s Tech Trap Guide

⚠️ Don’t replace the IGCT until you’ve inspected the cooling system.

In our field experience, restricted water flow, contaminated cooling channels, or failed pumps destroy more IGCTs than electrical overloads.

⚠️ Replace the thermal interface material every time.

Reusing old compound creates uneven heat transfer. The module may pass commissioning but fail after several weeks of production.

❗ Follow the specified tightening sequence and torque.

Press-pack semiconductors depend on uniform mechanical pressure. Uneven clamping increases junction temperature and reduces service life.

⚠️ Inspect the gate-drive hardware before energizing.

A faulty optical trigger, damaged gate-driver board, or loose fiber connection can destroy a replacement module within milliseconds.

Frequently Asked Questions (FAQ)

Q1. What is the ABB 5SHX3545L0016?

It is a high-power Integrated Gate-Commutated Thyristor (IGCT) used as the primary switching device in ABB medium-voltage drive and converter systems.

Q2. Which ABB systems typically use this module?

It is commonly associated with ABB ACS6000 medium-voltage drive platforms and related converter assemblies. Always verify the converter’s spare parts documentation before ordering.

Q3. Can the module be replaced while the converter is energized?

No.

The converter must be fully isolated, discharged, and grounded. Medium-voltage equipment can retain hazardous stored energy long after power has been removed.

Q4. Does replacing the IGCT require firmware updates?

Generally, no. However, ABB recommends verifying gate-drive operation, converter diagnostics, cooling performance, and insulation resistance before returning the equipment to service.

Q5. Why is this module considerably more expensive than a standard IGBT?

IGCT devices are engineered for medium-voltage converters operating at megawatt power levels. Their voltage capability, current handling, thermal characteristics, and press-pack construction are substantially more demanding than conventional low-voltage semiconductor modules.

Q6. What warranty is typically available?

Most industrial surplus suppliers provide a 12-month warranty covering functional defects after installation. Warranty terms vary by supplier.

Q7. What should be verified before ordering?

Confirm the following:

• ABB Model: 5SHX3545L0016
• Associated Spare Part Number (if applicable)
• Converter model and serial number
• Hardware revision
• Gate-drive compatibility
• Cooling assembly configuration
• Official ABB spare parts documentation

Finally, compare the converter serial number with the OEM spare parts list before installation. On a medium-voltage drive, installing the wrong IGCT can turn a planned maintenance outage into a major production interruption.
